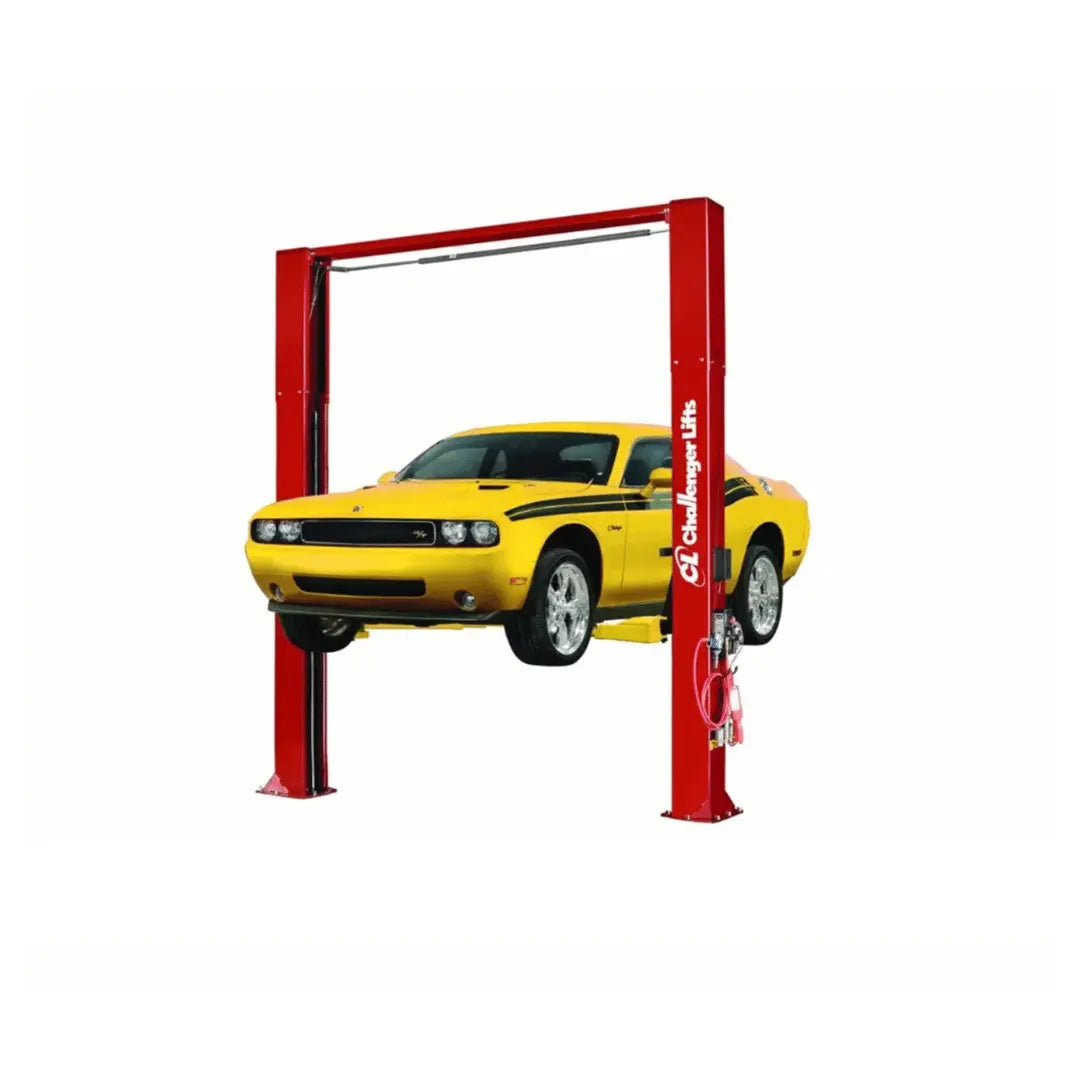

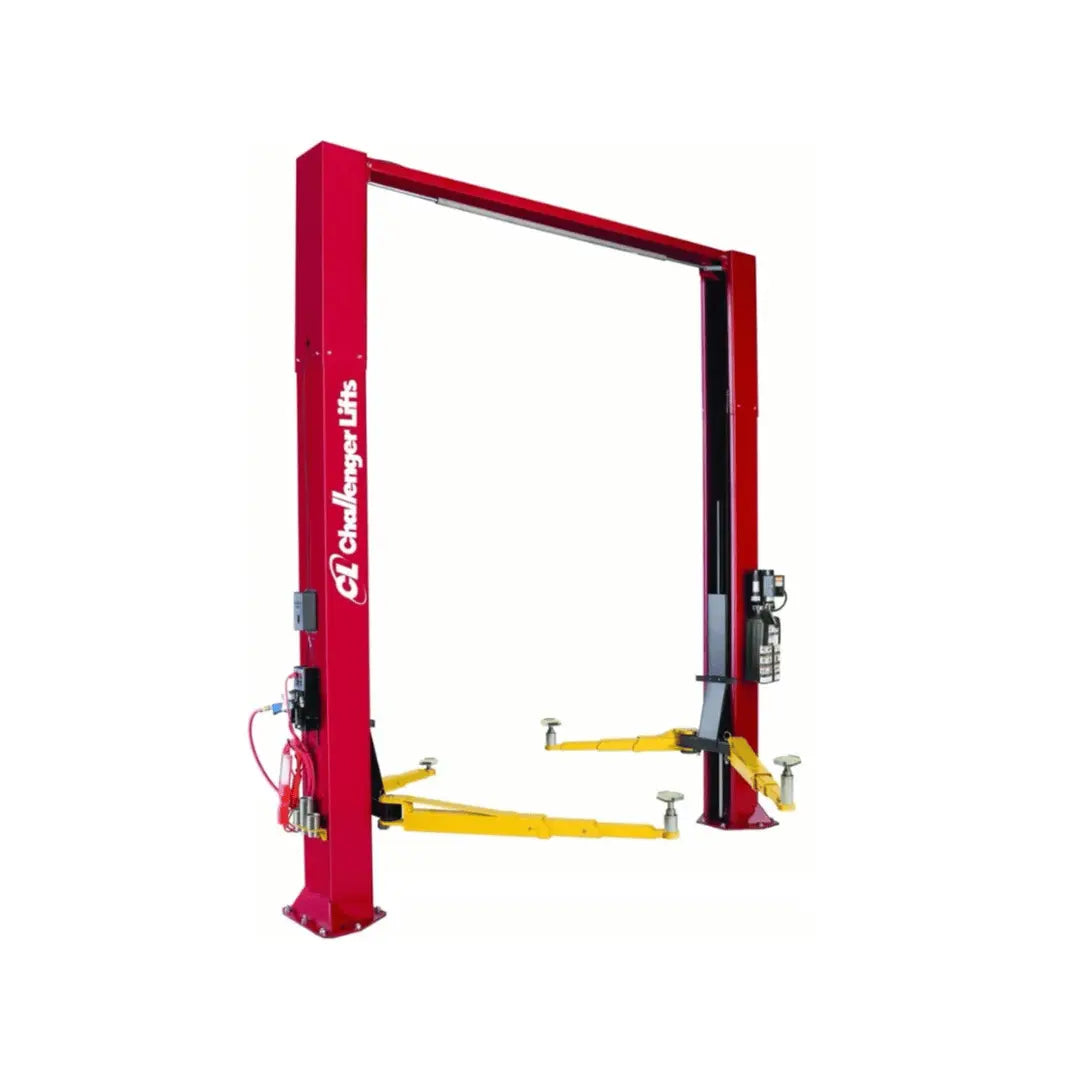

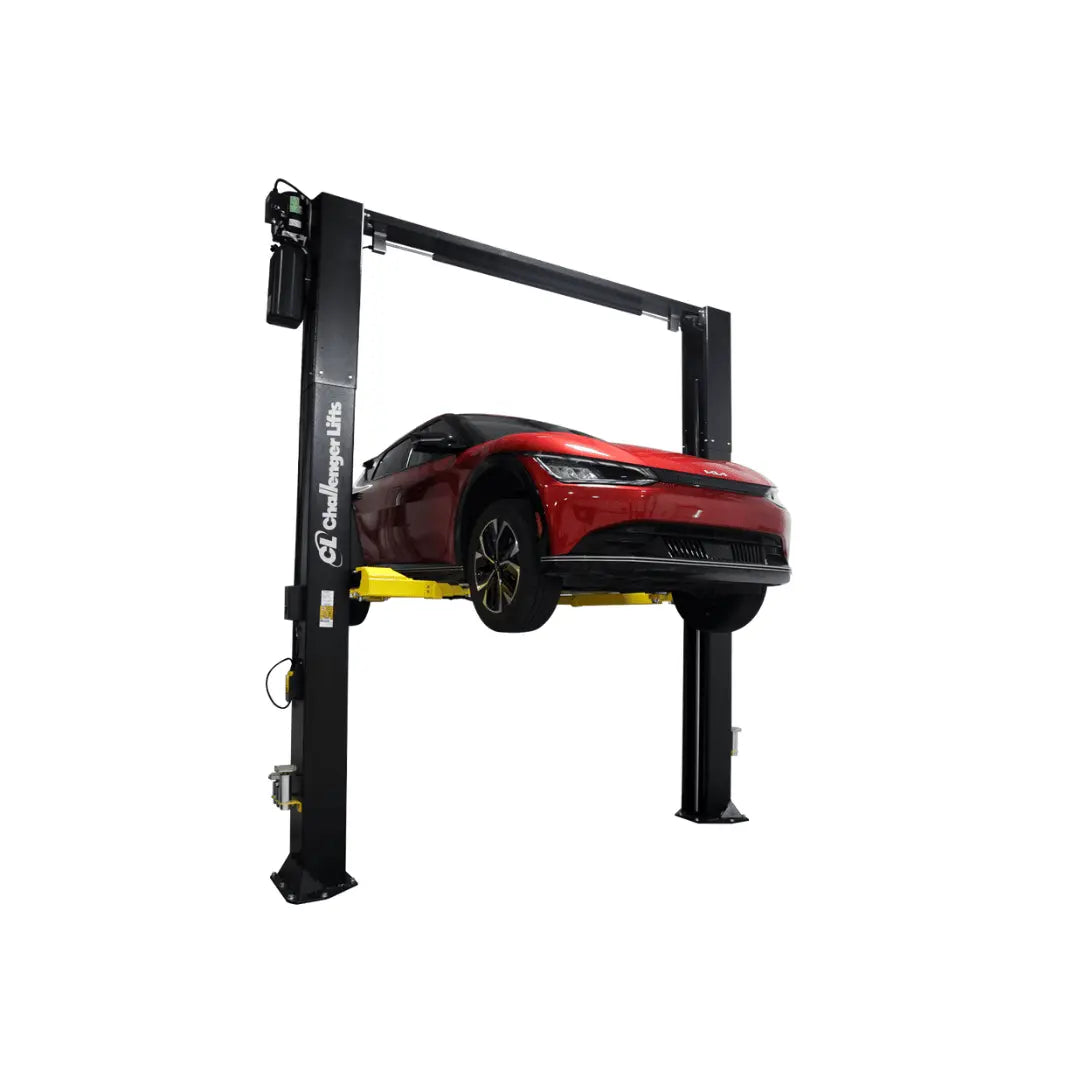

Challenger Lifts CL10AV3 (MADE IN USA) 10000 lbs Versymmetric® Adjustable 2 Post Lift
Regular price $7,290.92 Sale price $4,010.01 Save 45%
Challenger Lifts CL10AV3 10000 lbs Versymmetric® Adjustable 2 Post Lift
The Challenger CL10V3 10,000 lbs. Versymmetric Adjustable 2-Post Lift is designed to offer maximum flexibility and efficiency for automotive service shops. With a 10,000 lb. lifting capacity, this lift can accommodate a wide range of vehicles, making it ideal for diverse service needs. The CL10V3 features Challenger’s innovative Versymmetric technology, allowing it to function both as a symmetric and asymmetric lift.
This dual capability makes it easy to position vehicles for optimal access, whether for routine maintenance or more complex repairs. The lift’s adjustable height, which can reach up to 11' 10-5/8", provides ample clearance, while its spacious drive-thru clearance makes maneuvering in and out of the lift hassle-free.
The 3-stage front arms and 2-stage rear arms make it versatile enough to accommodate various vehicle sizes, from small sedans to larger trucks. With a design focused on durability and ease of use, the CL10V3 is an excellent choice for shops looking to boost productivity and adapt to the needs of different vehicles.
Product Features
- 10,000 lbs. lift capacity
- Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential
- Oversized 5 in. diameter pulley and heavy duty 5/16 in. cable reduces stress on equalization system and increases cable life
- 48 in. elongated carriage design increases lift life
- Three settings for width adjustment, from 11′ 6.5″ to 12′ 6.5″
- Standard model fits 12 foot ceiling height. Additional 2 foot or 3 foot extensions available
- Padded overhead shut off system prevents vehicle damage

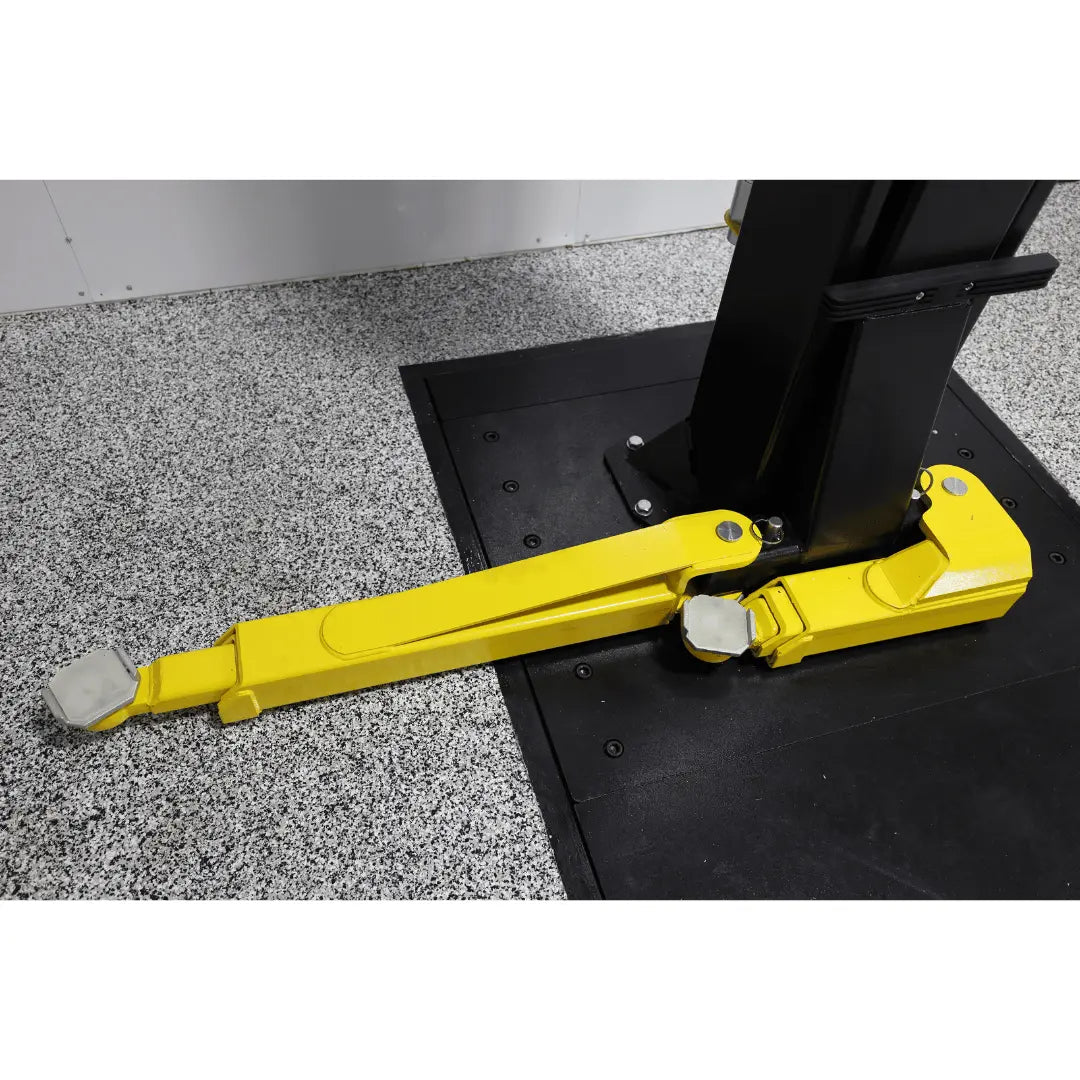

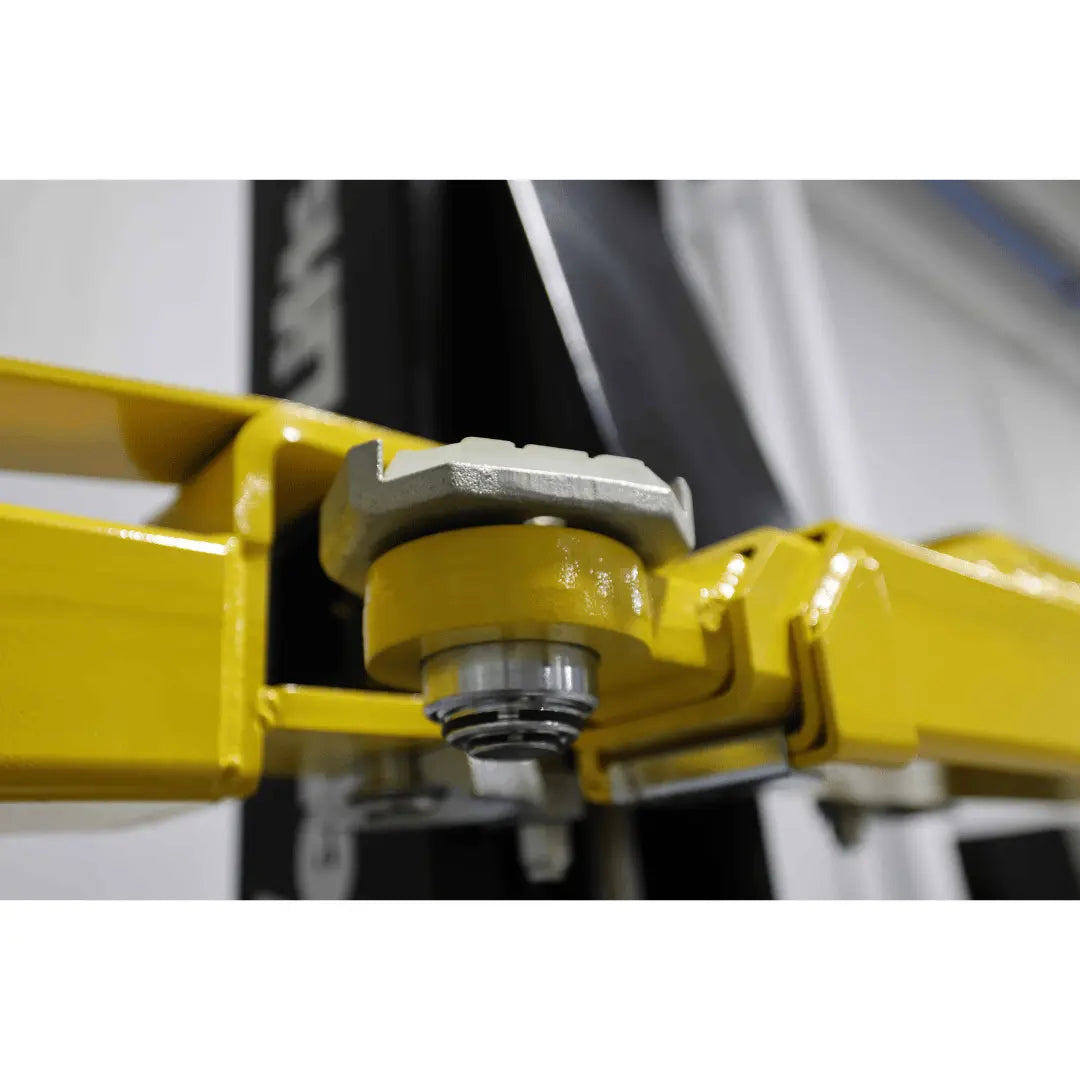

- Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
- Fully gusseted base plate design increases column rigidity

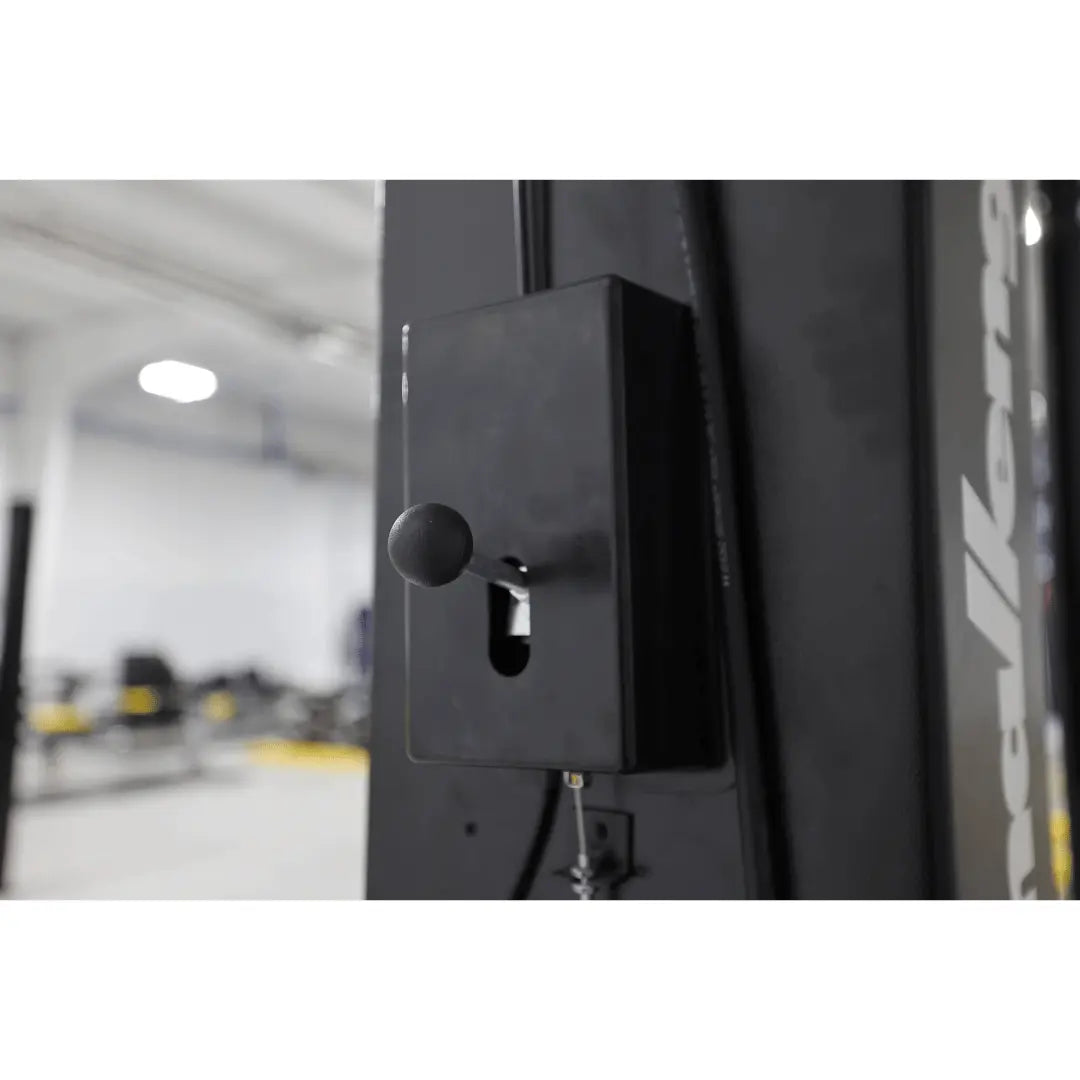

- Pulley-less jacketed single-point lock release system makes for smoother, easier operation and longer life
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Premium powder coat finish provides long-lasting durability
Product Specifications
| Model | CL10AV3 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Lift Configuration | Standard |
| Arm Configuration | 3-Stage Front/Rear |
| Rise Height | 74.125” |
| Overall Height | 11' 2" or 11' 8" |
| Overall Height (Cylinder Extended) | 11' 11" |
| 2’ Height Extension Available | Yes |
| 3’ Height Extension Available | Yes |
| Overall Width | 11' 6.5" / 12' .5" / 12' 6.5" |
| Drive-Thru Clearance | 100" / 106" / 112" |
| Floor to Overhead Switch | 10' 8.5" - 11' 2.5" |
| Front Arm Reach | 20” - 42” |
| Rear Arm Reach | 37.625” - 60” |
| Screw Pad Height | 3.875” - 6.125” |
| Inside Columns | 110" / 116" / 122" |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise | 38s |
| Ceiling Height Required | 12' |
| ALI/ETL Certified | Yes |

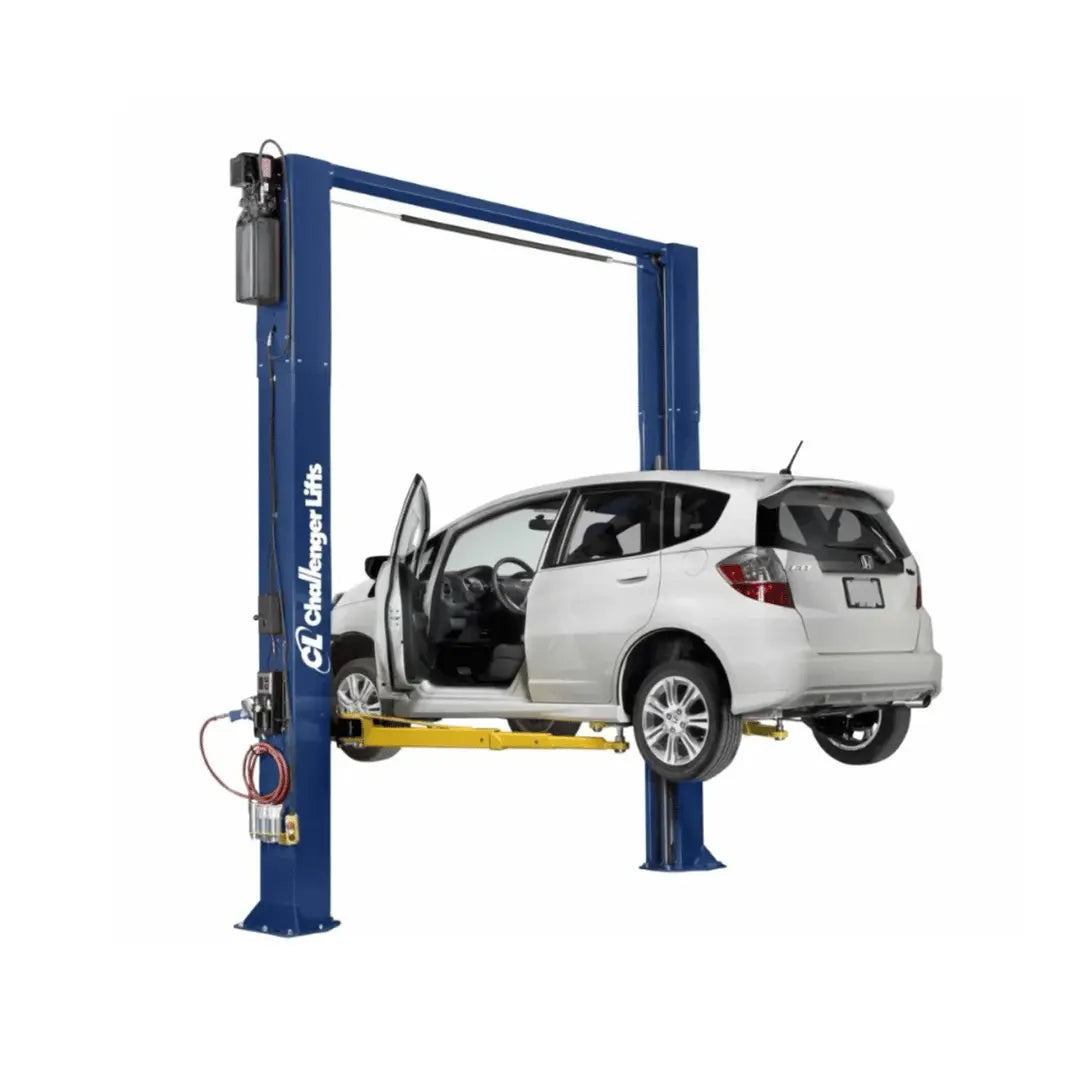

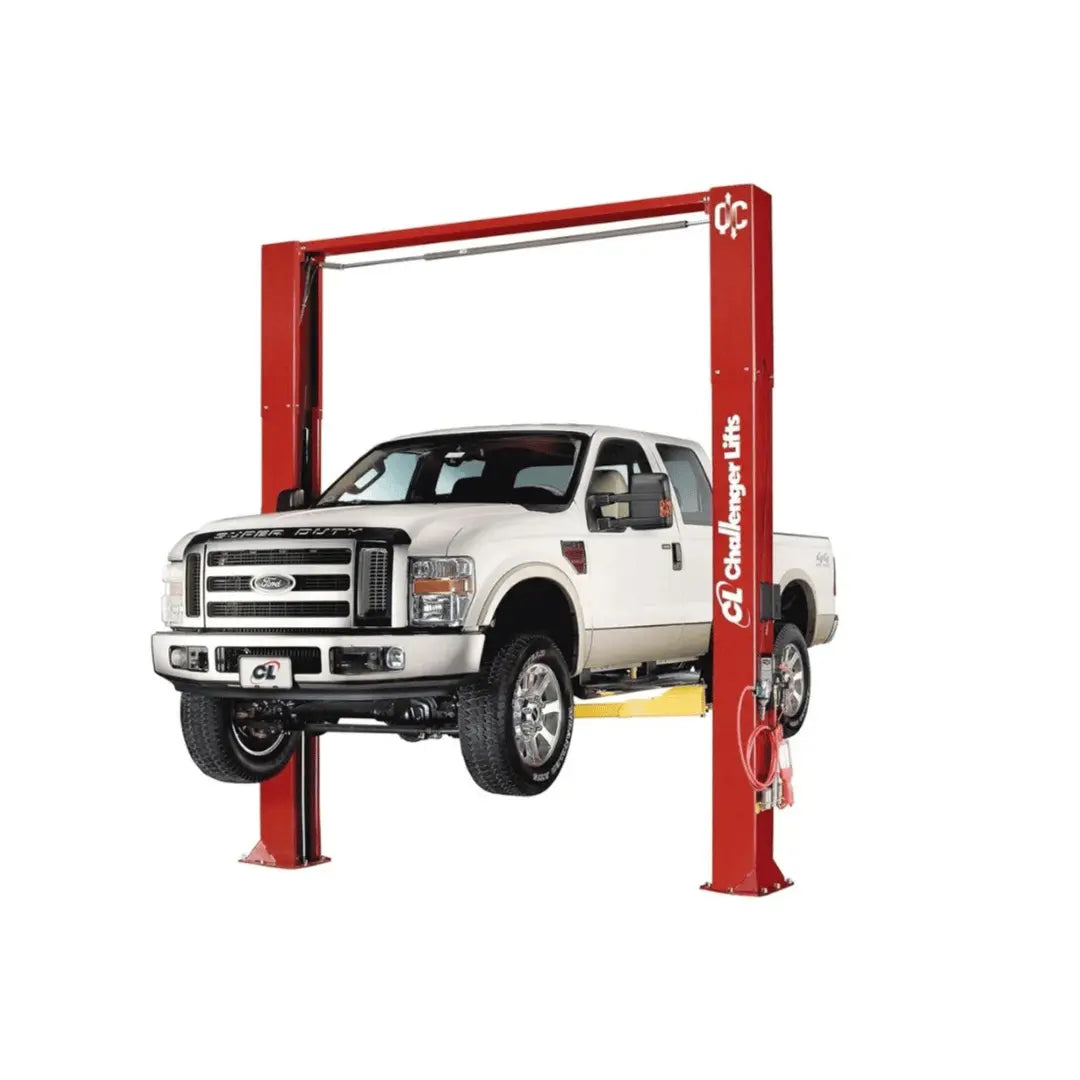

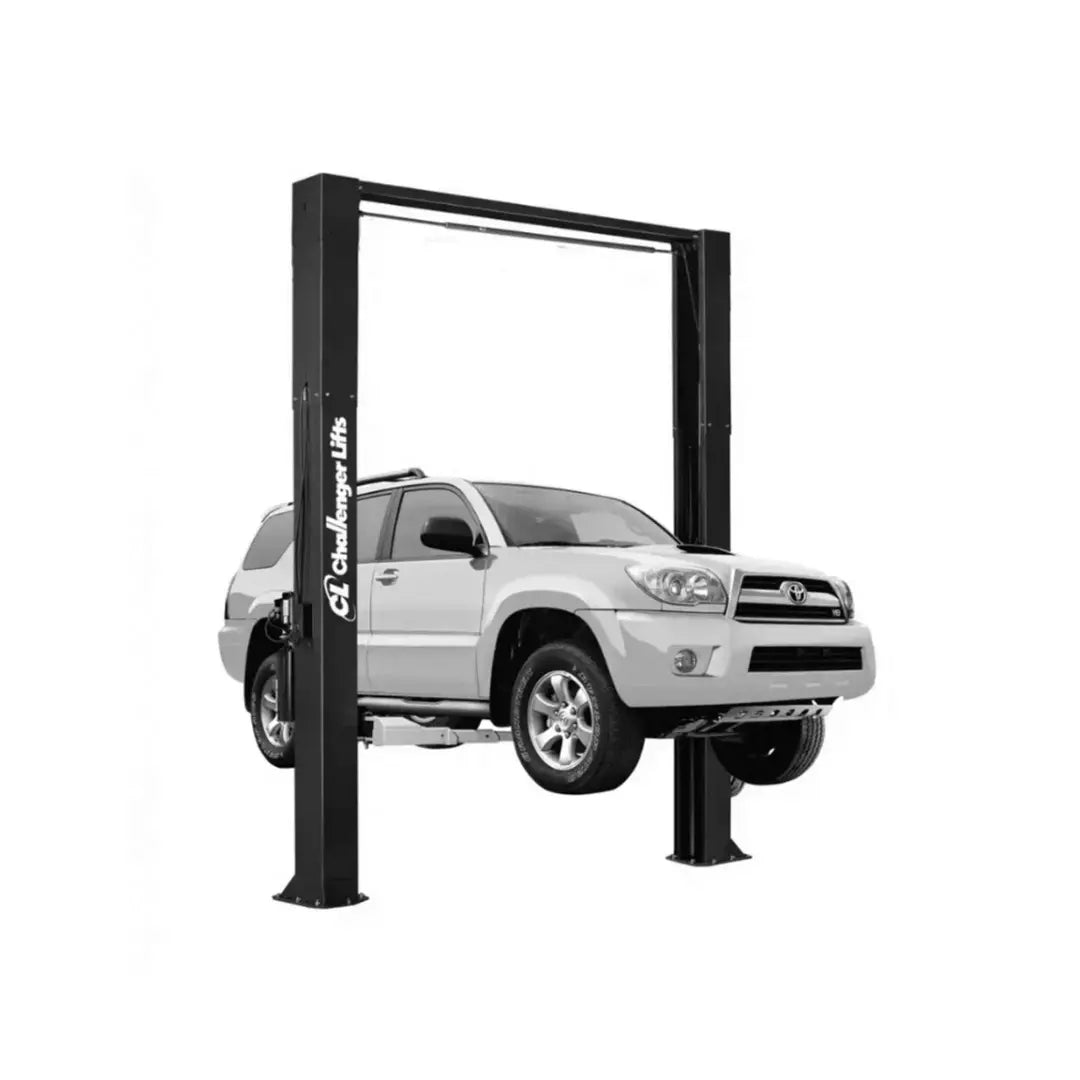

| Colors Available | Red, Blue, Black |
