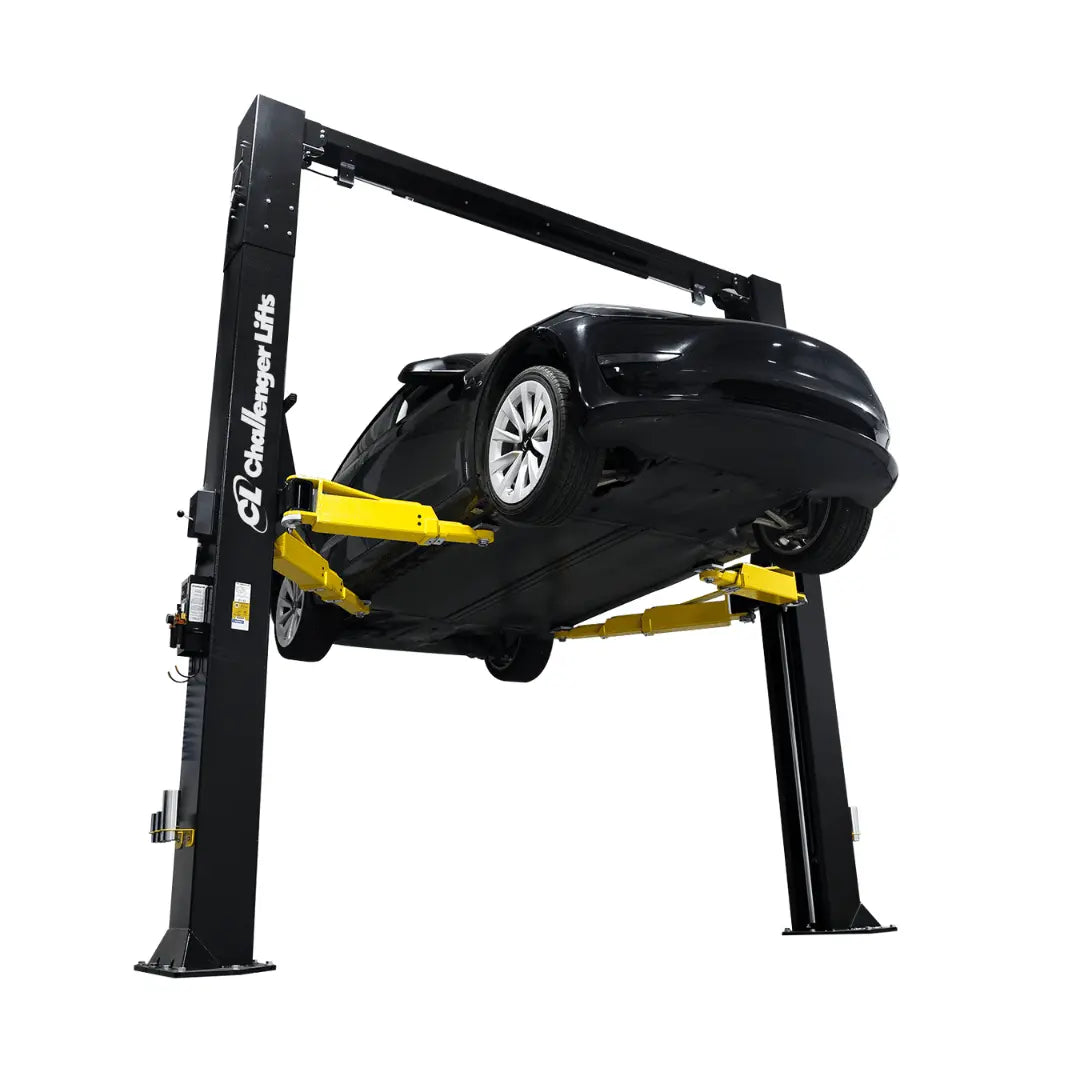

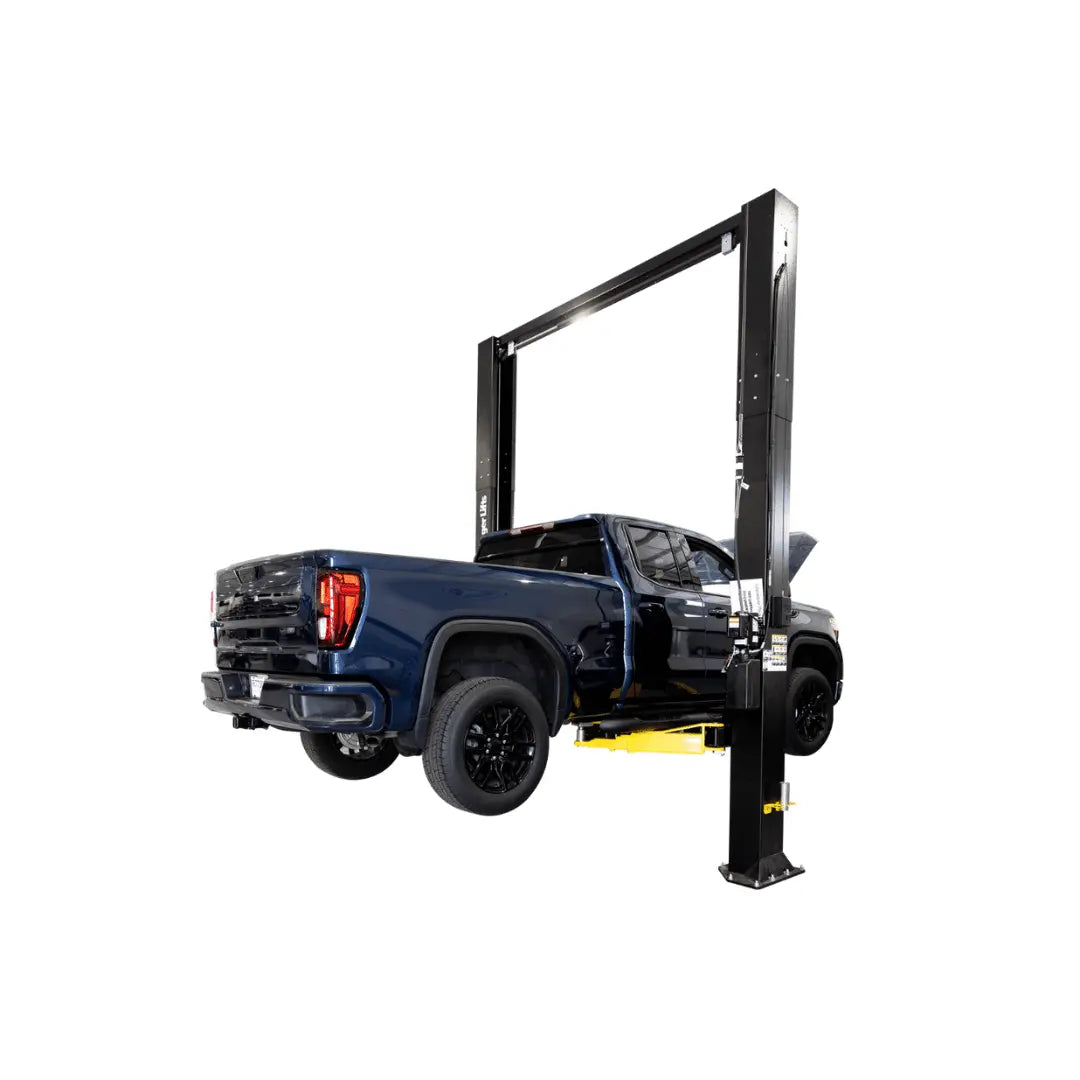

Challenger Lifts CL12A-1 Heavy-Duty Adjustable 2 Post Lift
Regular price $11,612.00 Sale price $6,386.60 Save 45%
CL12A-1: The Next-Level 12K Adjustable 2 Post Lift – Now 1" Taller
Our CL12A-1 is the latest evolution of our best-selling 12K adjustable 2 post lift, designed to bring more capability, flexibility, and efficiency to your shop. Building on the trusted performance of the CL12A, this upgraded version stands 1" taller, giving you extra clearance for working with taller vehicles and improving overall accessibility for technicians. With adjustable height and width settings, it adapts easily to a variety of shop layouts, making it perfect for servicing everything from compact cars to heavy-duty trucks, vans, SUVs, and the newest electric vehicles—all in a single bay.

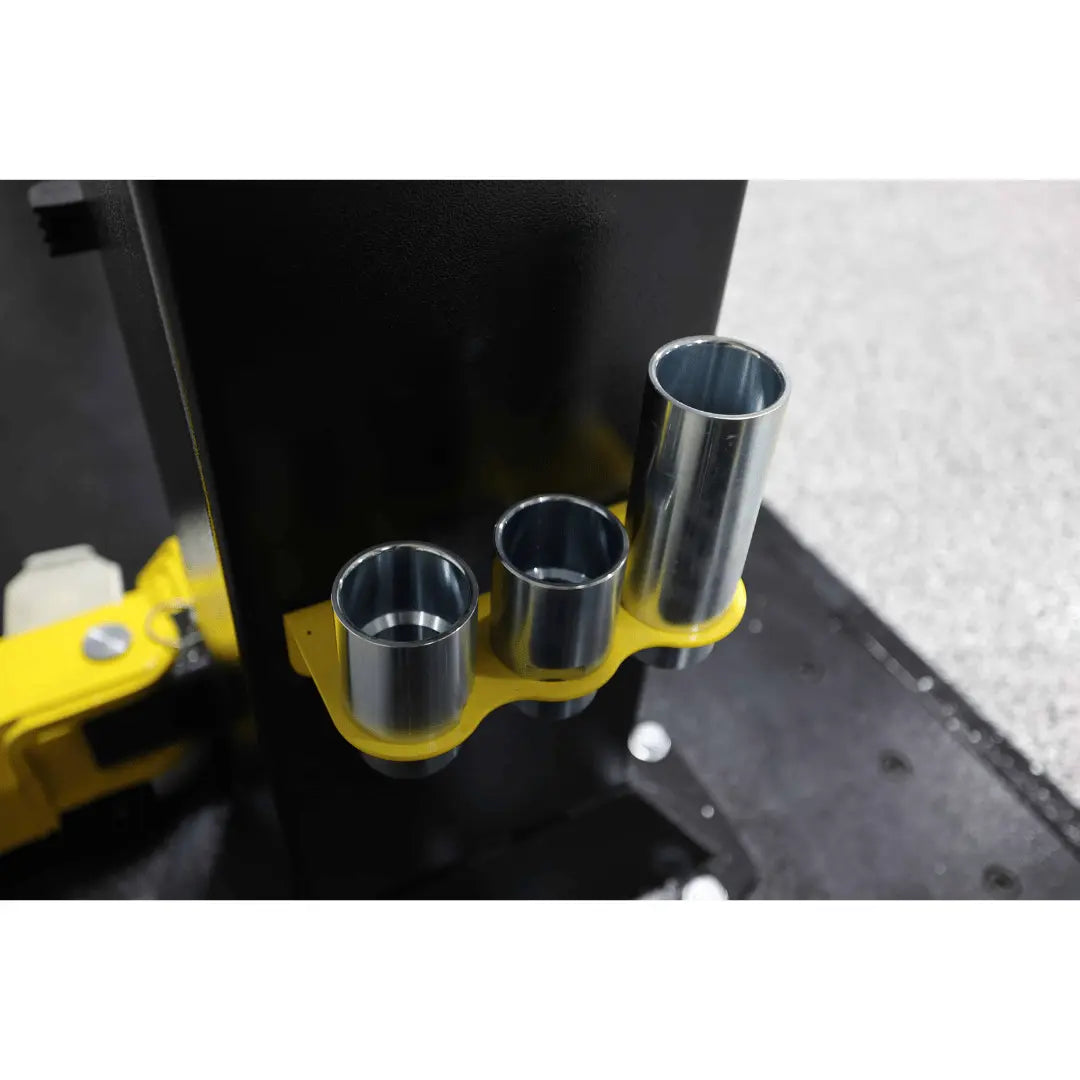

Precision-engineered 3-stage front and rear arms, premium telescoping footpads, and a standard Stack Adapter Kit (P/N 10315) make switching between vehicle types fast and seamless, ensuring your workflow stays smooth and efficient. For shops with height restrictions, the CL12A-LC variant offers the same premium features in a shorter configuration, proving that space limitations don’t have to limit capability. Every CL12A-1 lift carries ALI® Certification, ensuring compliance with the most rigorous safety and performance standards, so you can invest with confidence knowing you’re getting a lift built for reliability, safety, and long-term value.
Product Features

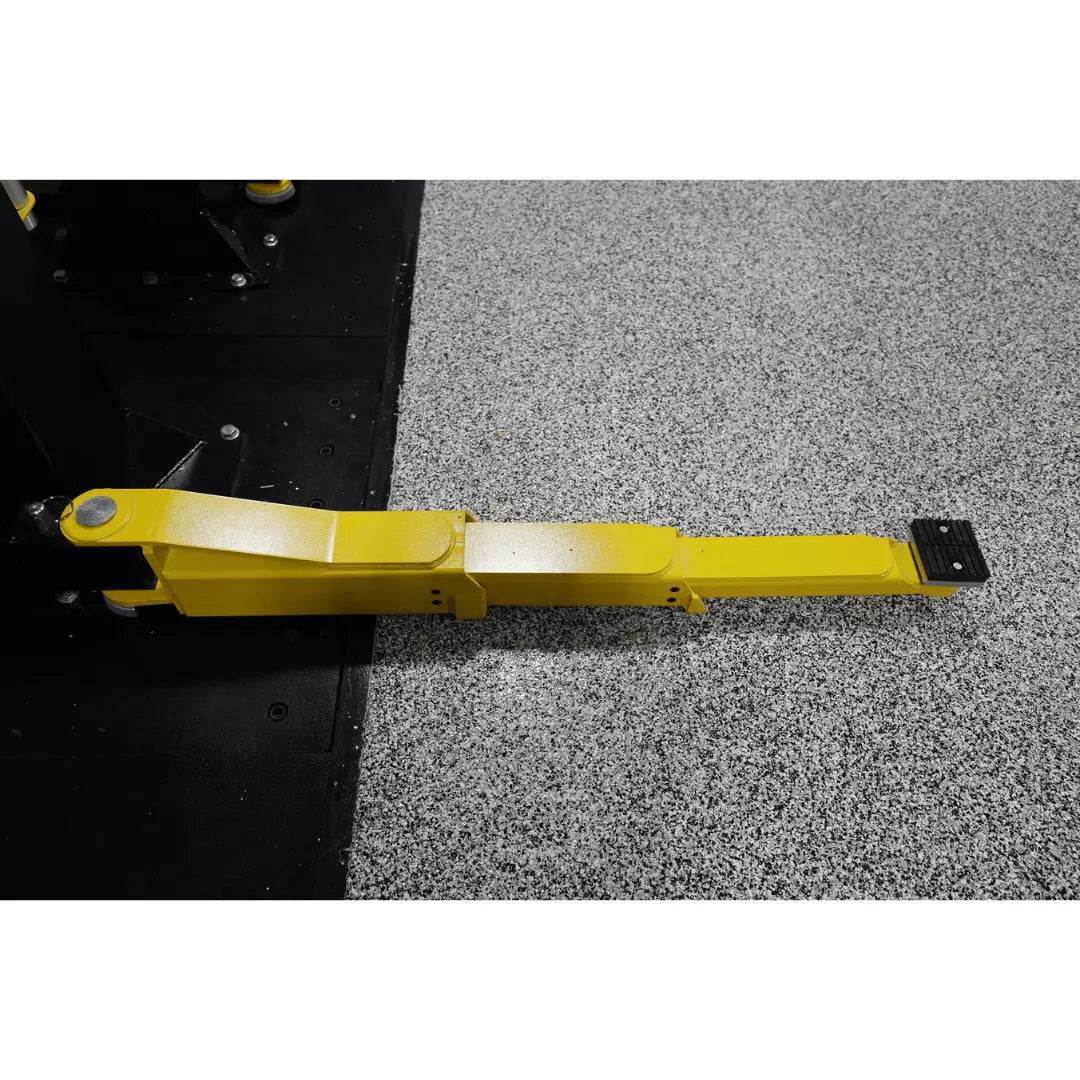

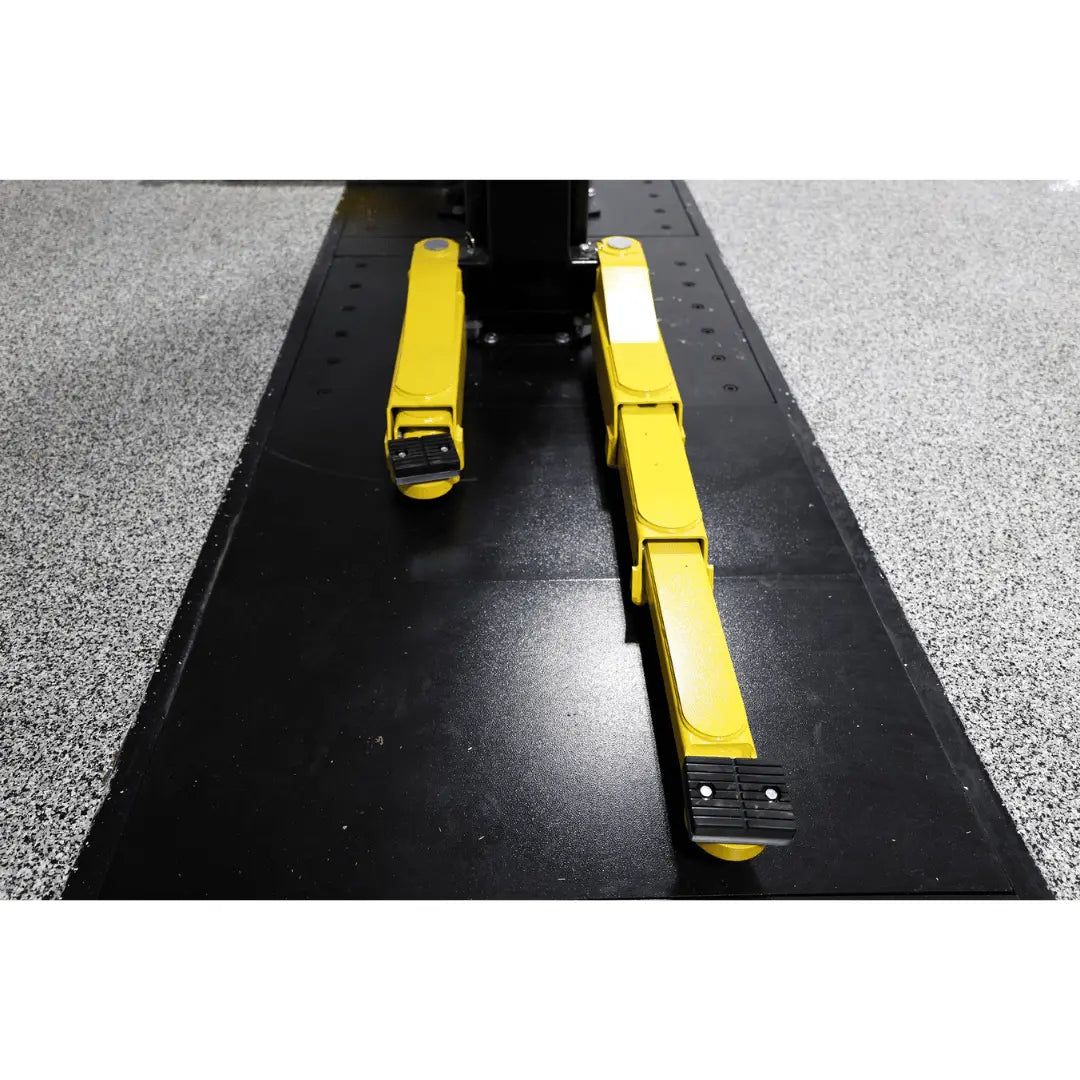

- 3-Stage Front & Rear arms
- Adjustable width from 11′ 10″ to 12′ 10″
- Designed to service electric and other wider vehicles when combined with TFPK footpad kit
- 1′ and 2′ Column Extensions available
- Low-Ceiling model available with column height of 11′ 11″
Product Specifications
| Model | CL12A-1 |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Lift Configuration | Symmetric |
| Arm Configuration | 3-Stage Front/Rear |
| Rise Height | 84.75" |
| Overall Height | 14' 2" or 14' 8" |
| Adjustable Width Overall | 142" / 148" / 154" |
| Drive-Thru Clearance | 103.5”, 109.5" or 115.5" |
| Floor to Overhead Switch | 13' 8" or 14' 2" |
| Arm Reach (Min.) | 27.5” |
| Arm Reach (Max.) | 59” |
| Screw Pad Height* | 4.75" - 6.625" |
| Inside Columns | 114.5" / 120.5" / 126.5" |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Speed of Rise (approximate) | 63s |
| Ceiling Height Required | 15' 3" Minimum |
| ALI Certified | Yes |
| Colors Available | Red, Blue, Black |
Pick Up and Delivery
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
