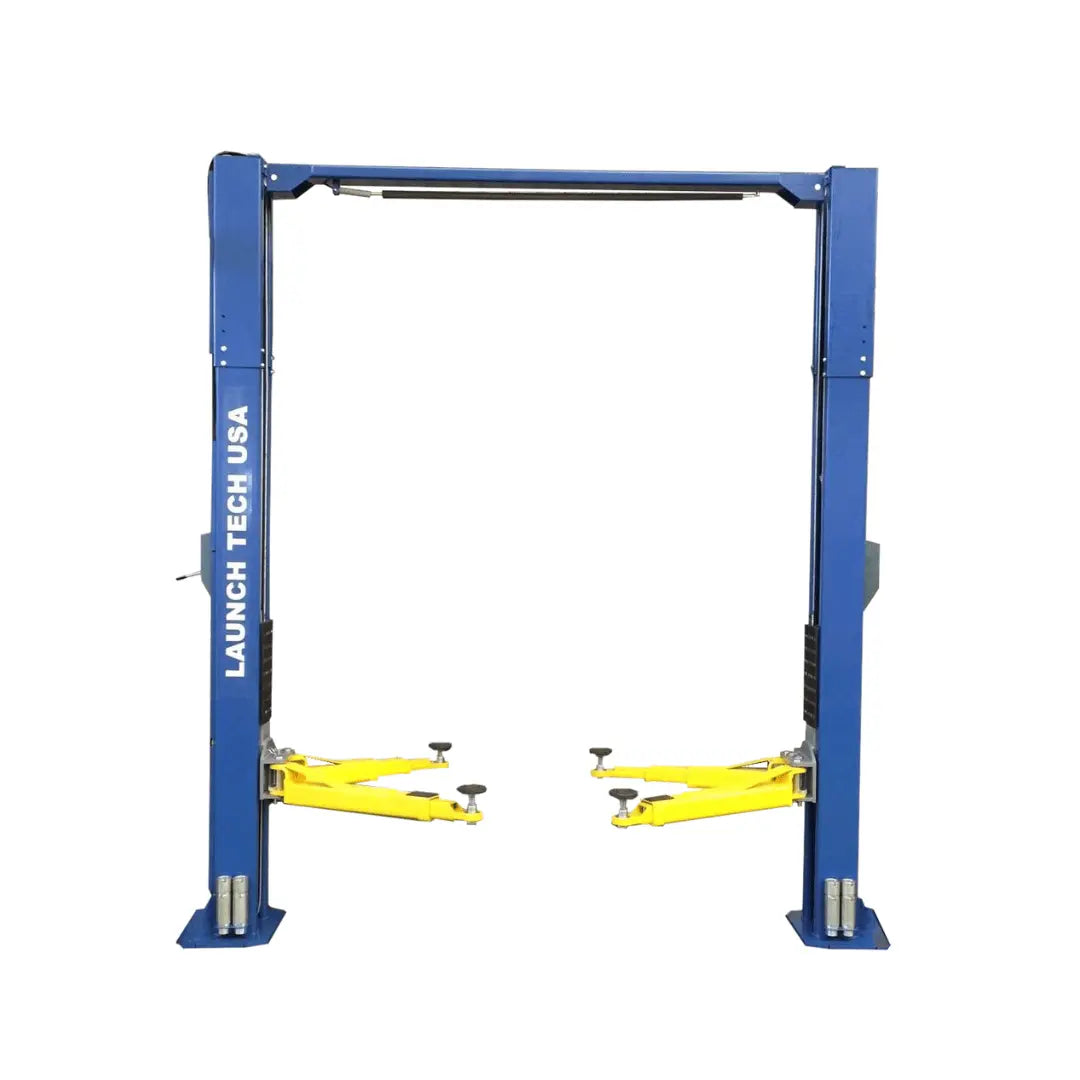

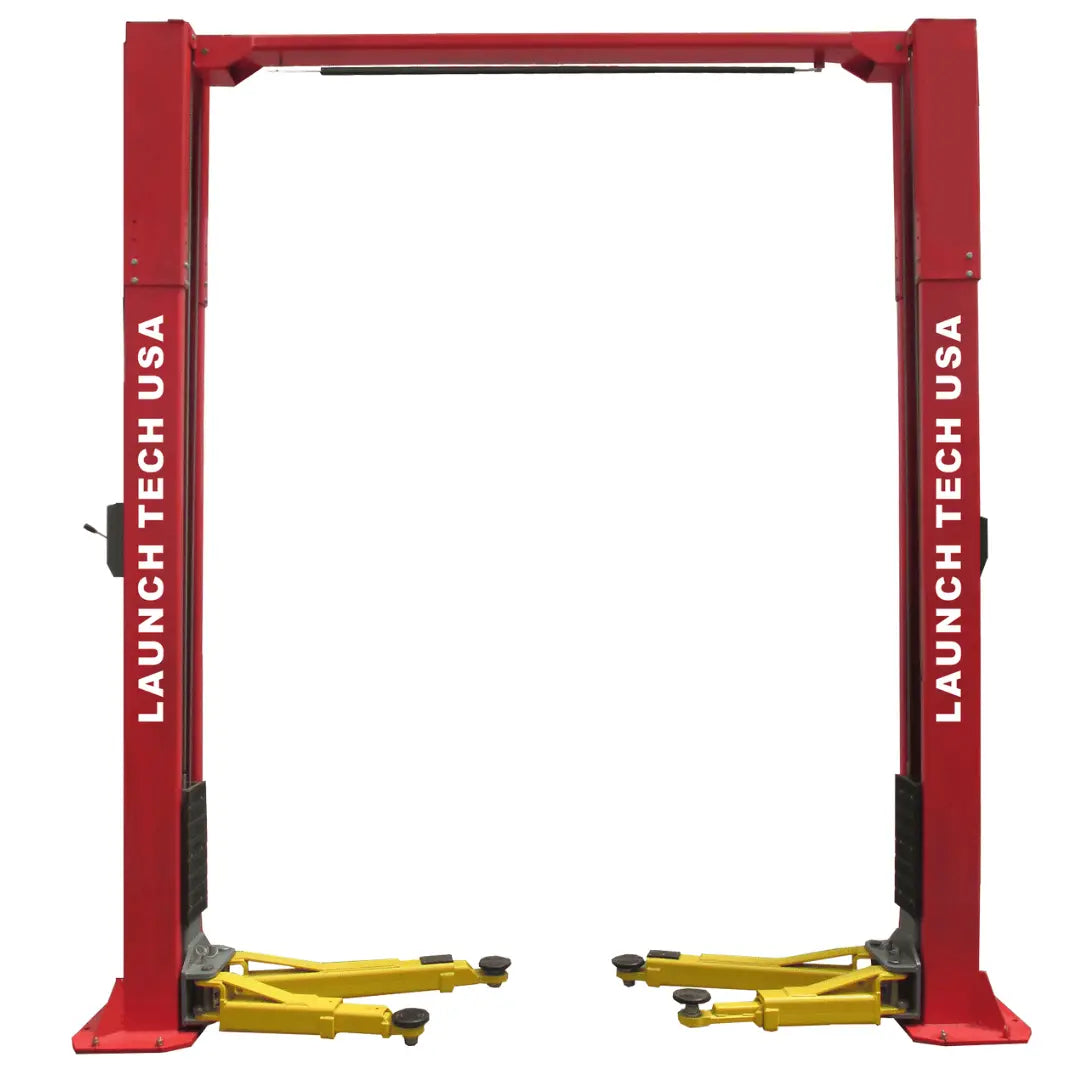

Launch Tech USA – TLT211-AS 11,000 lb 2 Post Clear Floor
Regular price $6,099.00 Sale price $3,354.45 Save 45%
Shipping calculated at checkout.
Launch Tech USA – TLT211-AS 11,000 lb 2 Post Clear Floor

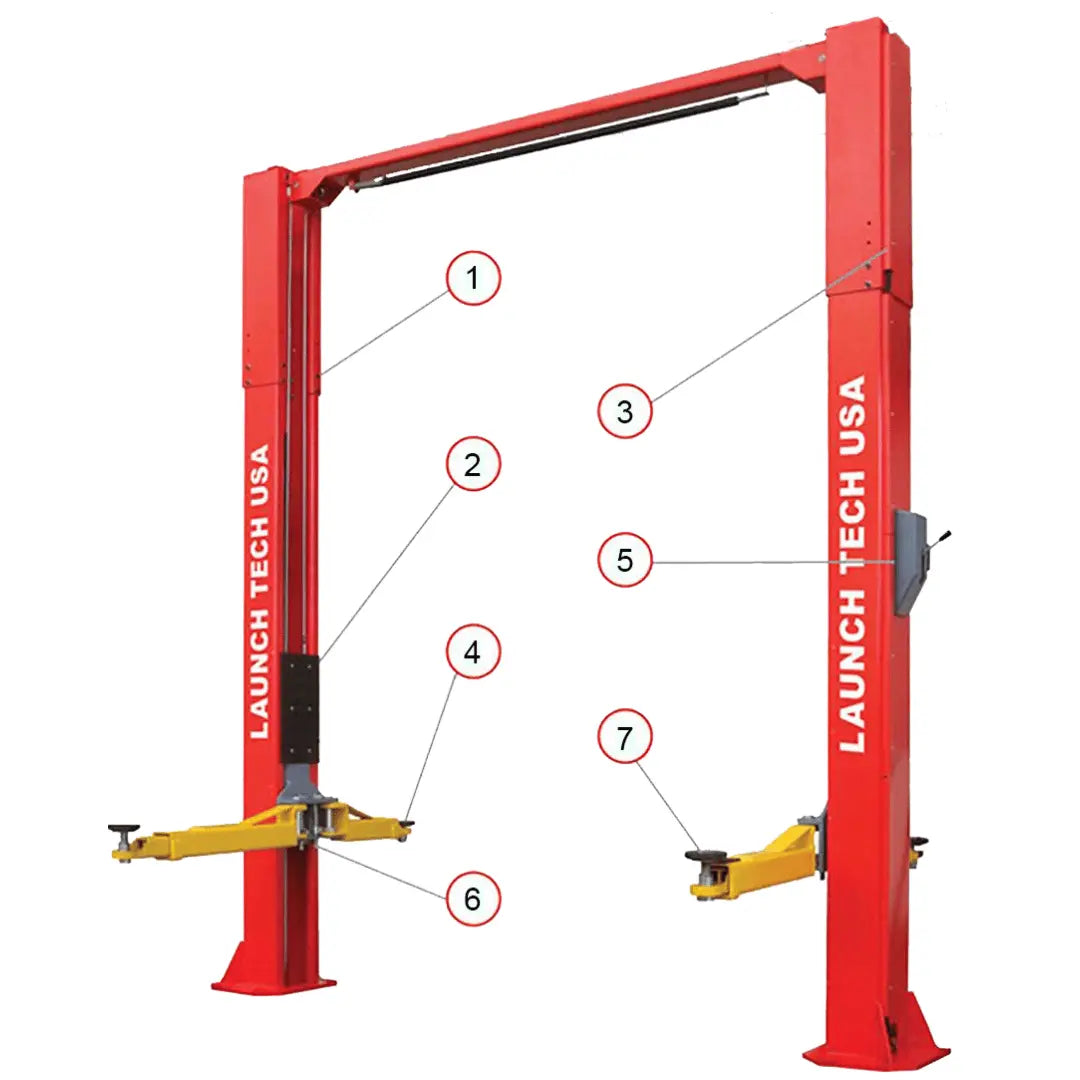

Product Features
- ALI certified
- 11,000 lbs Capacity
- Direct Drive cylinders
- Rubber Door Guards
- Outer Hose Guards
- Single Point Lock Release
- Heavy Duty Arm Restraint System
- Double Telescoping Screw Pads
- Adjustable Column Height
- Standard Asymmetric Columns
- Stackable Pad Extensions
- 3 Stage Front Arms

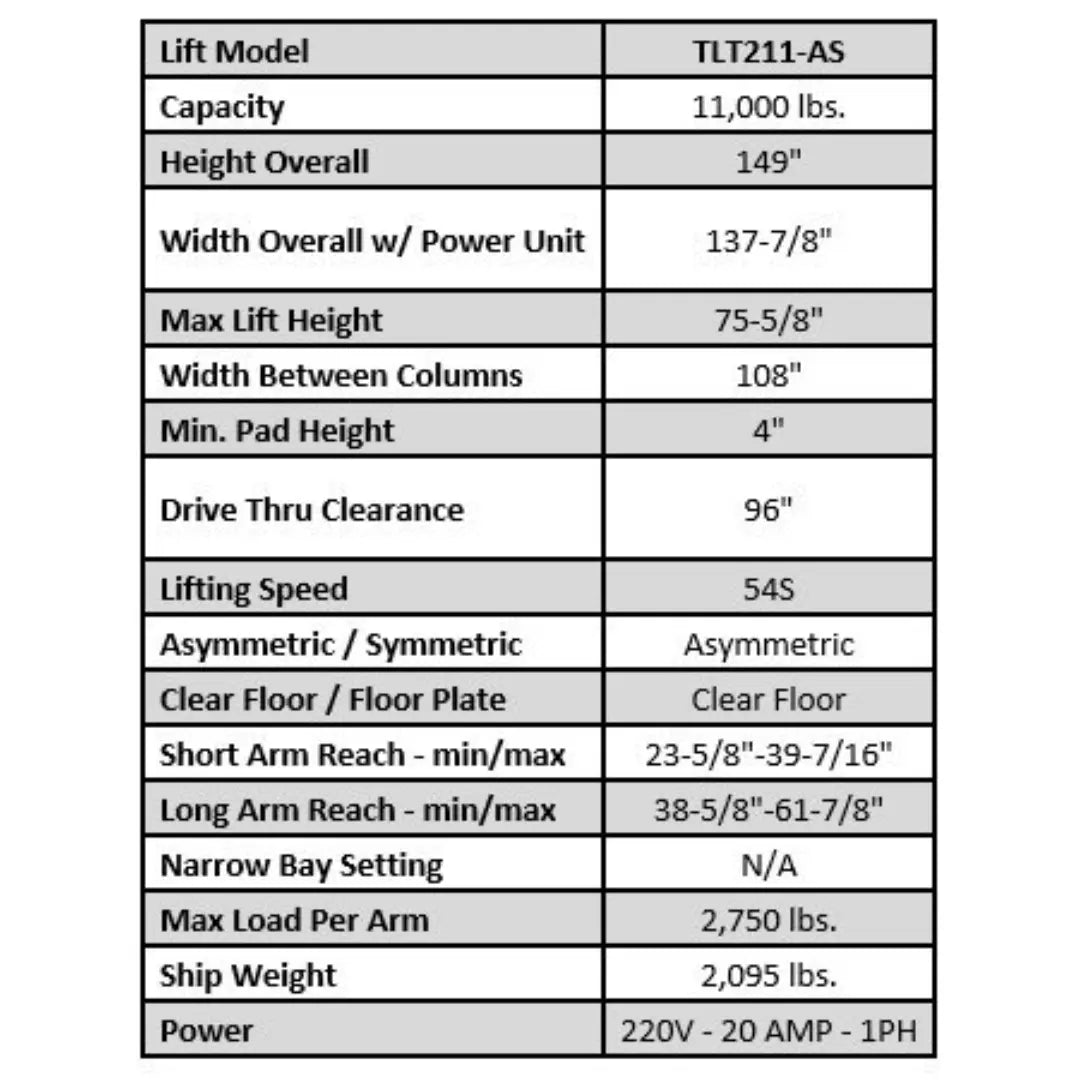

Product Specifications
| Lift Model | TLT211-AS |
|---|---|
| Capacity | 11,000 lbs |
| Height Overall | 149″ |
| Width Overall w/ Power Unit | 137-7/8″ |
| Max Lift Height | 75-5/8″ |
| Width Between Columns | 108″ |
| Min. Pad Height | 4″ |
| Drive Thru Clearance | 96″ |
| Lifting Speed | 54S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 23-5/8″ – 39-7/16″ |
| Long Arm Reach – min/max | 38-5/8″ – 61-7/8″ |
| Max Load Per Arm | 2,750 lbs |
| Ship Weight | 2,095 lbs |
| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Tuxedo are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Marshalltown, Iowa - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
