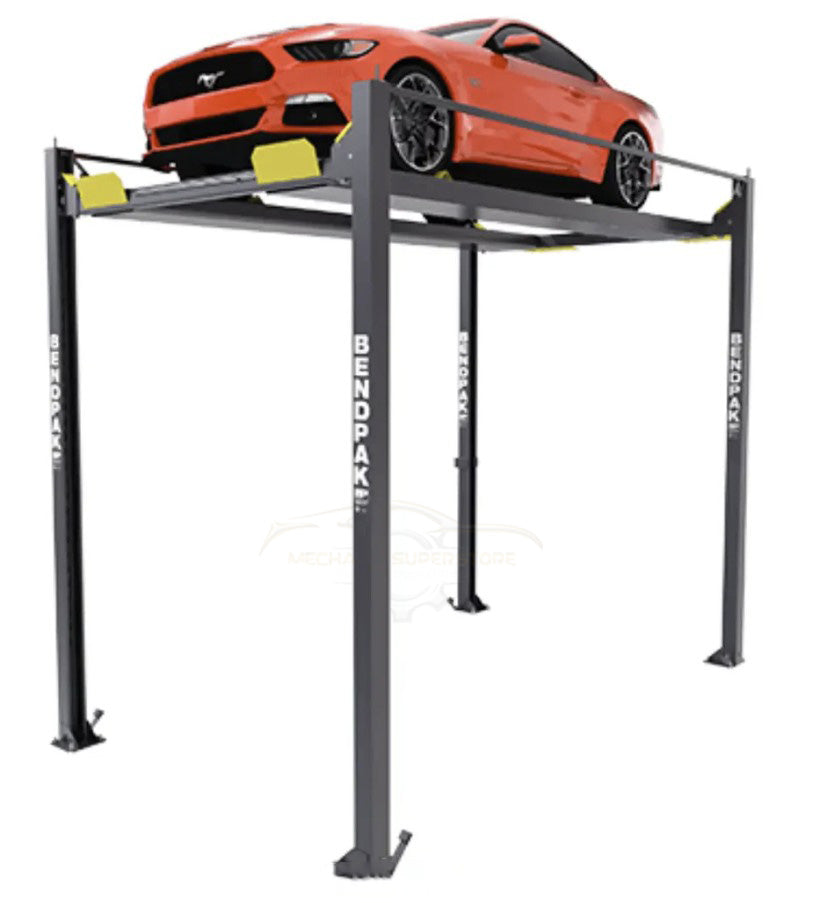

BendPak HD-7PXW 7,000 lb. 4 Post Lift
Regular price $9,695.00 Sale price $5,332.25 Save 45%
BendPak HD-7PXW 7,000 lb. 4 Post Lift
7,000-lb. Capacity / Super-Tall Four-Post Lift / Vehicle Display Platform

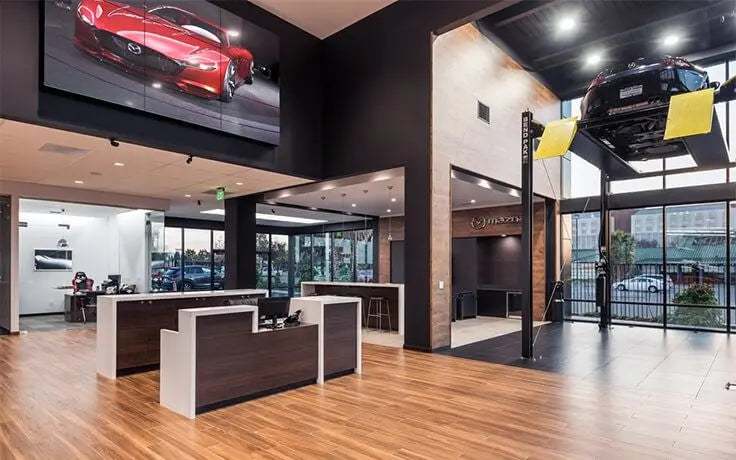

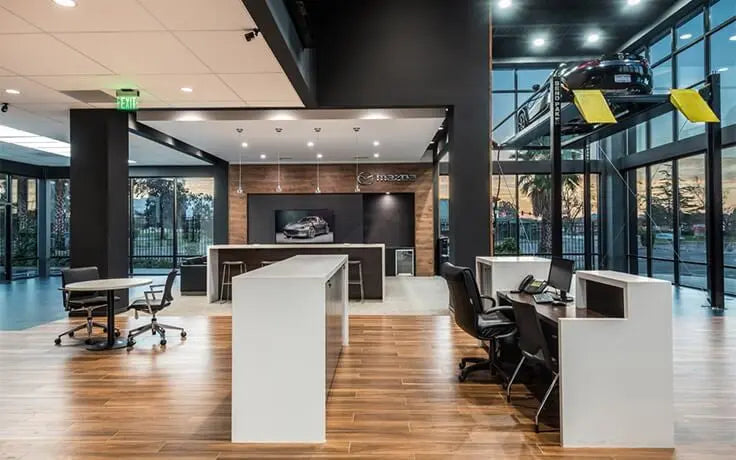

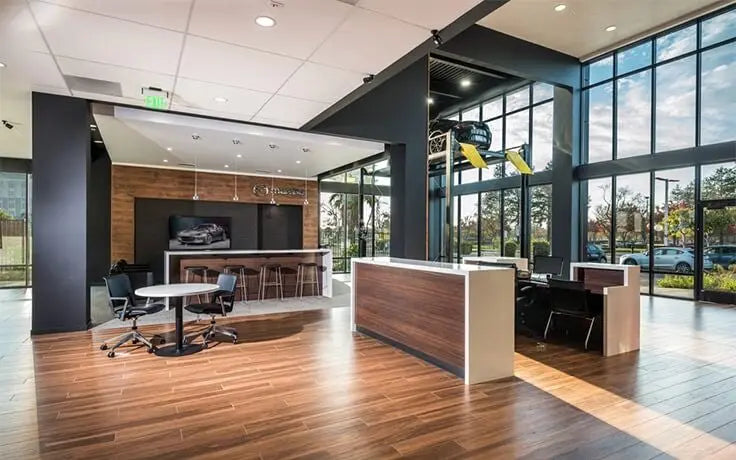

The HD-7PXW 4 Post Lift is a high-rise platform designed for both vehicle service and display applications. With a 7,000-lb. lifting capacity and extended 188” runways, it accommodates a wide range of vehicle sizes and wheelbases. Its extra-tall lifting height provides more vertical clearance than standard models, making it well-suited for stacking taller vehicles or showcasing inventory in a dealership setting.
This 4 post car lift includes the same safety and convenience features found across the BendPak lineup. A one-touch pneumatic release system disengages all column locks simultaneously, while a single hydraulic cylinder positioned beneath the power-side runway delivers smooth lifting.
Heavy-duty components such as aircraft-quality cables, self-lubricating rollers, and internal anti-sway slider blocks are built in for durability and stability. Multi-position safety locks, adjustable lock ladders, and non-skid ramps further enhance usability and safety.
Product Features
- 7,000-lb. maximum lifting capacity
- Super tall rise delivers 12-feet of lifting height
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8” aircraft cable
- Rugged 1.25” roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Product Specifications
Capacity
| Lifting Capacity: | 7,000 lbs. (3,175 kg) |
| Max. Capacity / Front Axle: | 3,500 lbs. (1,588 kg) |
| Max. Capacity / Rear Axle: | 3,500 lbs. (1,588 kg) |
Rise
| A - Min. Runway Height | 5" (127 mm) |
| B - Max. Rise | 140.25" (3,562 mm) |
| C - Max. Lifting Height | 145.25" (3,689 mm) |
| Lifting Time: | 60 Seconds |
Outside Dimensions
| D - Overall Width | 110.25" (2,800 mm) |
| E - Overall Length | 198" (5,029 mm) |
| F - Overall Length (includes ramps) | 213" (5,688 mm) |
| G - Height of Columns | 158" (4,013 mm) |
| Top Lock Height | 143.82" (3,653 mm) |
Inside Dimensions
| H - Width Between Columns | 100.25" (2,546 mm) |
| I - Drive-Thru Clearance | 86.5" (2,197 mm) |
Runways
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 182.25" (4,629 mm) |
| L - Width Between Runways | 35" (889 mm) or 41" (1,041 mm) |
| M - Runway Centerline | 57" (1,448 mm) or 63" (1,600 mm) |
| N - Outside Edge of Runways | 75.75" (1,924 mm) or 82" (2,083 mm) |
Minimum Wheelbase
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
Locking
| Locking Positions | 31 |
| Lock Spacing: | Every 4" (102 mm) |
Power Unit
| Motor | 208-230 VAC / 50-60 Hz / 1Ph |
| Noise | 45 dB |
Shipping
| Weight: | 2,254 lbs. (1022 kg) |
| Dimensions (LxWxH): | 192" x 22" x 31" (4,876 mm x 558 mm x 787 mm) |
