Challenger Lifts 44040X 40,000 lb Heavy Duty Lift | Chain Driven
Regular price $96,998.52 Sale price $53,349.19 Save 45%
Shipping calculated at checkout.

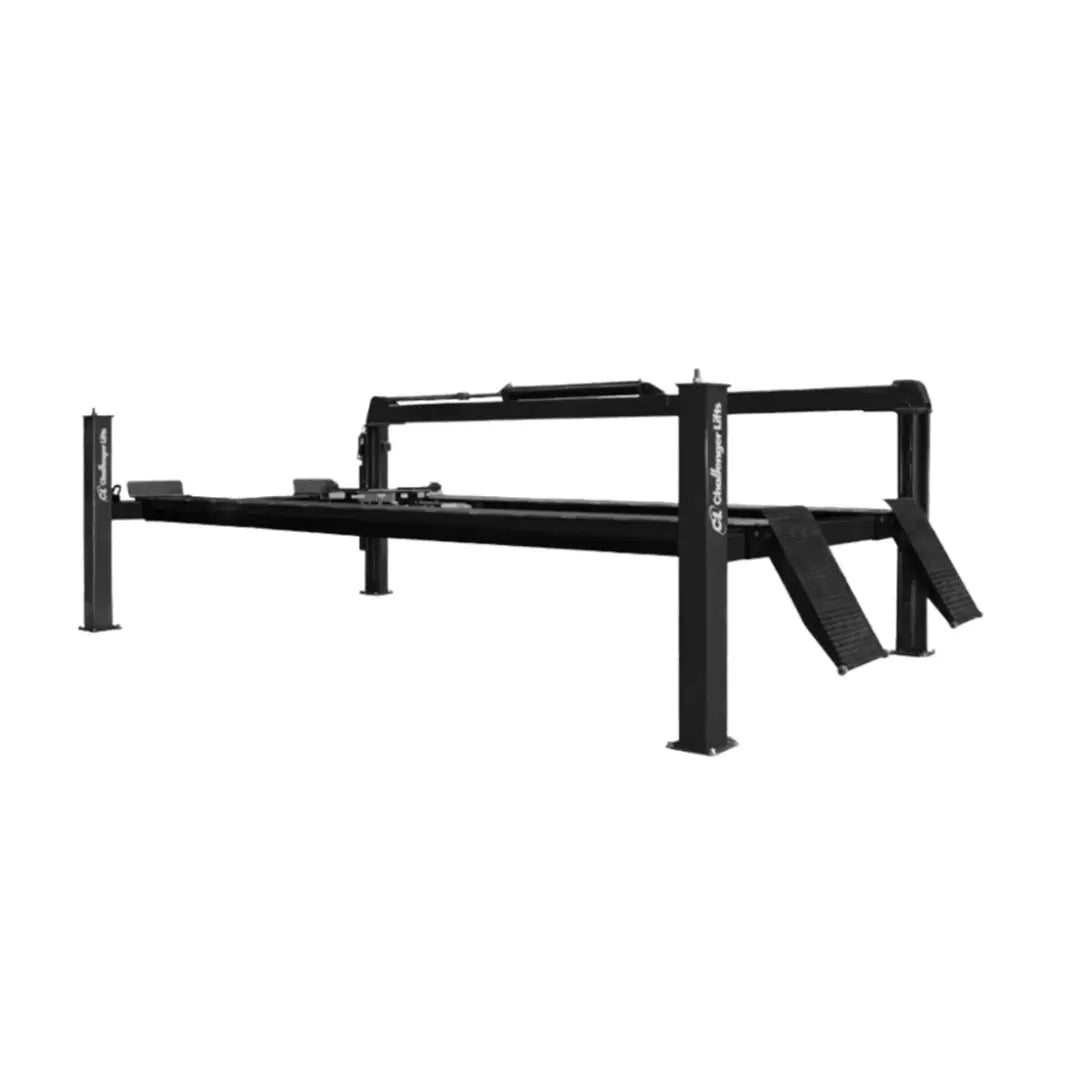

Challenger Lifts 44040X 40,000 lb Heavy Duty 4 Post Chain-Driven Lift

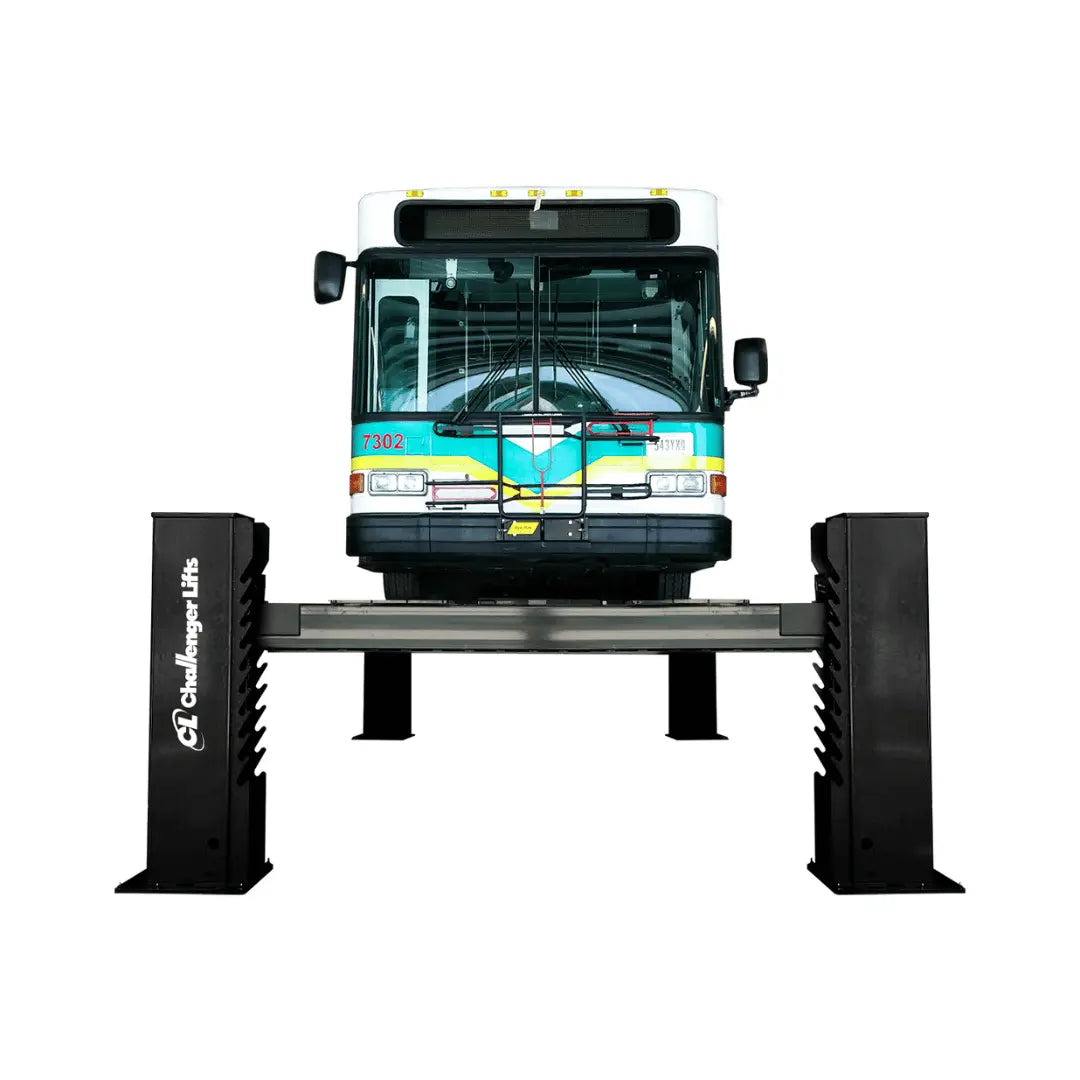

We designed our 30,000 lb. to 60,000 lb. lifts as an economic high capacity lifting solution in a traditional 4-post design. Diamond plated anti-skid runways and ramps provide for positive vehicle traction. The synchro-power system has dual heavy-duty lift cylinders as well as lever controls, which provide variable or synchronous power to the front and/or rear suspension of the lift, making it perfect for lifting large axle vehicles with heavier front or rear ends, including waste trucks and other construction trucks.
Product Features
- 30,000 lb. to 60,000 lb. capacity 4-post
- 310” to 430” max wheelbase
- 32” wide runways aid for drive-on confidence
- 10 lock positions provide maximum head room for working underneath vehicles (40K-60K)
- Single-point air actuated lock release allows technicians to disengage column locks simultaneously
- Diamond-plate approach ramps for positive vehicle traction
- Optional 15,000 lb. – 35,000 lb. rolling jacks provide complete optimization for your heavy-duty servicing needs
- Available with black columns only
Product Specifications
| Model | 44040X |
|---|---|
| Lifting Capacity | 40,000 lbs. |
| Max. Wheelbase | 430” |
| Rise Height | 73” |
| Overall Length | 46' |
| Overall Width | 17’ 1.25” |
| Inside Columns | 144” |
| Between Columns | 410” |
| Height Overall | 92" |
| Height of Runways | 14” |
| Width of Runways | 32” |
| Width Between Runways | 36” - 58” |
| Width Between Runways with jacks | 43" - 53.5" |
| Motor / Voltage | 10HP, 230 - 460v Three Phase |
| Amps | 28 - 14 |
| Speed of Rise | 70s |
| Color Available | Black |
Pick Up and Delivery
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
