Katool KT-4H150 15,000 lbs 4 Post Alignment Lift With Rolling Jack
Regular price $5,700.00 Sale price $3,135.00 Save 45%Katool KT-4H150 15,000 lbs 4 Post Alignment Lift With Rolling Jack

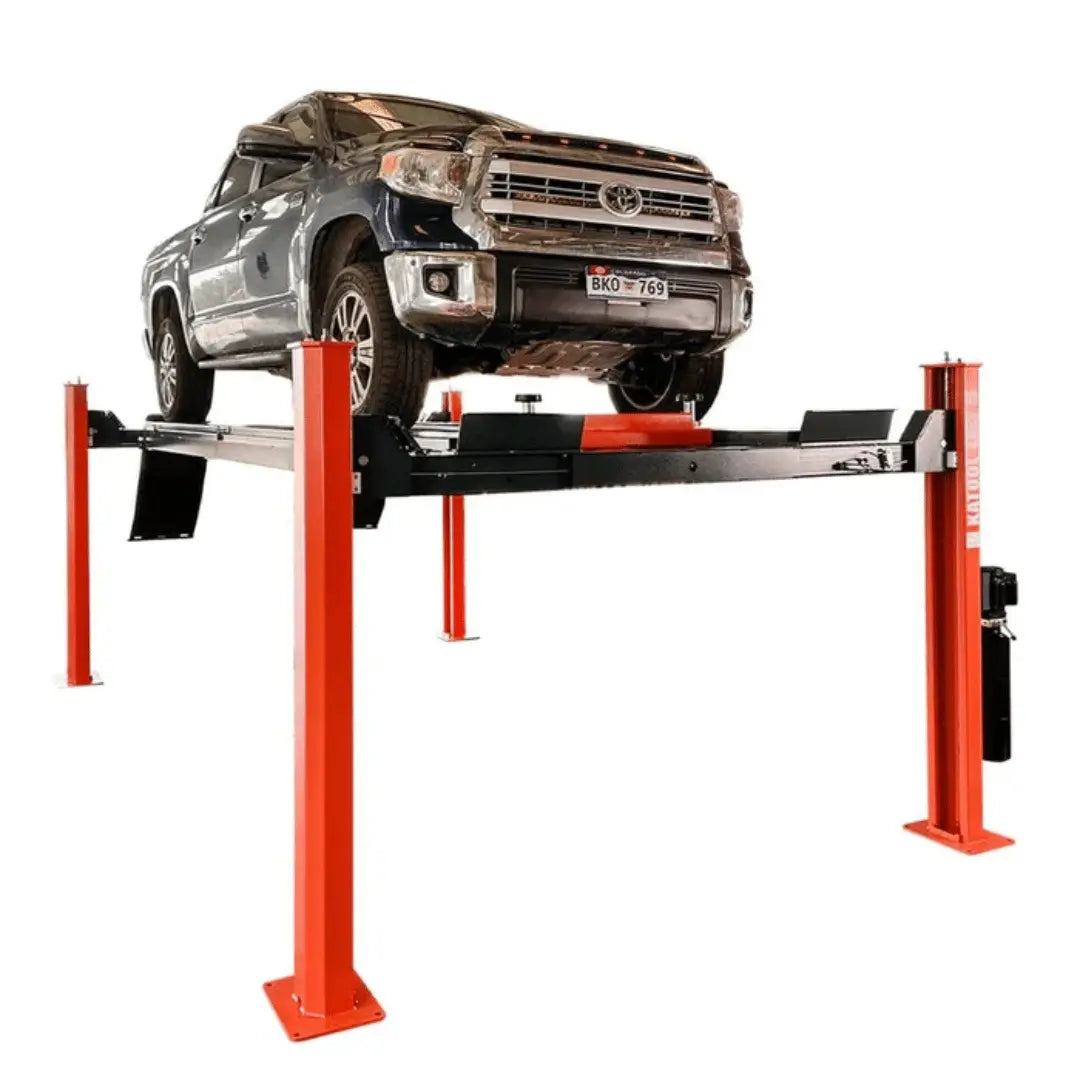

The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift offers exceptional performance and reliability with a robust 15,000 lbs lifting capacity. CE approved and certified, it meets rigorous standards, including 115% dynamic loading capacity and 150% static loading capacity testing. This lift is designed for safety, efficiency, and versatility, making it the ideal choice for heavy-duty vehicle alignment and lifting operations.
Equipped with a single-point manual safety lock release and four mechanical locking devices featuring primary and secondary safety locks, the KT-4H150 ensures secure and controlled operation. Its non-skid diamond platforms, adjustable safety lock ladders, and included turn tables for wheel alignment further enhance its functionality. Powered by a high-quality hydraulic system with a 3KW motor, this lift is available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations. Additionally, it includes one 6,000 lbs rolling jack for added convenience.
Product Features
- 15,000 lbs Lifting Capacity: Ideal for heavy-duty vehicles.
- CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

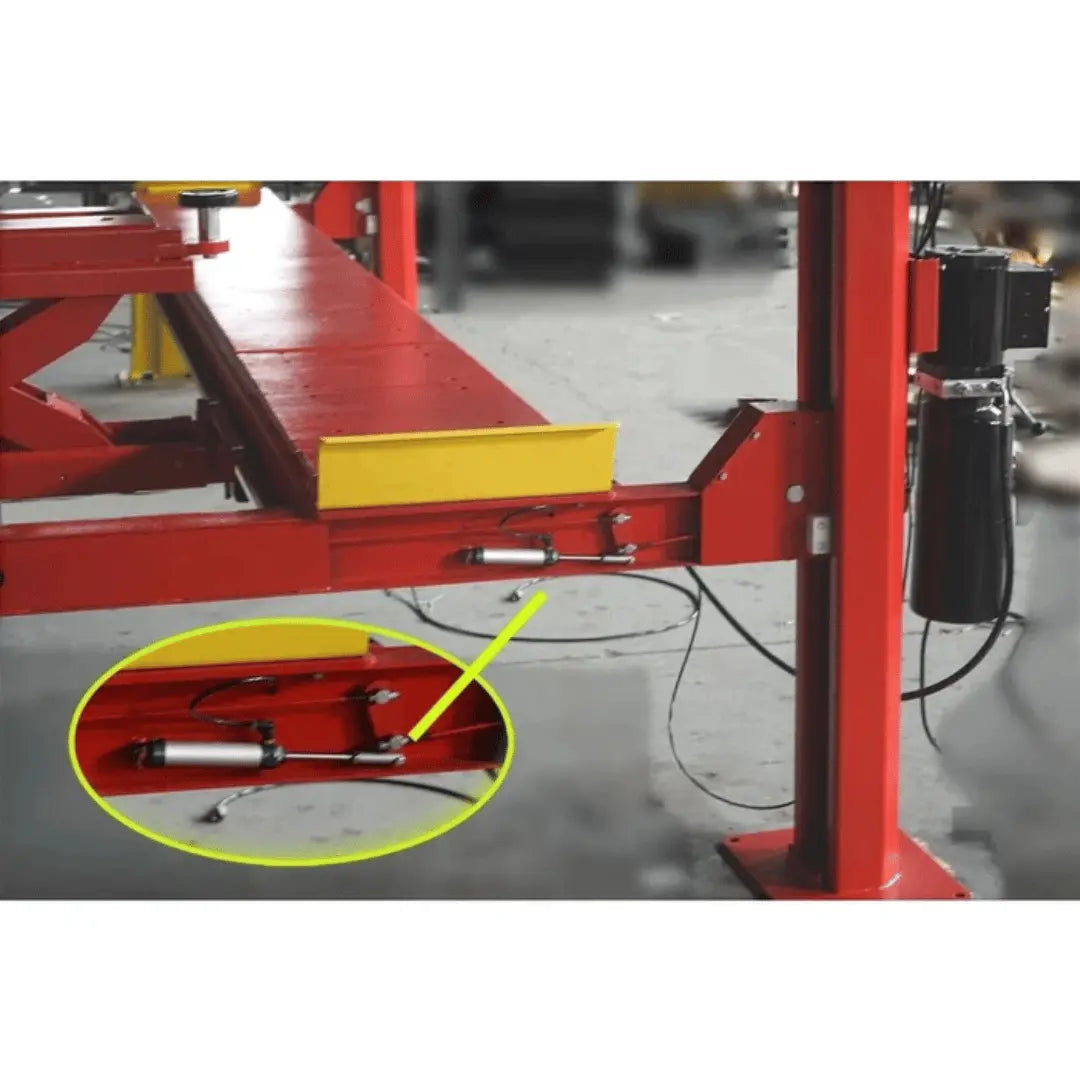

- Single-Point Manual Safety Lock Release: Ensures secure and efficient lifting operations.

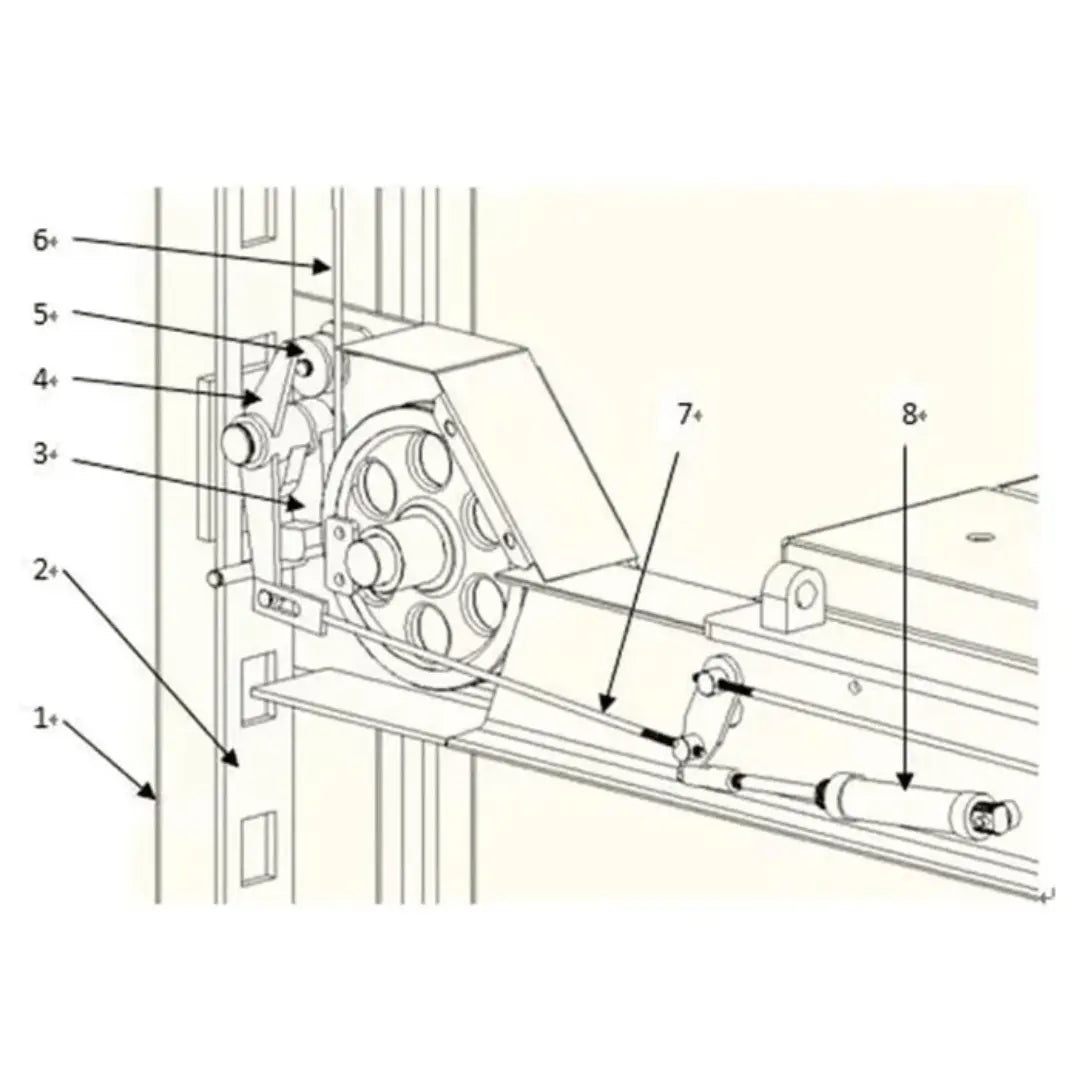

- Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for enhanced security.

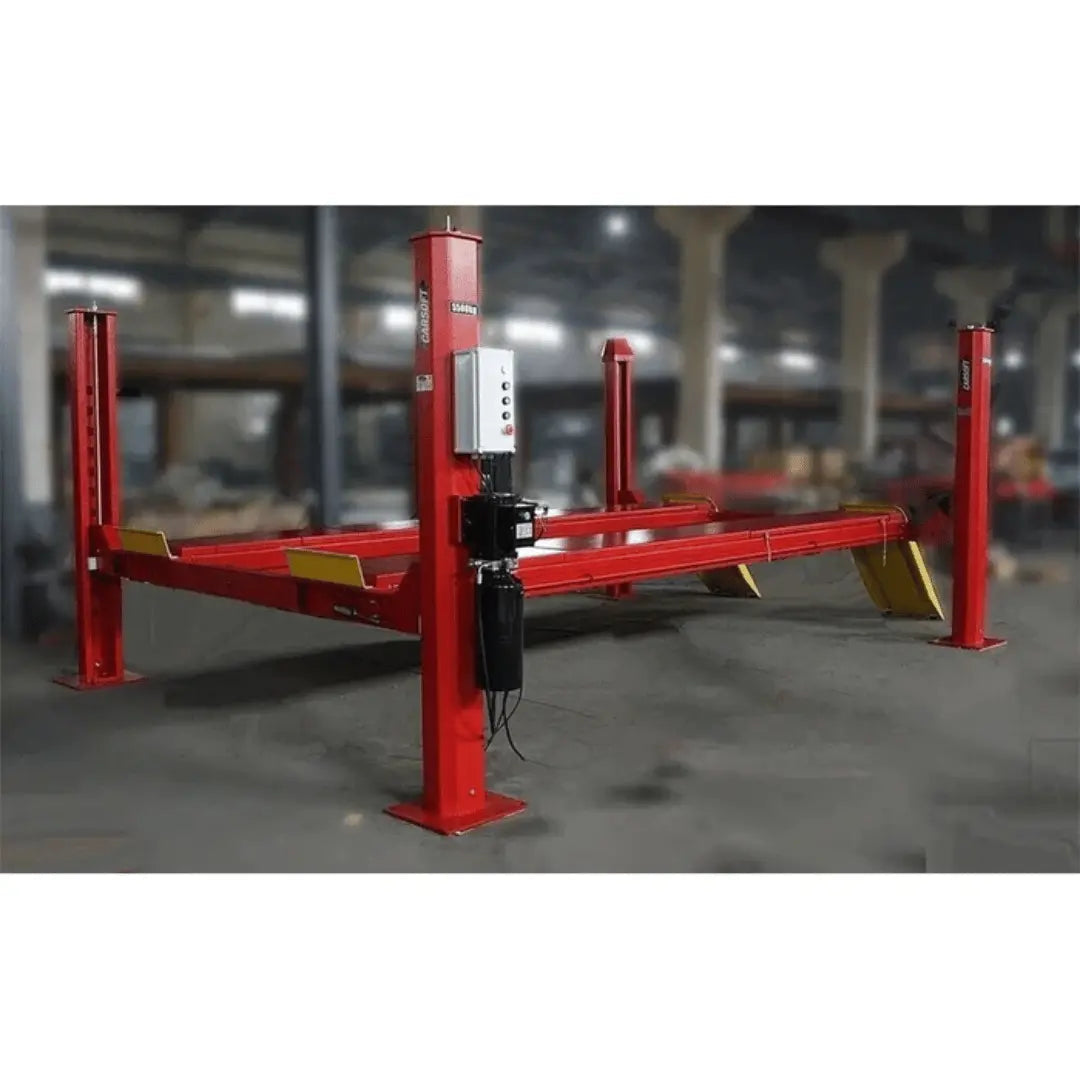

- Powerside Column: Flexible installation options at either side, front, or rear.
- Non-Skid Diamond Platforms: Provides stability and safety during operation.

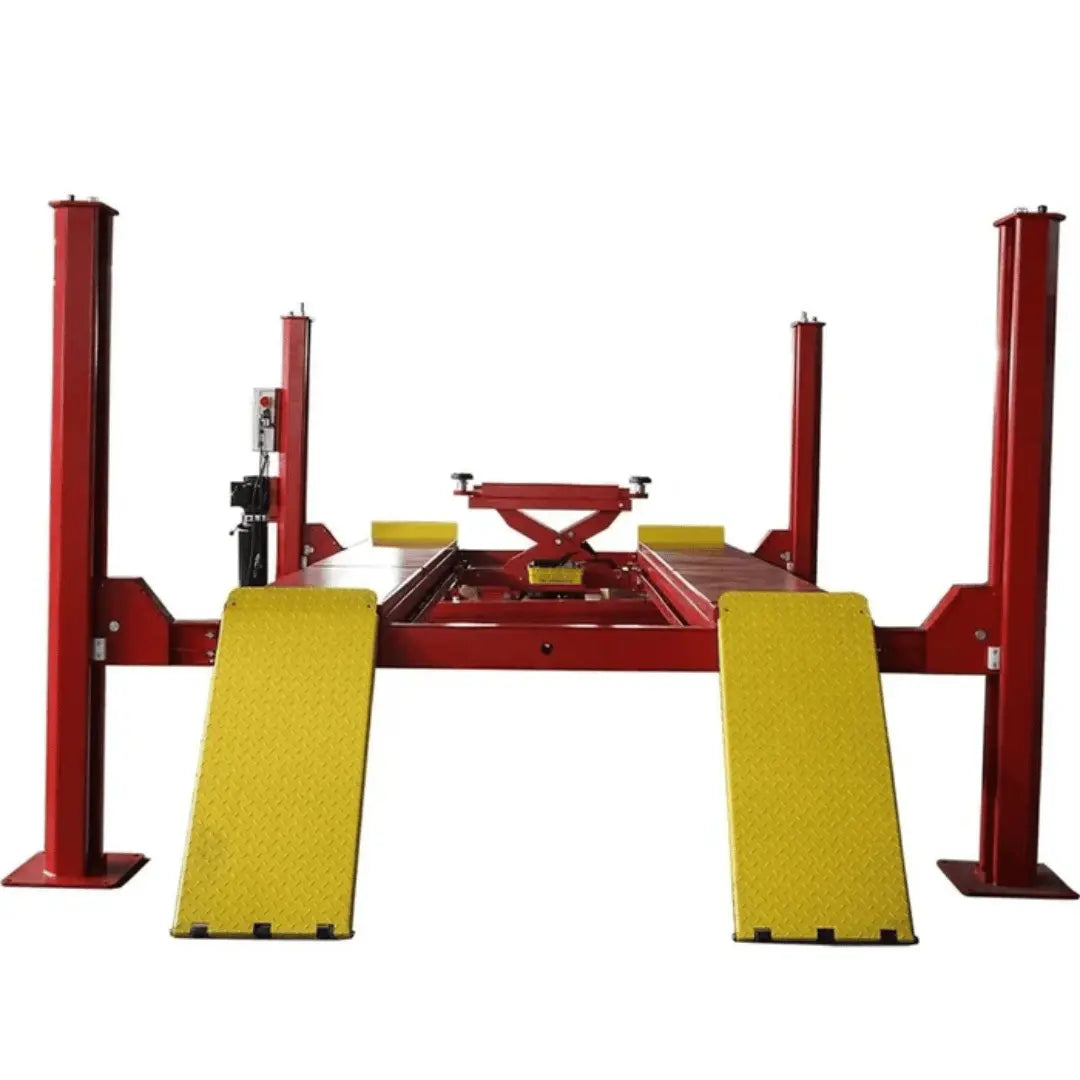

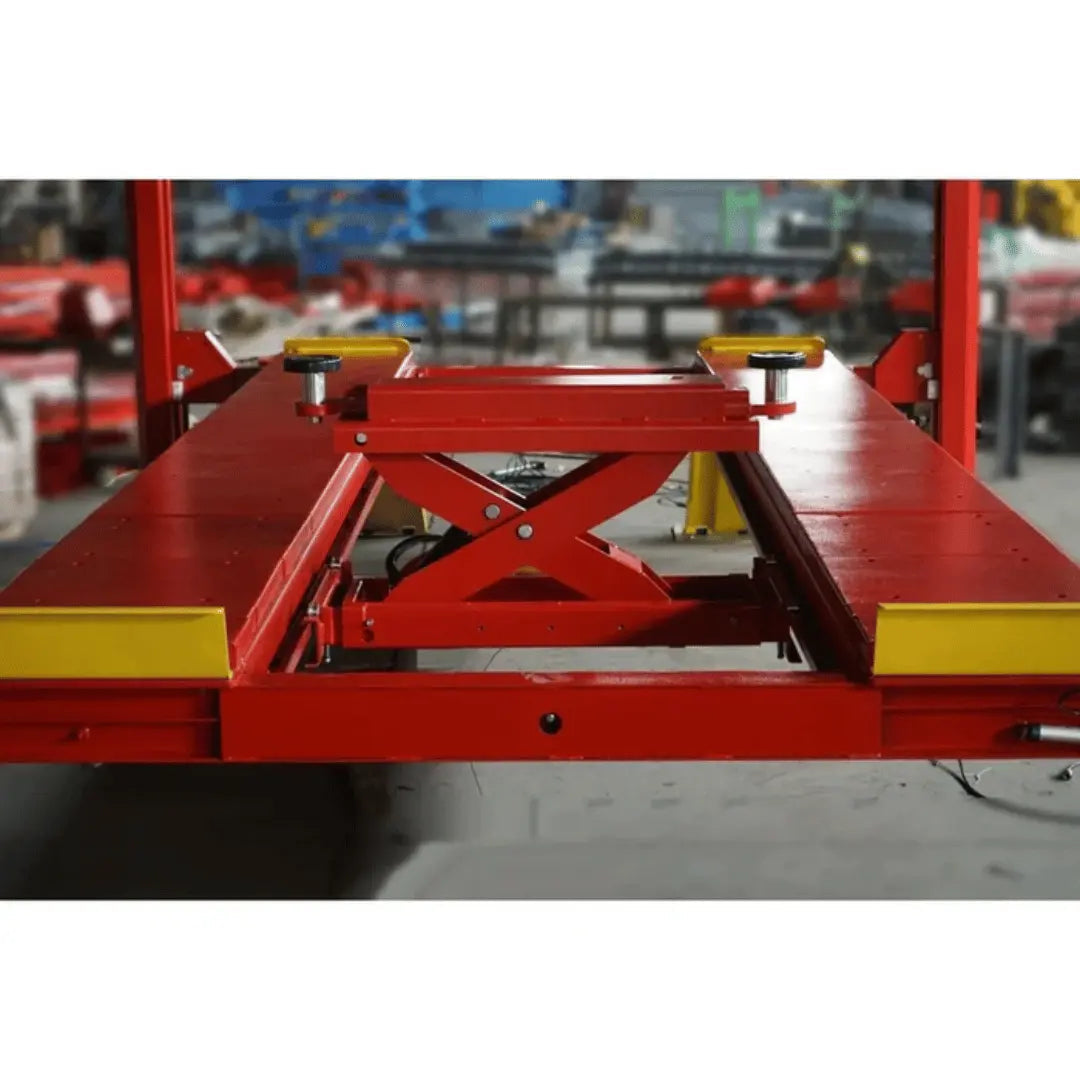

- Included Rolling Jack: One 6,000 lbs rolling jack for additional lifting capabilities.
- Optional Turn Tables for Wheel Alignment: Enhances the lift’s versatility for alignment tasks.

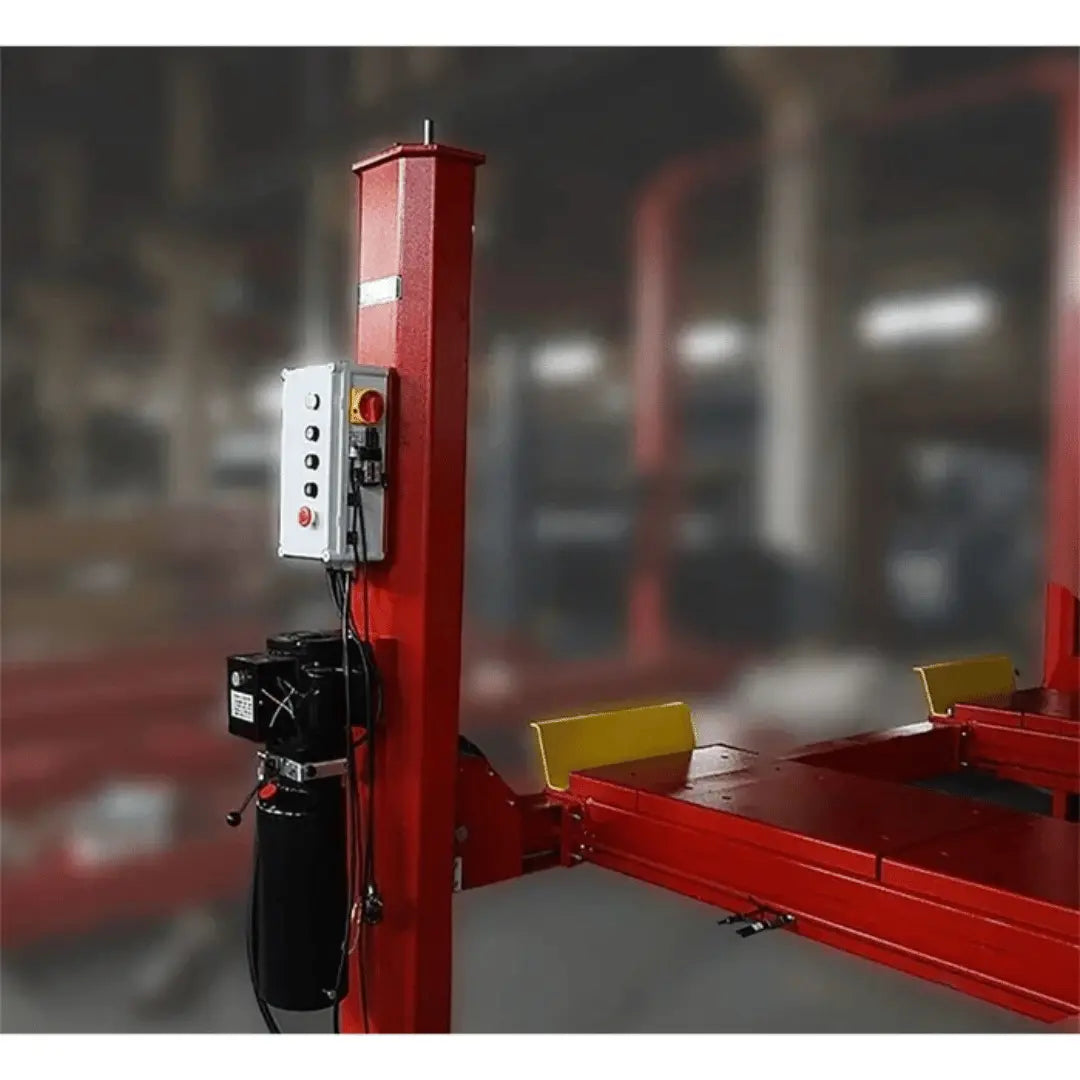

- High-Quality Hydraulic System: Powered by a 3KW motor, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH configurations.

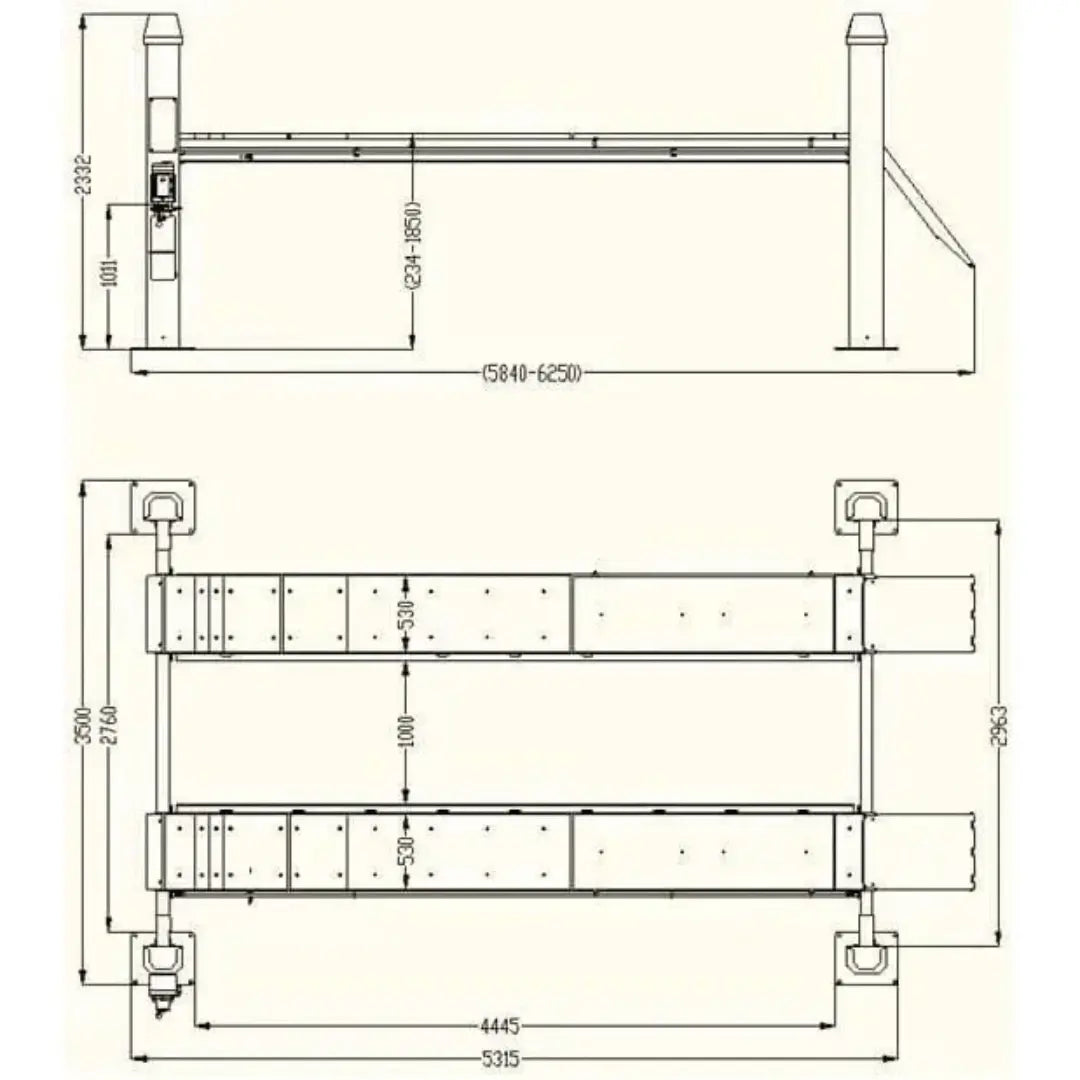

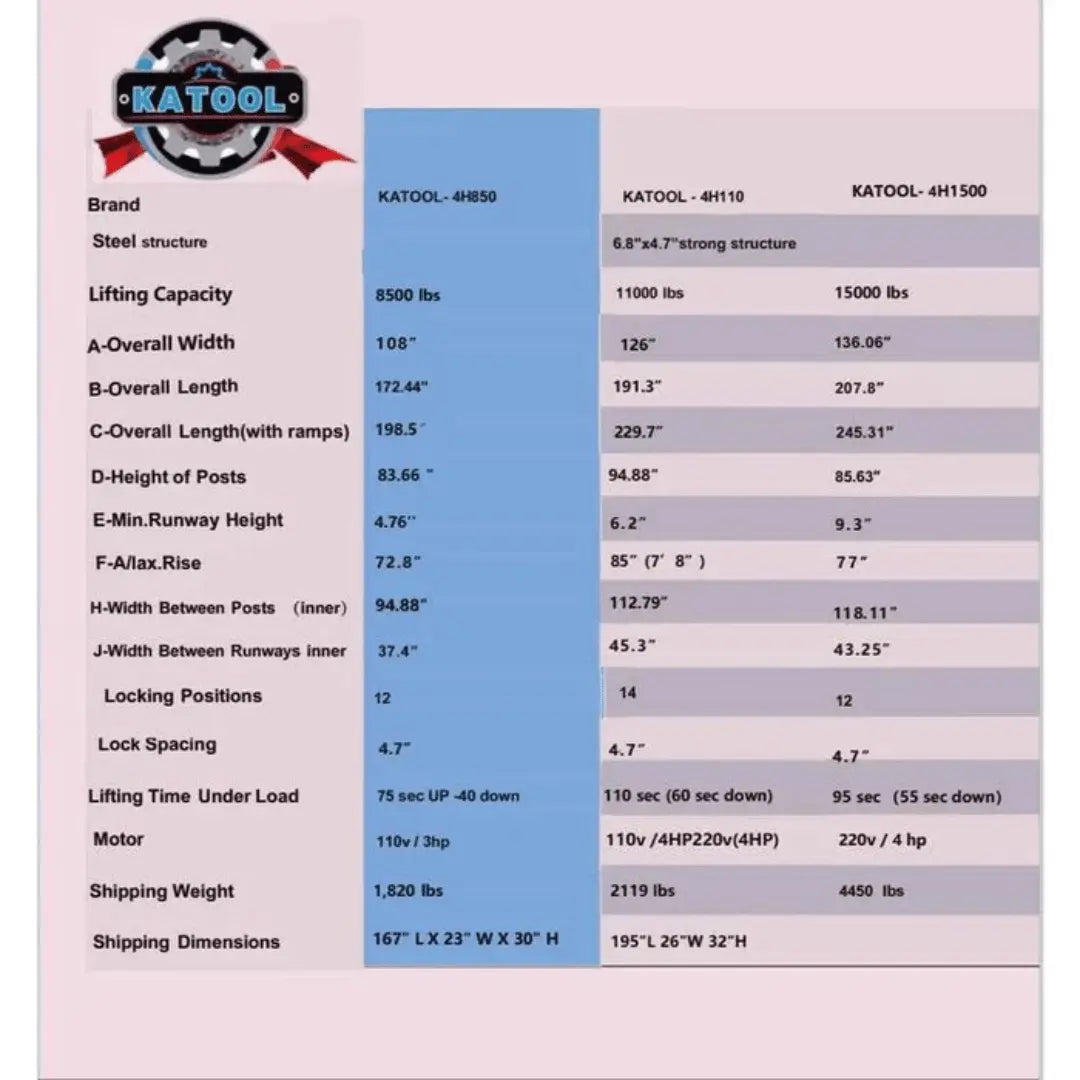

Product Specifications
| Lifting Capacity | 15,000 lbs (~6,803 kg) |
| Max. Lifting Height | 92.52" (2,350 mm) |
| Lifting Time | 95s Up / 55s Down |
| Height of Posts | 85.63" (2,175 mm) |
| Width Overall | 136.06" (3,456 mm) |
| Length Overall | 245.31" (6,231 mm, with ramps) |
| Inside Columns | 118.11" (3,000 mm) |
| Min. Runway Height | 9.3" (236 mm) |
| Motor | 220VAC/60HZ/1PH |
| Net Weight | 4,850 lbs (2,200 kg) |
Installation
Installing the KT-4H150 is straightforward, but proper concrete requirements are critical for safety. Ensure the concrete thickness is at least 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these specifications could lead to serious injury or equipment failure.
Pick Up and Delivery
Call, text, or chat with us if you have questions. 866-774-7743
