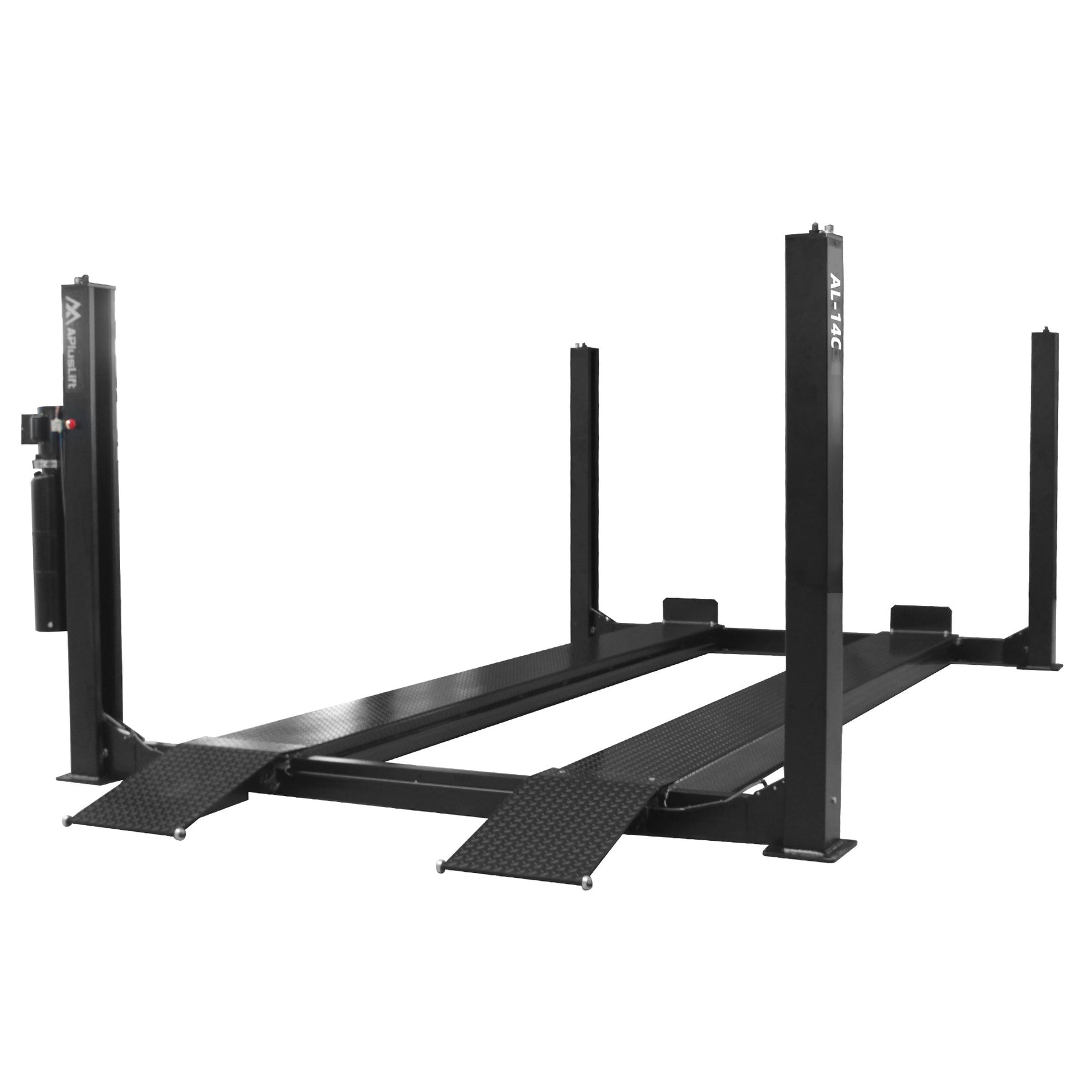

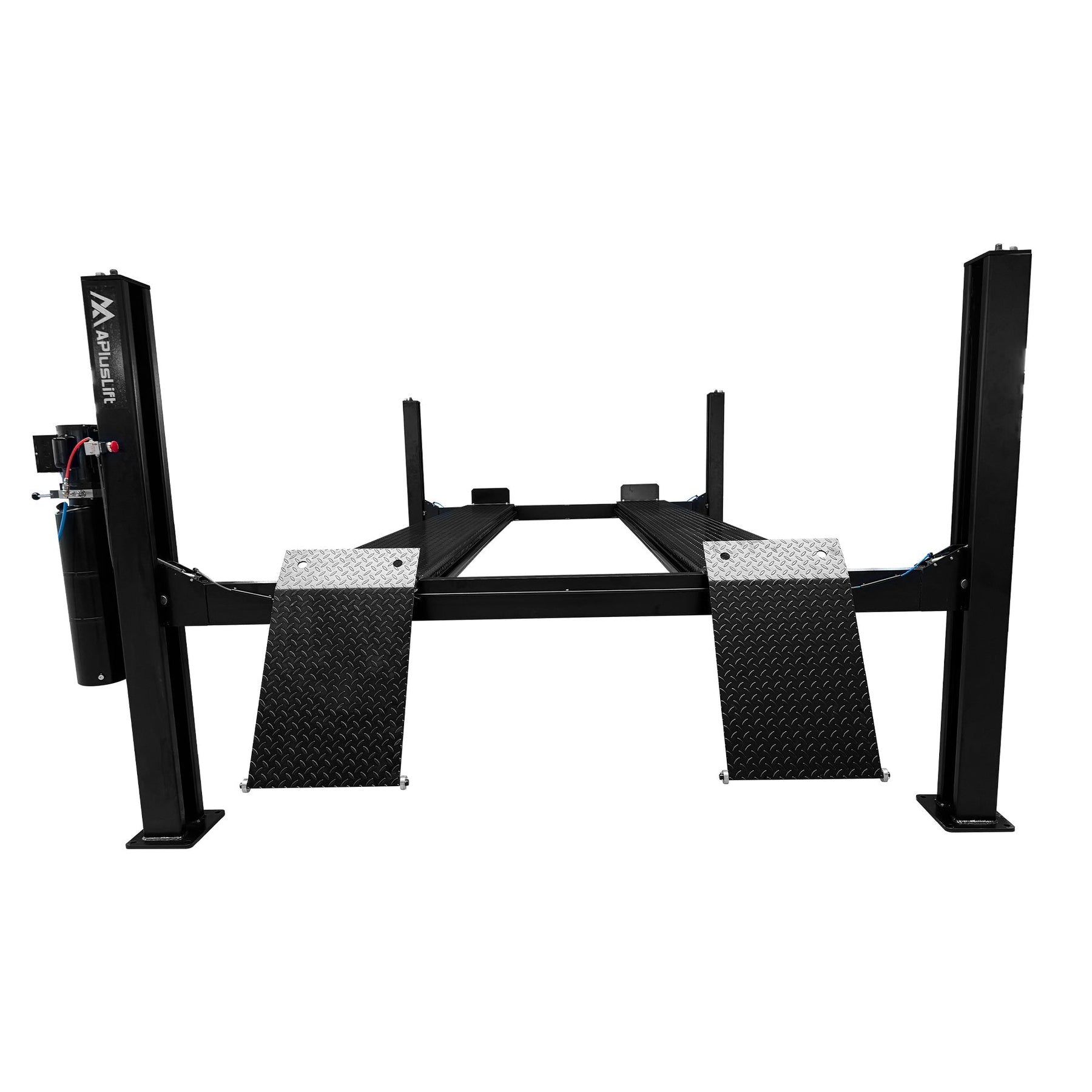

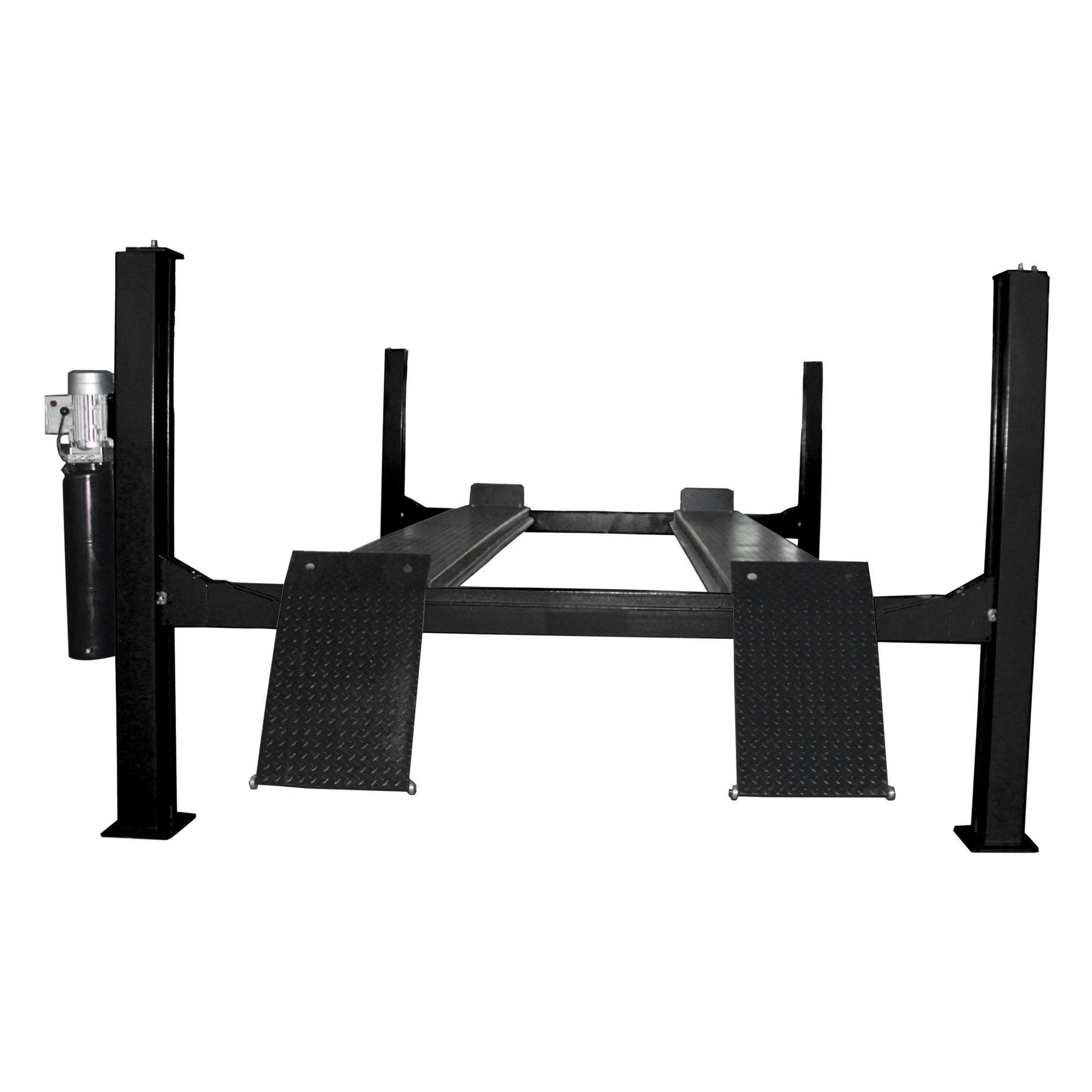

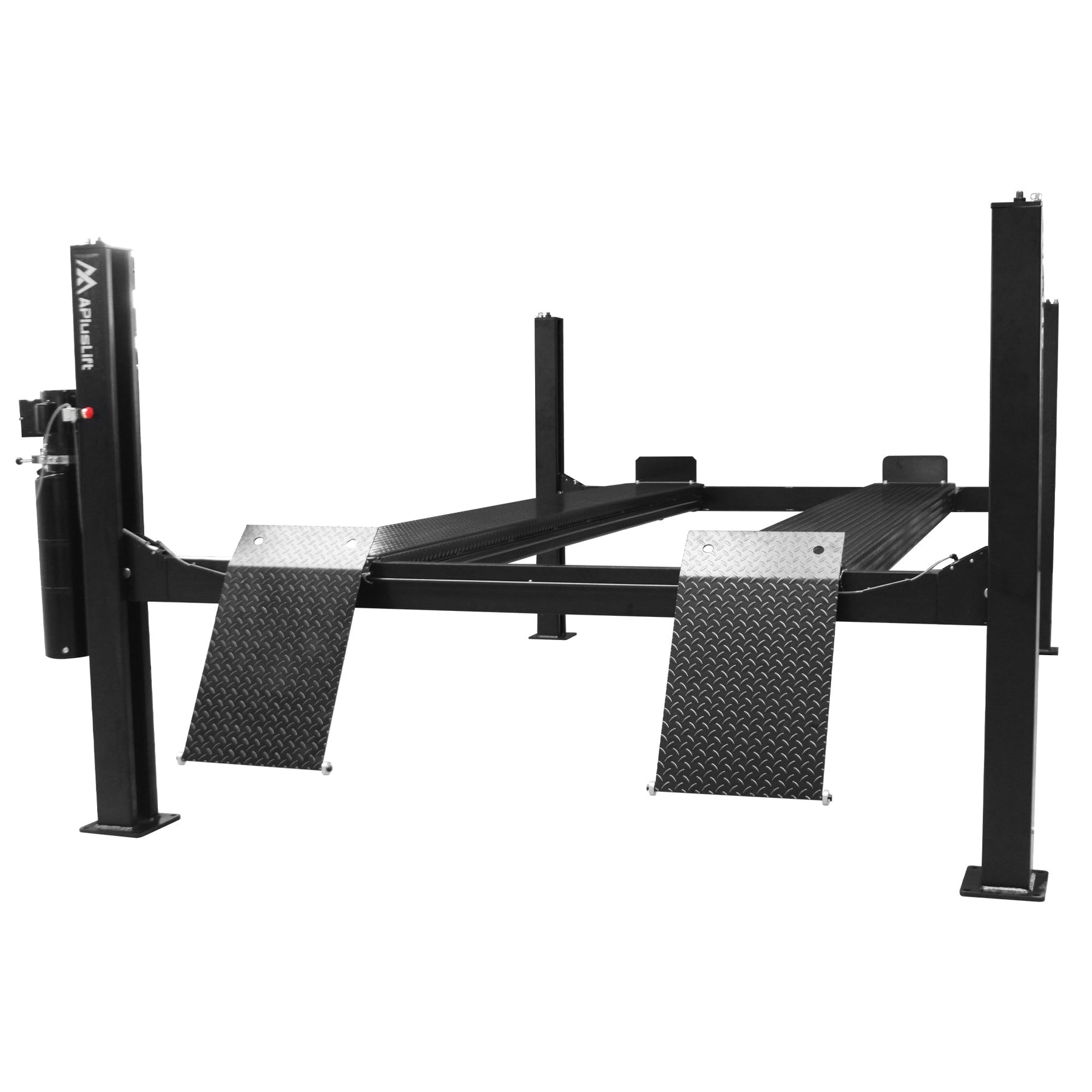

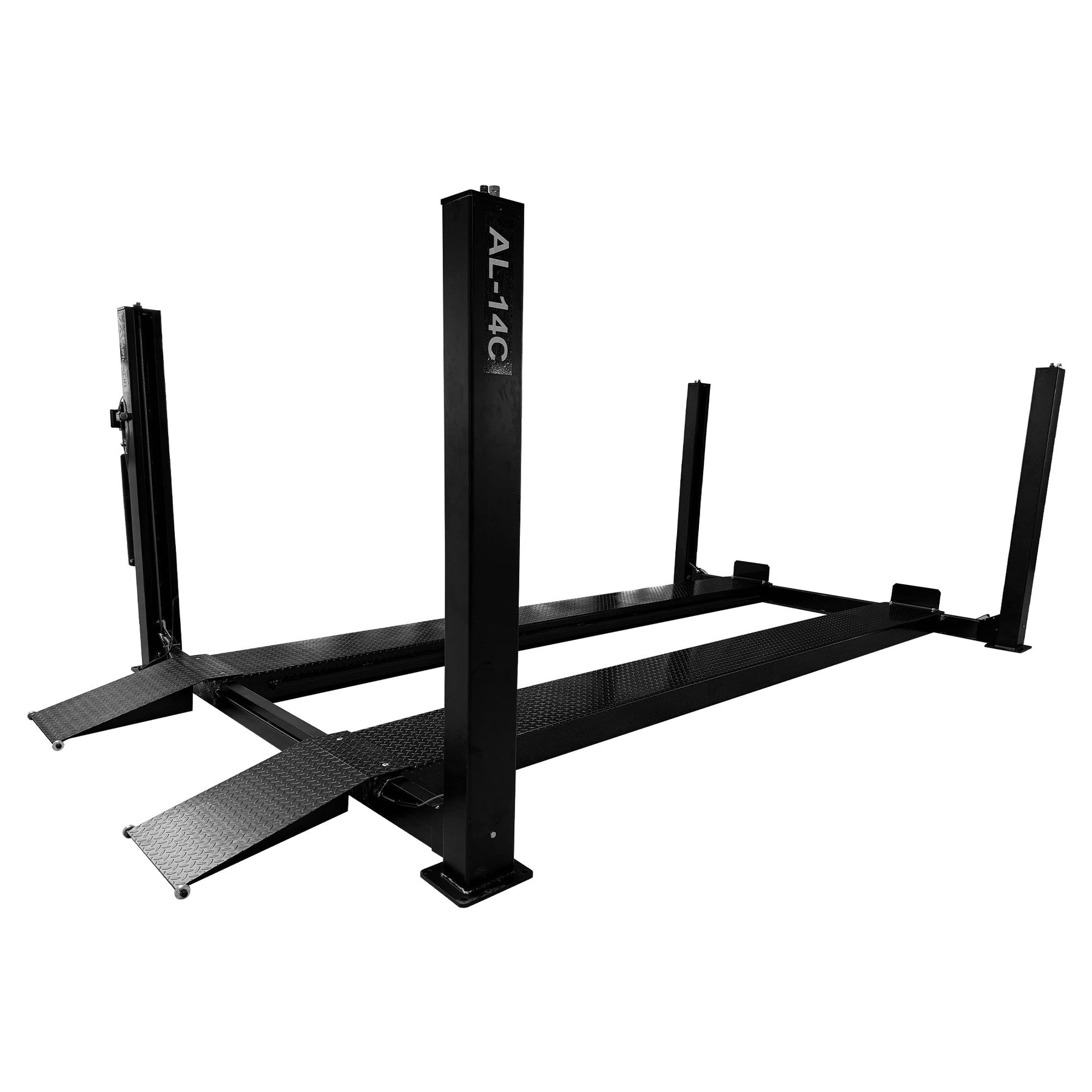

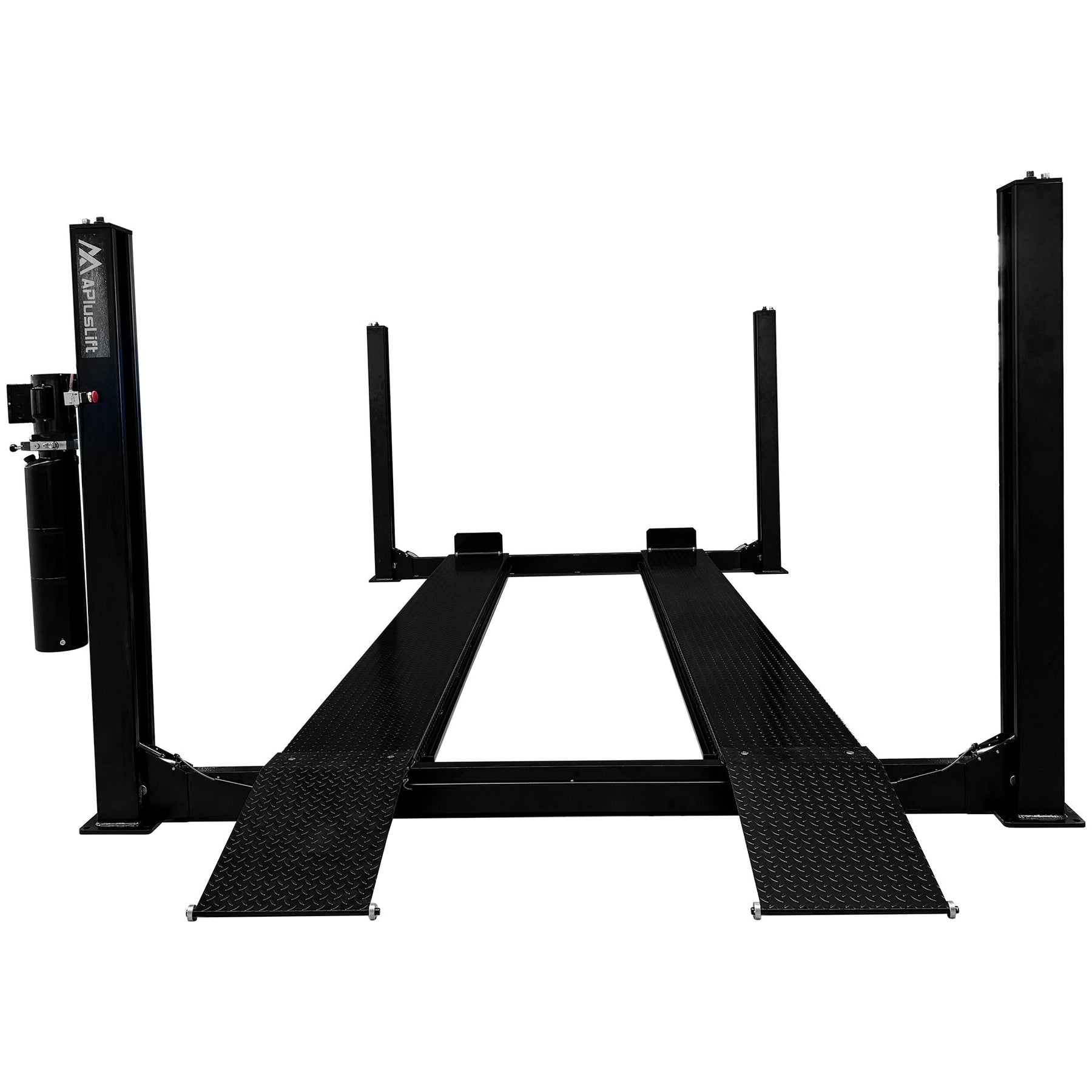

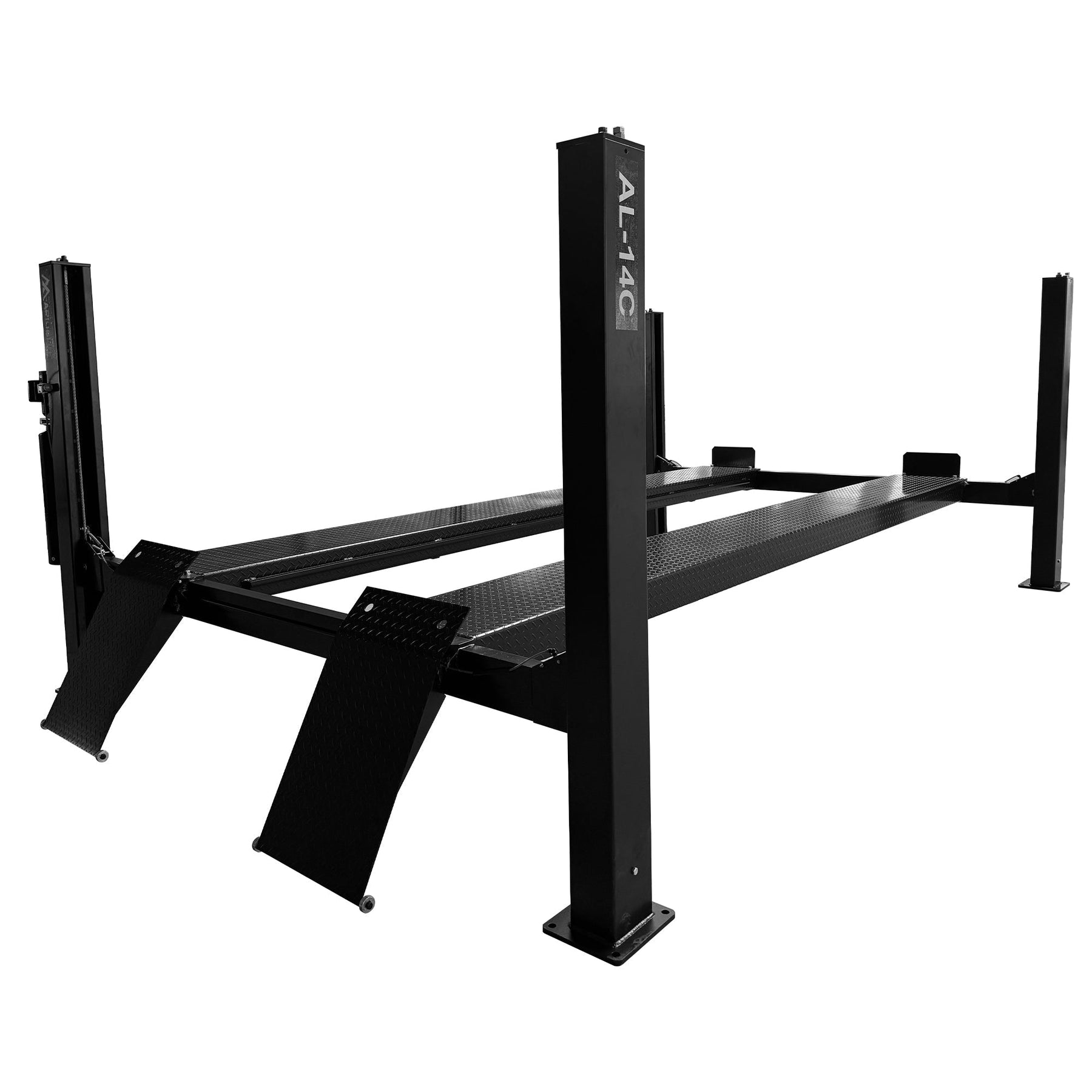

Specifications and Features
|
| Model |
AL-14C(HW-14AL)
(This Model) |
AL-12A
for Comparison |
| Manual |
HW-14AL Manual |
AL-12A Manual |
| Warranty |
3 Years (36 Months) |
3 Years (36 Months) |
| Lifting Capacity |
14,000 LB |
12,000 LB |

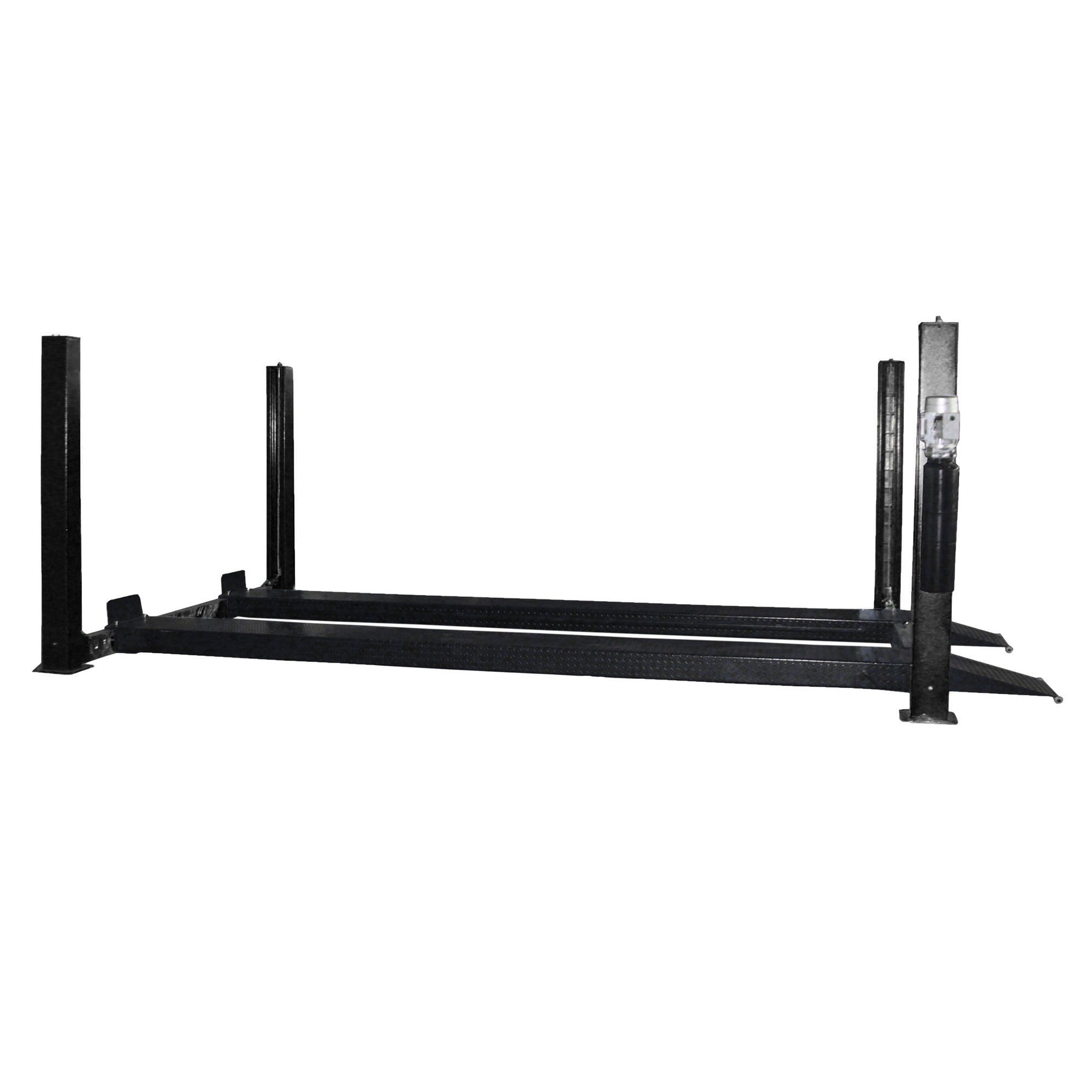

| Overall Length |
243 1/2" |
230" |
| Overall Width |
134 3/8" |
130" |
| Drive Through Width |
106 9/32" |
113 5/8" |
| Overall Height |
83" |
87 1/2" |

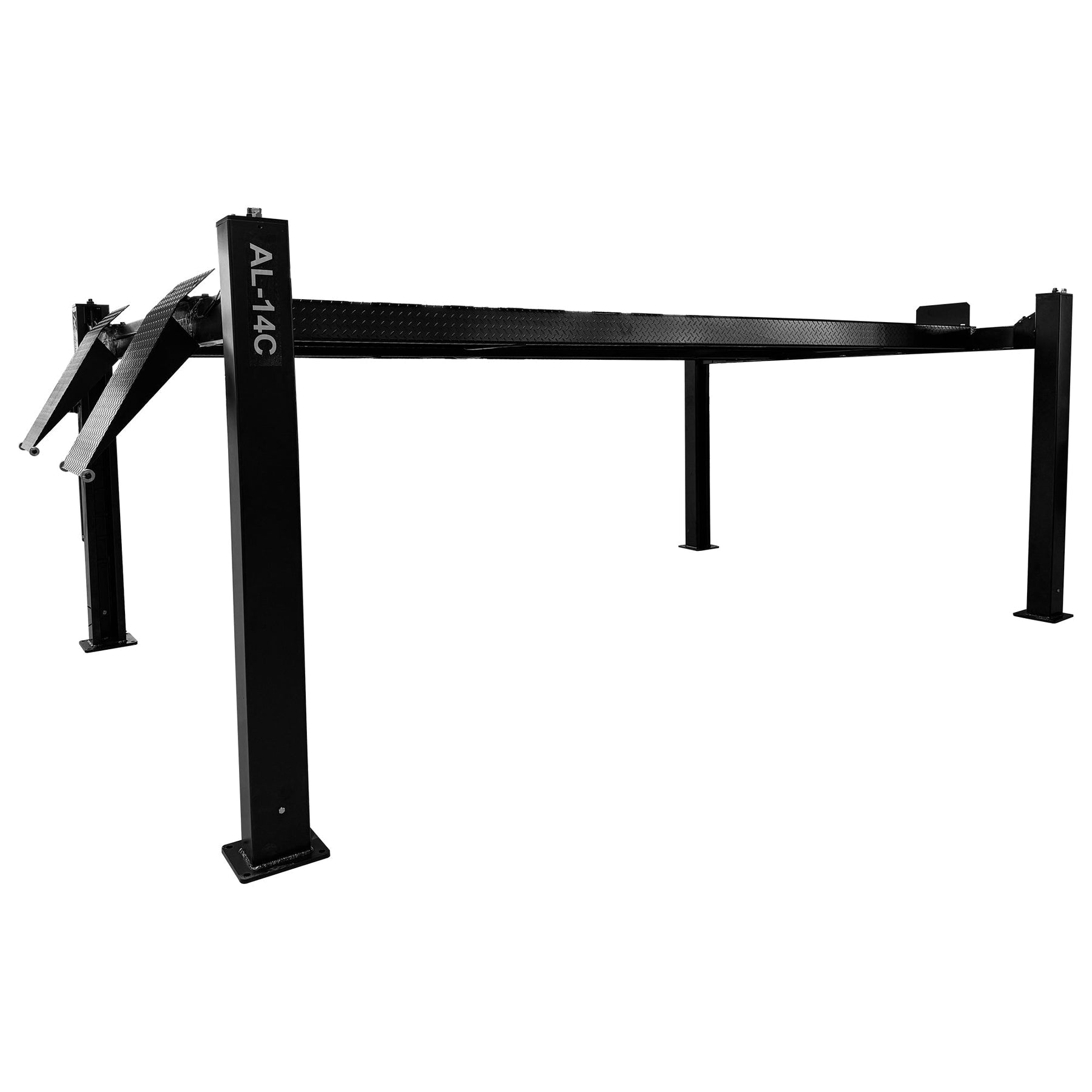

| Lifting Height |
77 11/32" |
72" |
| Clearance Under Runway |
70 27/32" |
67" |
| Runway Size |
203 15/16"L x 20"W |
196"L x 23"W |
| Width Between Runways |
43" Inside-Inside, 83" Outside-Outside |
34 1/2" Inside-Inside,80 3/8" Outside-Outside |
| Runway Gauge Steel |
15/64" |
6 (13/64") |
| Column Cross Section |
7 11/16"L x 6"W |
7"L x 5"W |
| Removable Approach Ramps Size |
27 31/32"L x 20 3/32"W |
32"L x 18 1/2"W |

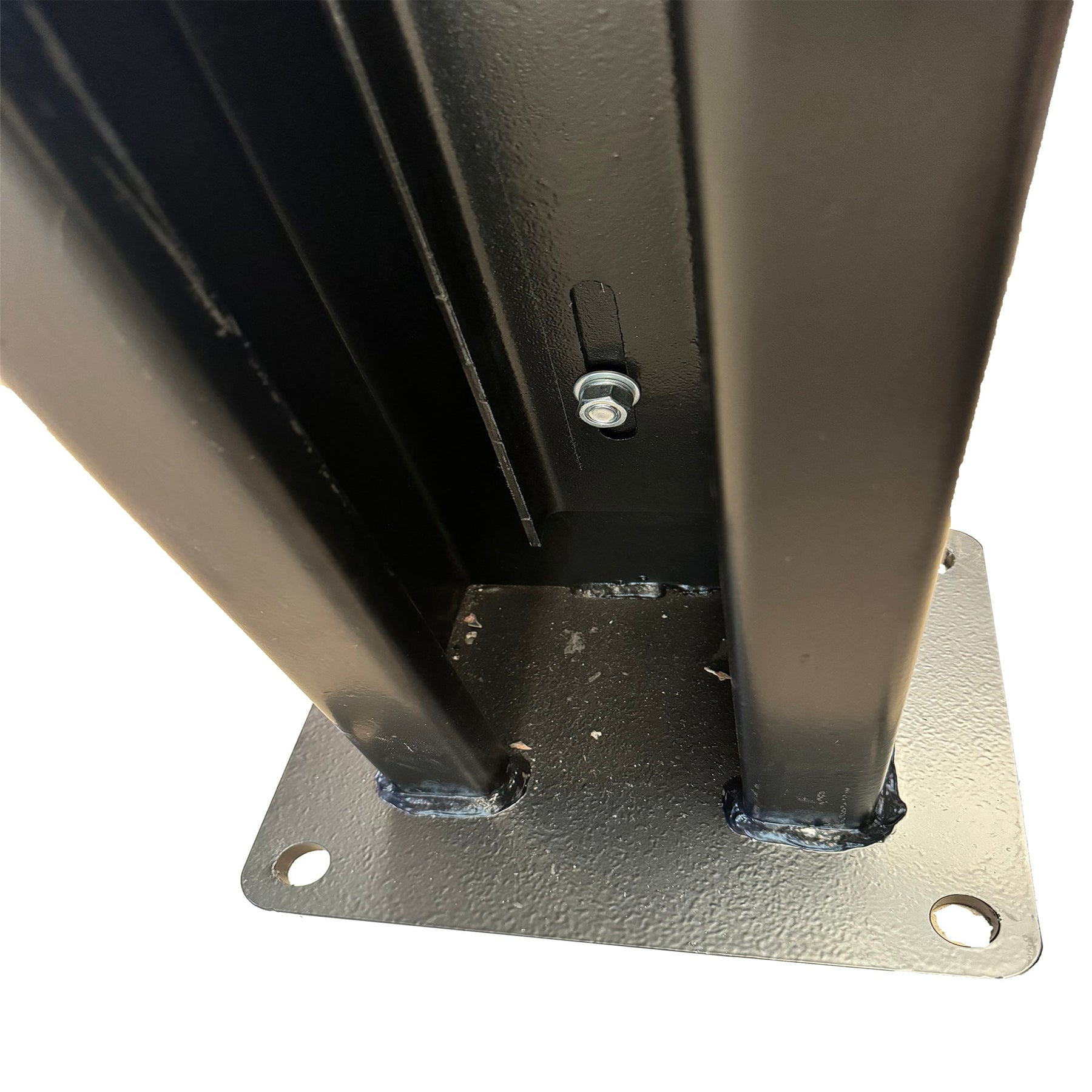

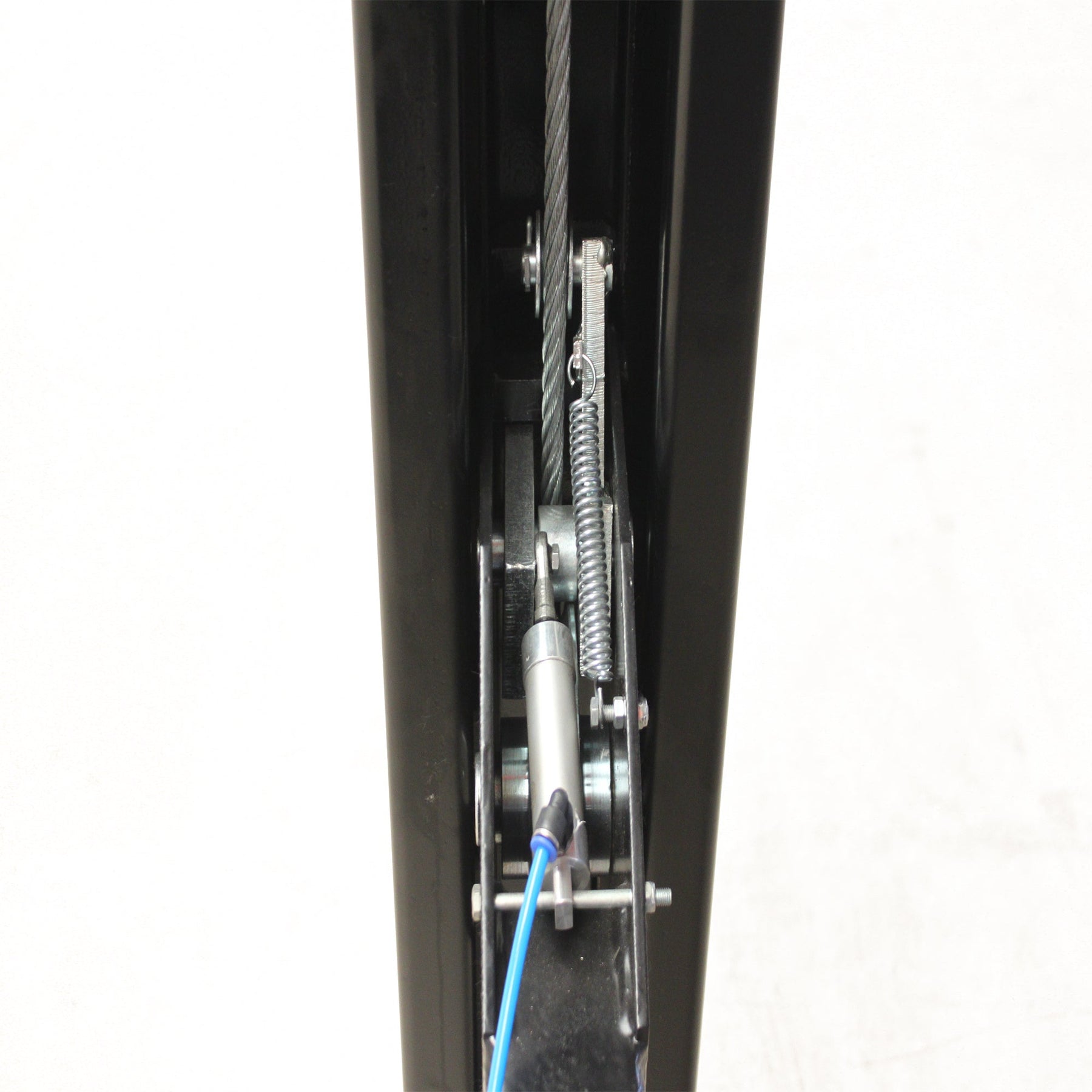

| Lock Positions |
10 Positions
- 20 15/32"
- 25 19/32"
- 31 1/2"
- 37 13/32"
- 43 5/16"
- 49 7/32"
- 55 1/8"
- 61 1/32"
- 66 15/16"
- 72 27/32"
|
14 Positions:
- 19 3/4"
- 23 1/2"
- 27 1/2"
- 31 1/2"
- 35 1/2"
- 39 3/8"
- 43 3/8"
- 47 1/4"
- 51 1/4"
- 55 1/8"
- 59"
- 63"
- 66 31/32"
- 70 7/8"
|
| Lifting Time |
100 seconds |
60 seconds |

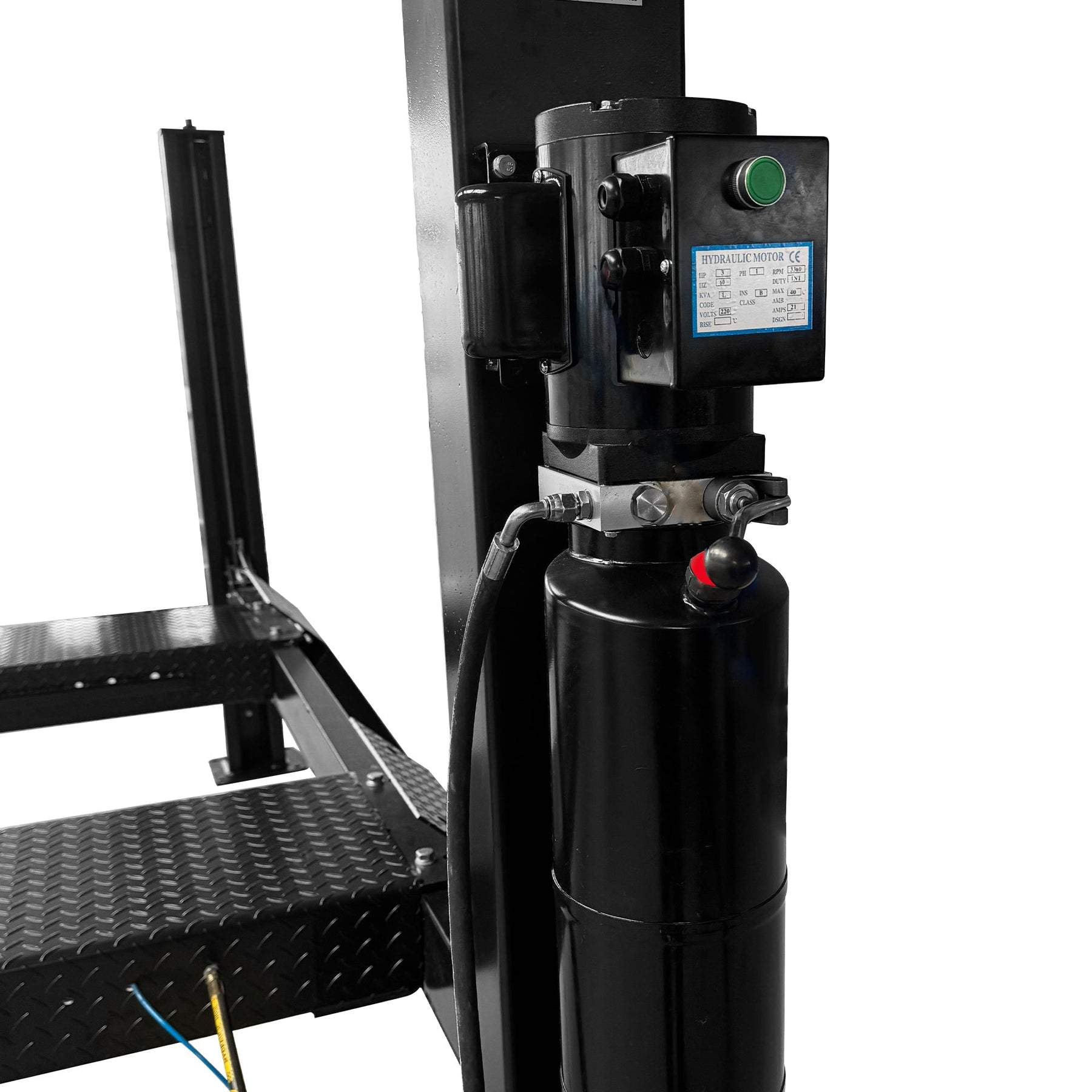

| Motor |
220V Single Phase 3HP 10A (recommend a 30A breaker) |
220V Single Phase 3HP 10A (recommend a 30A breaker) |
| Hydraulic Oil |
4.3-5 gallons AW32/AW46 (Not Included) |
3-5 gallons AW32/AW46 (Not Included) |
| Concrete Thickness |
4" 3000psi |
4" 3000psi |
| Shipping Weight |
3,000 LB |
3,300 LB |
| Shipping package size |
214"L x 25"W x 31"H |
201"L x 28"W x 25"H |
| Usage |
Parking/Storage/Service |
| Finish |
Powder Coated Finish with Superior Corrosion Resistance |

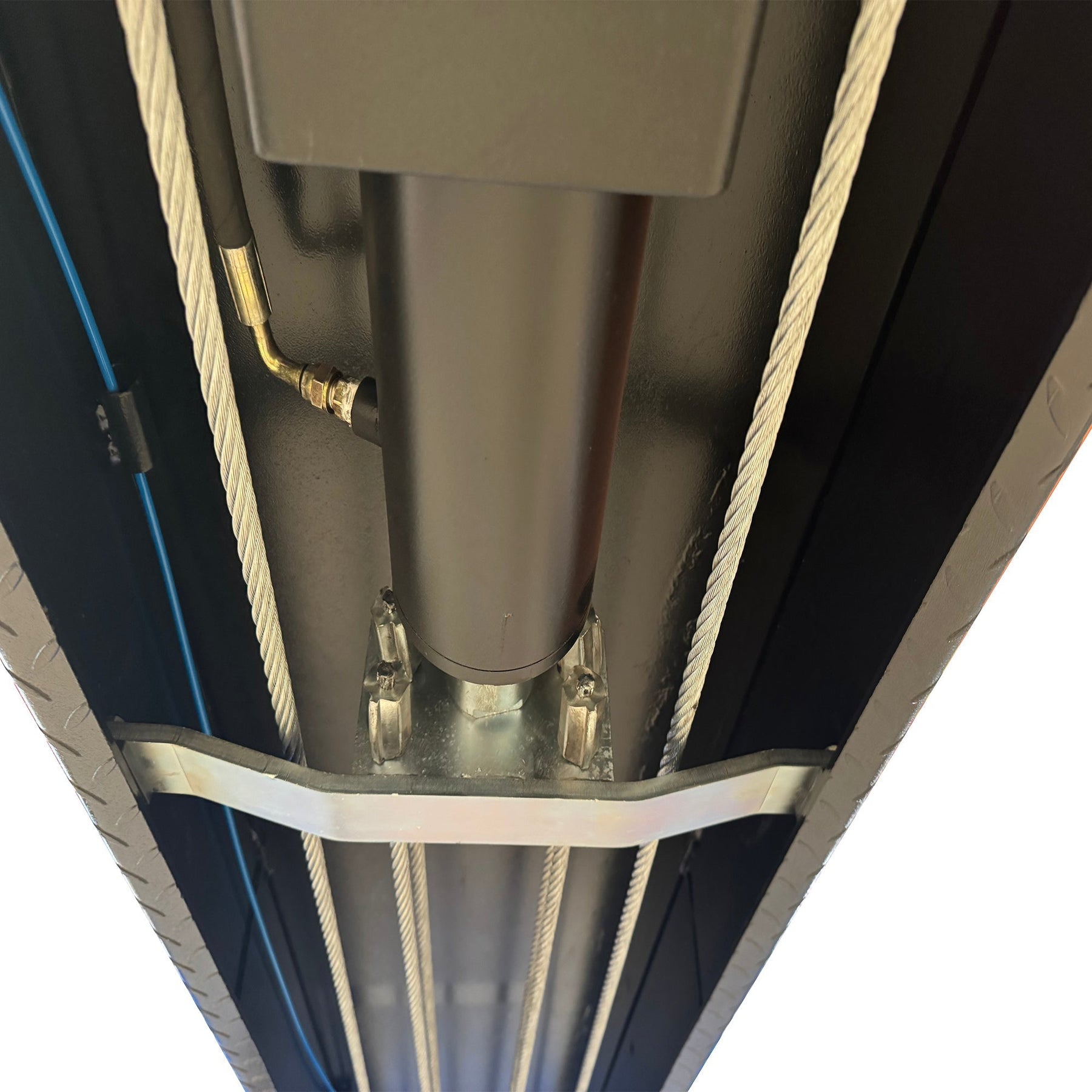

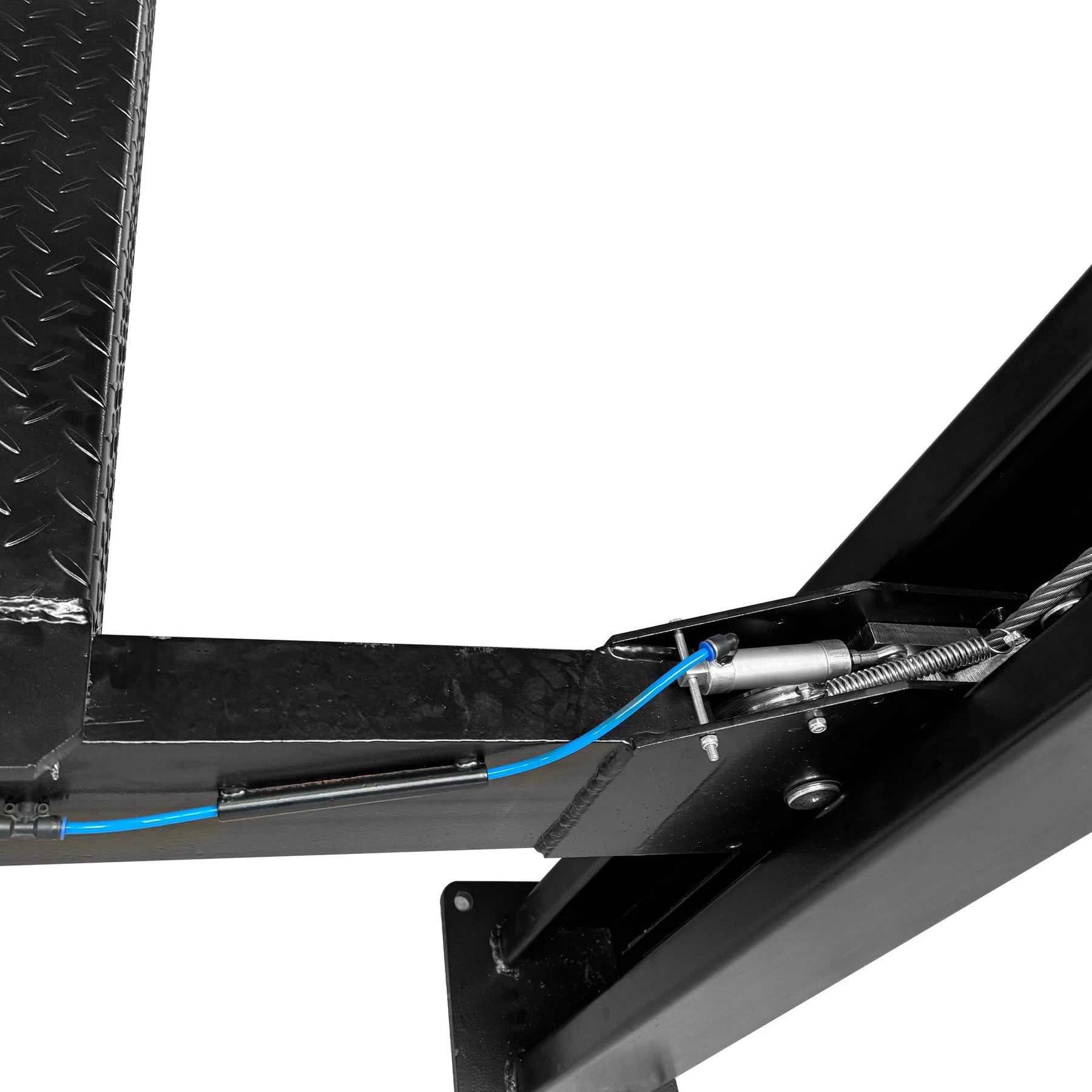

| Cable |
Heavy duty 15/32" diameter cables that reduce high stress on synchronization process and increase cable life |
|
| Parts Included |
2 Removable Approach Ramps Included |
Two Alignment Turn Plate Tables, One 6000LB Slidng Jack, Two Approach Ramps Included |
