$4,495.00 $2,472.25 Save 45%
/
Shipping calculated at checkout.
Only 0 items in stock!

All 2-Post Car Lifts

  • Industry leading 3-YEAR WARRANTY (a $499 value!)

  • Single Point Safety Lock Release System

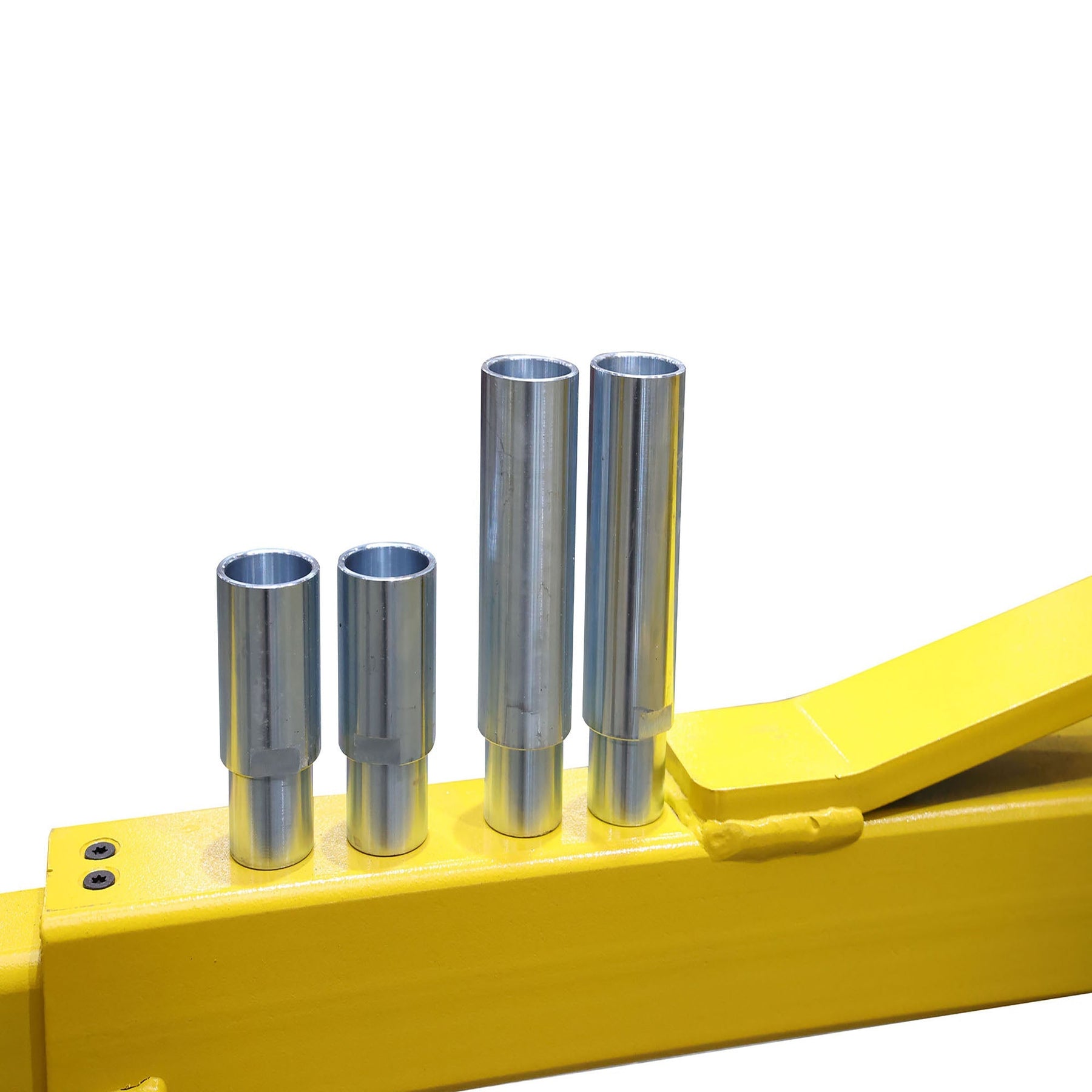

  • Two Set of 3" and 6" Tall Truck Adapters Included; 6'7" Lift Height Maximum with Truck Adapters

  • CE Certified Lift Structure and Hydraulic System - Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity

  • All Robot Welded Structure with Durable Powder Coated Finish

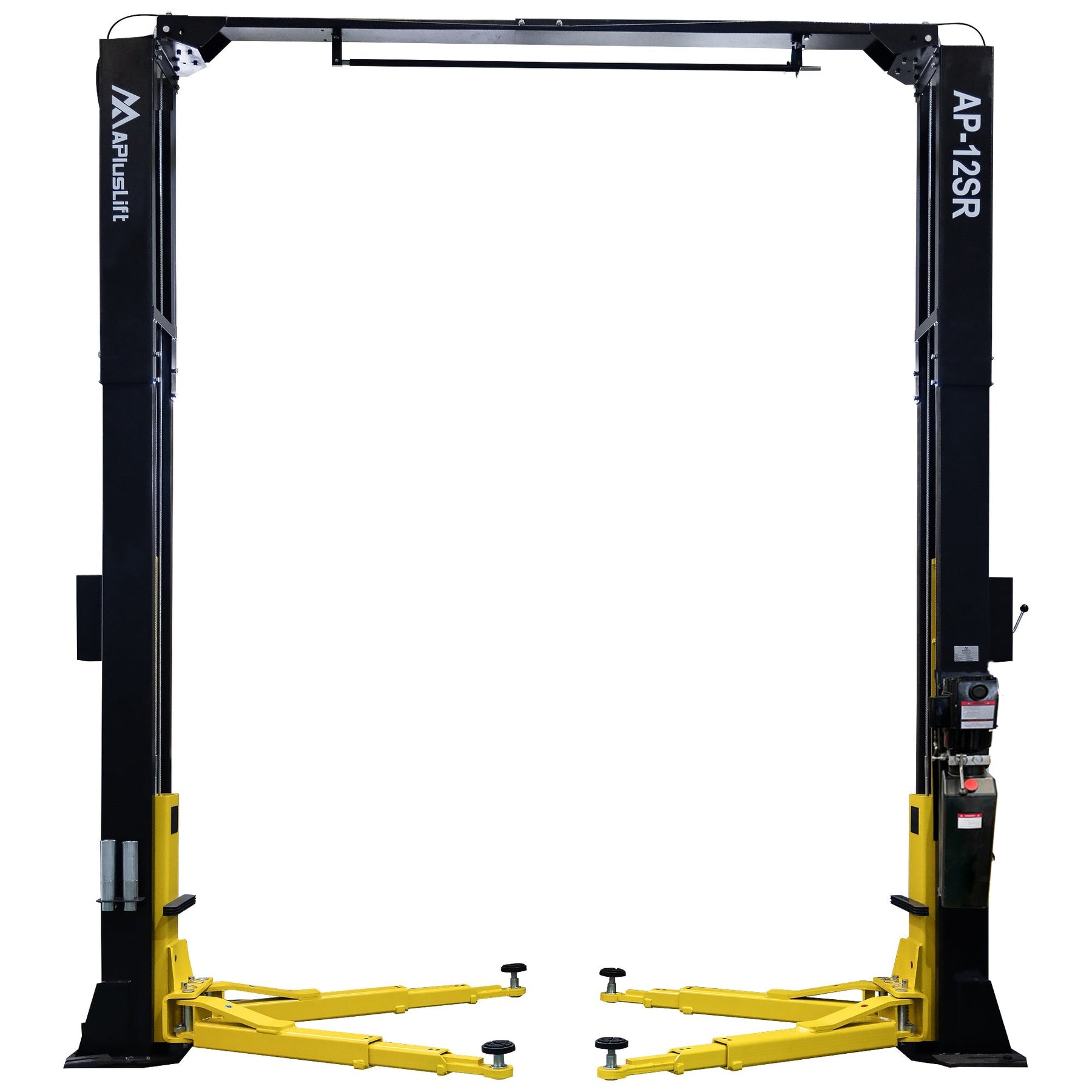

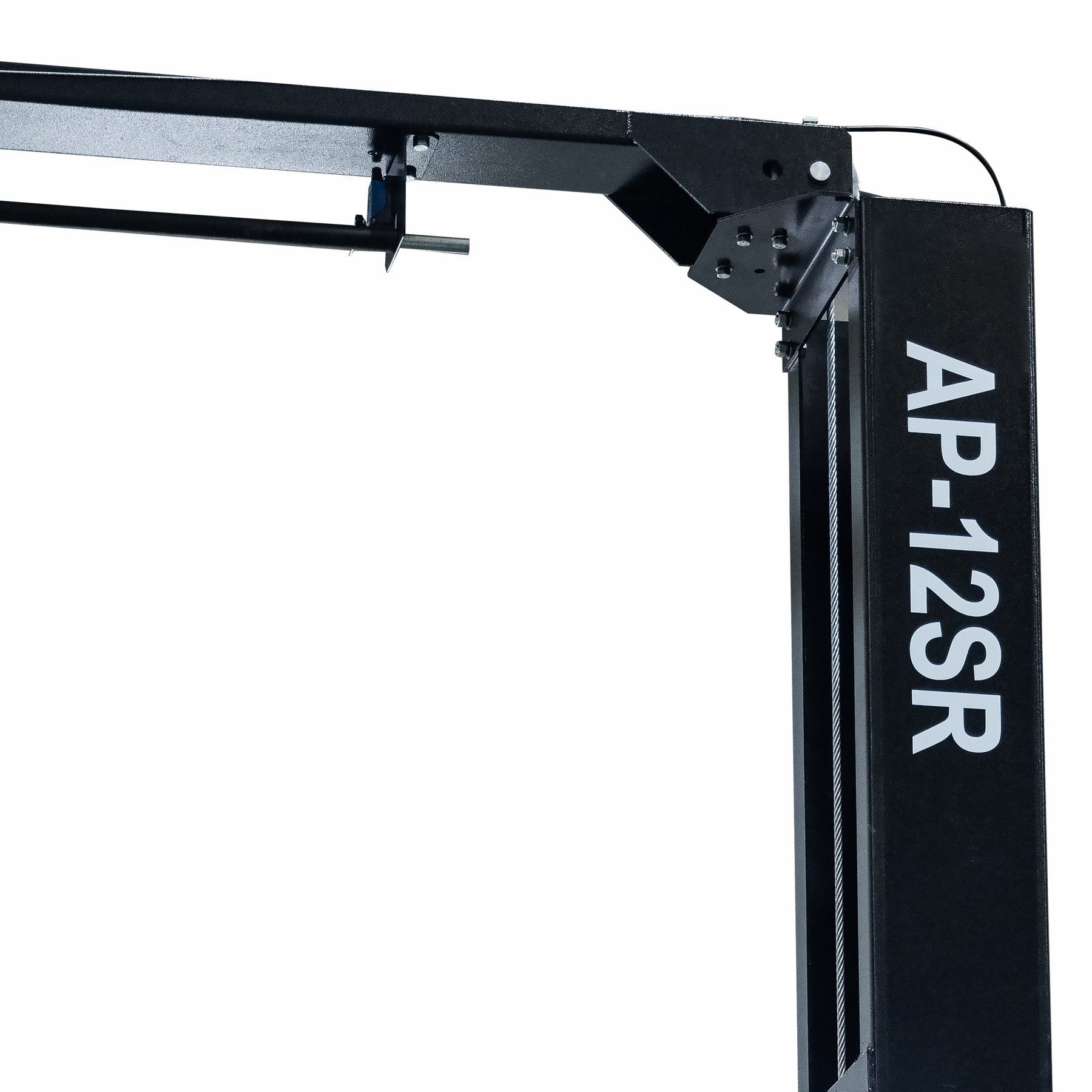

APlusLift AP-12SR is a 12000LB single point release overhead car lift (auto hoist) built with quality materials and good workmanship.

We are proud to offer an industry leading 3-year warranty for all parts (a $499 value)! We have all replacement and optional parts available for our lifts.

Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.

Warehouse Pickup Locations (Contact Us for $300 Discount): Tacoma (WA)

Frequently Asked Product, Order, and Shipping Questions and Technical Questions

Specifications
Model AP-12SR
(This Model)		 HW-10ASY
(for Comparison)
Manual AP-12SR Manual HW-10ASY Manual
Style Overhead Overhead
Lock Release Single Point Release Single Point Release
Warranty 3 Years (36 Months) 3 Years (36 Months)
Lifting Capacity 12,000 LB 10,000 LB

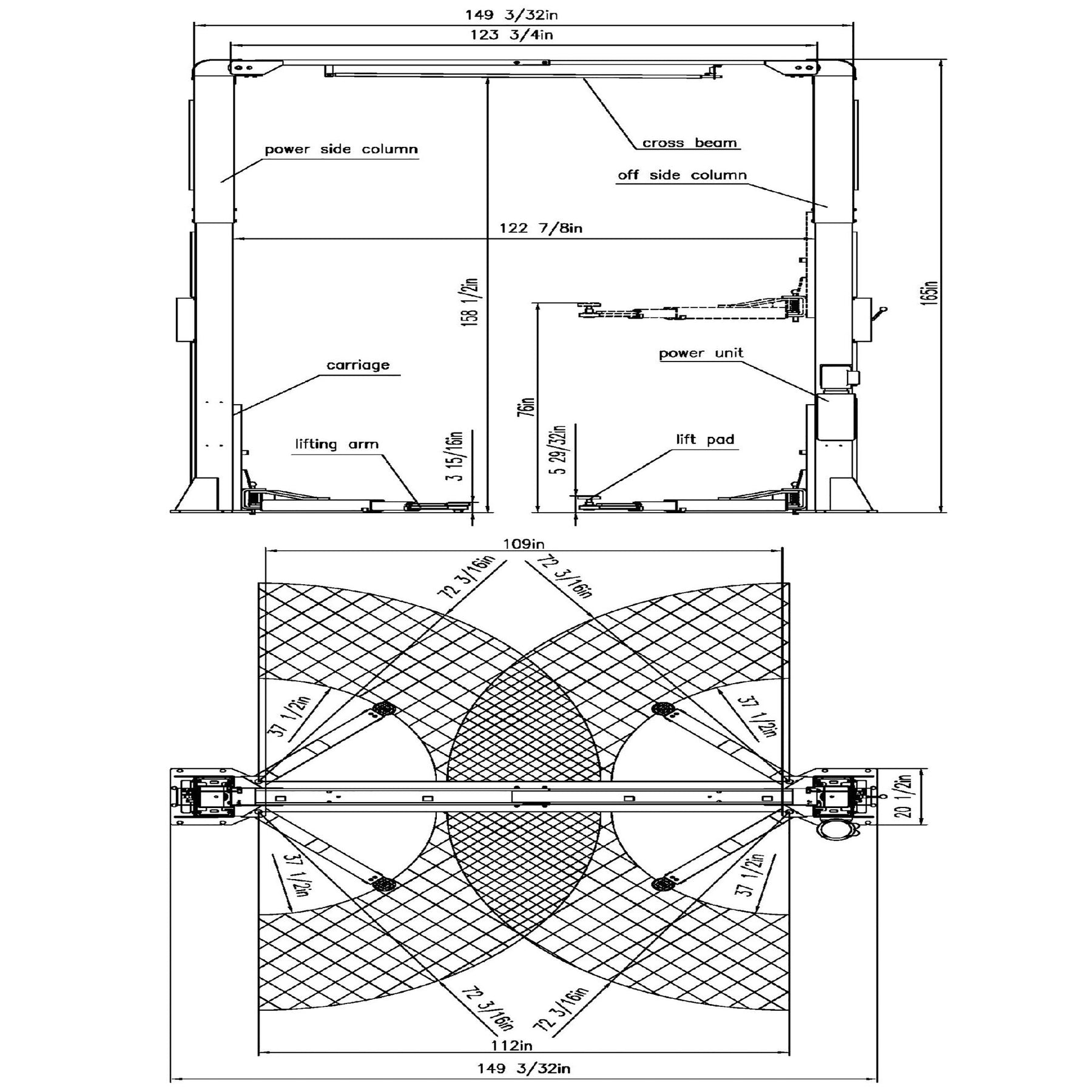

Overall Height 165" 141 3/16"
Overall Width 149" 139 1/8" (standard)
140 15/32" (post rotated)
Maximum Lift height with Truck Adapters 79" 81"
Maximum Lift height without Truck Adapters 70" 75"
Minimum Height of Adjustable Pads from Ground 4" 4"
Drive Through Width (Carriage to Carriage) 109" 104" (symmetric)
97" (asymmetric)
Column to Column Width 123" 113" (symmetric)
107" (asymmetric)
Column Cross Section 14 3/8"L x 7 13/16"W 11"L x 7"W
Driving Mode Dual hydraulic cylinders, direct drive Dual hydraulic cylinders, chain drive

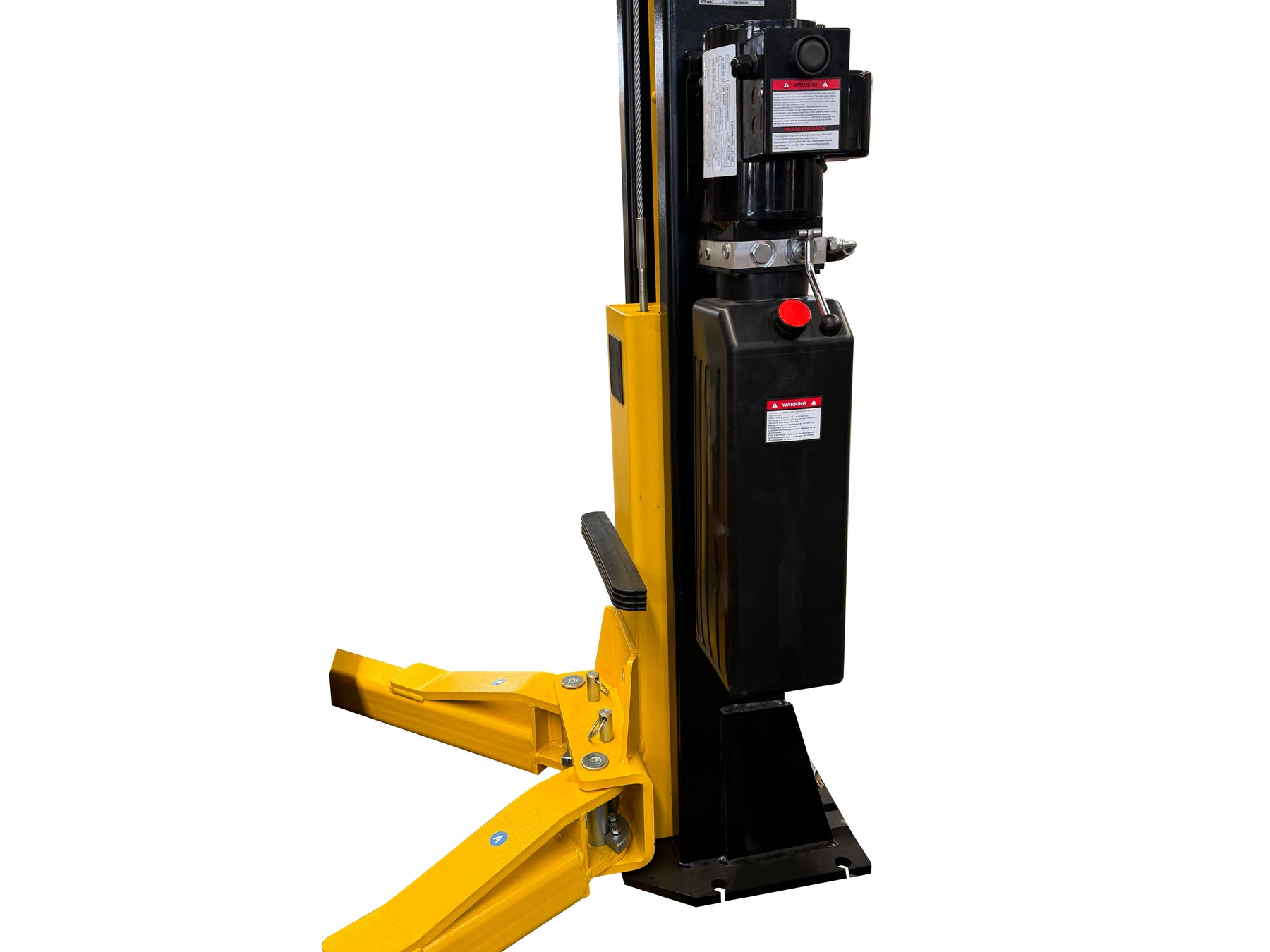

Motor 220V Single Phase 3HP with Inverter Motor (recommend a 30A breaker) 220V Single Phase 3HP 10A (recommend a 30A breaker)
Hydraulic Oil 3-5 gallons AW32/AW46 (Not Included) 3-5 gallons AW32/AW46 (Not Included)
Time to full rise 75 seconds 50 seconds
Shipping Weight 2500 LB 1470 LB and 120 LB
Shipping package size 117"L x 22"W x 50"H
  • 113"L x 22"W x 40"H (Car Lift)
  • 38"L x 17"W x 14"H (2ft Height Extension Crate)
Arm Assembly Symmetrical Arm Assembly Combo (Symmetrical and Asymmetrical) Arm Assembly

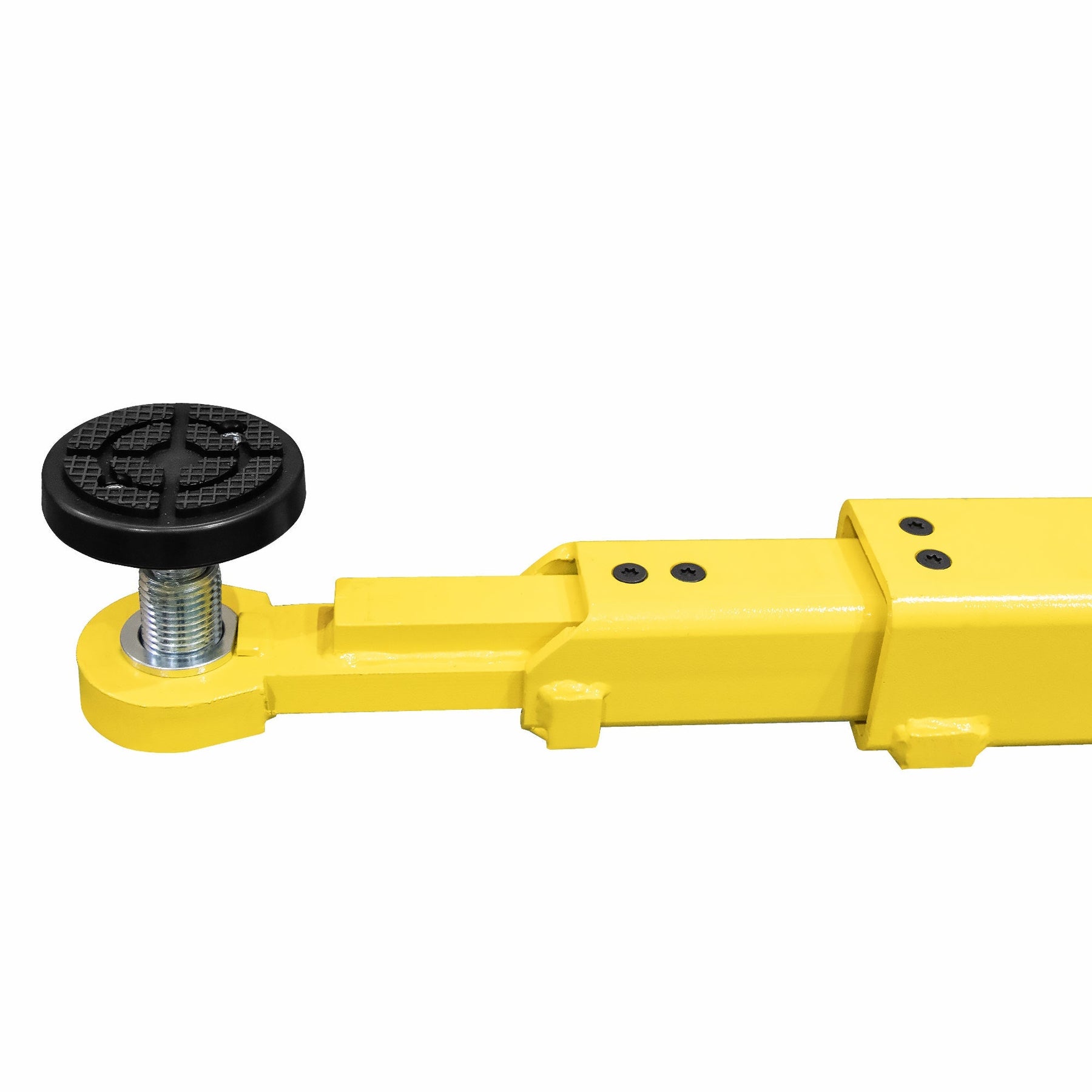

Front Arms Straight Front 3 Stage reach from 37 1/2" to 72 3/16" Straight Front 3 Stage reach from 22 7/8" to 42 5/8"
Back Arms Straight Rear 3 Stage reach from 37 1/2" to 72 3/16" Straight Rear 2 Stage reach from 33 5/8" to 52 7/8"

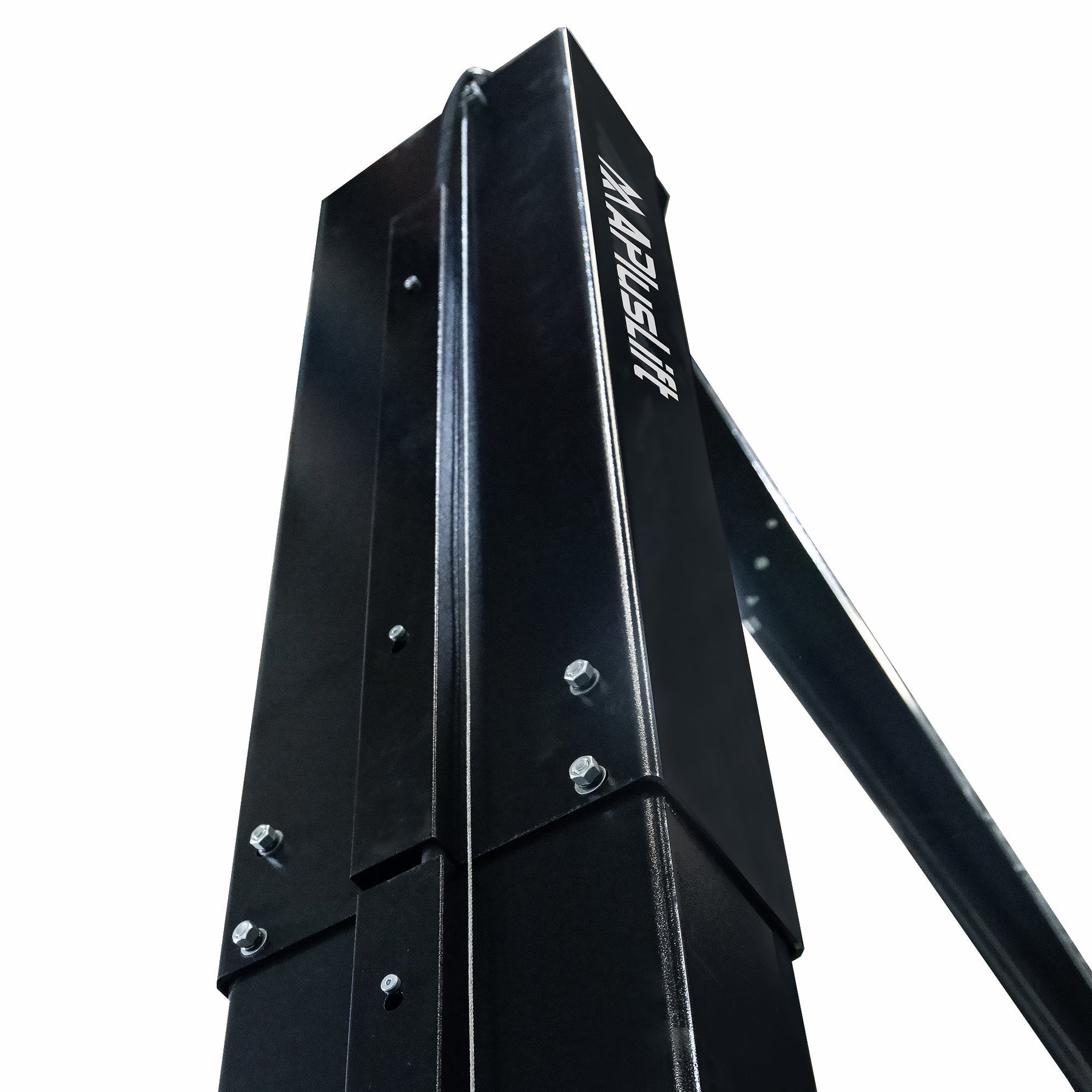

Column Steel Thickness 1/4" 13/64"
Carriage Steel Thickness 1/4" 15/64"
Carriage Yoke Thickness 3/4" 9/16"
Arm Steel Thickness 5/16" 15/64"

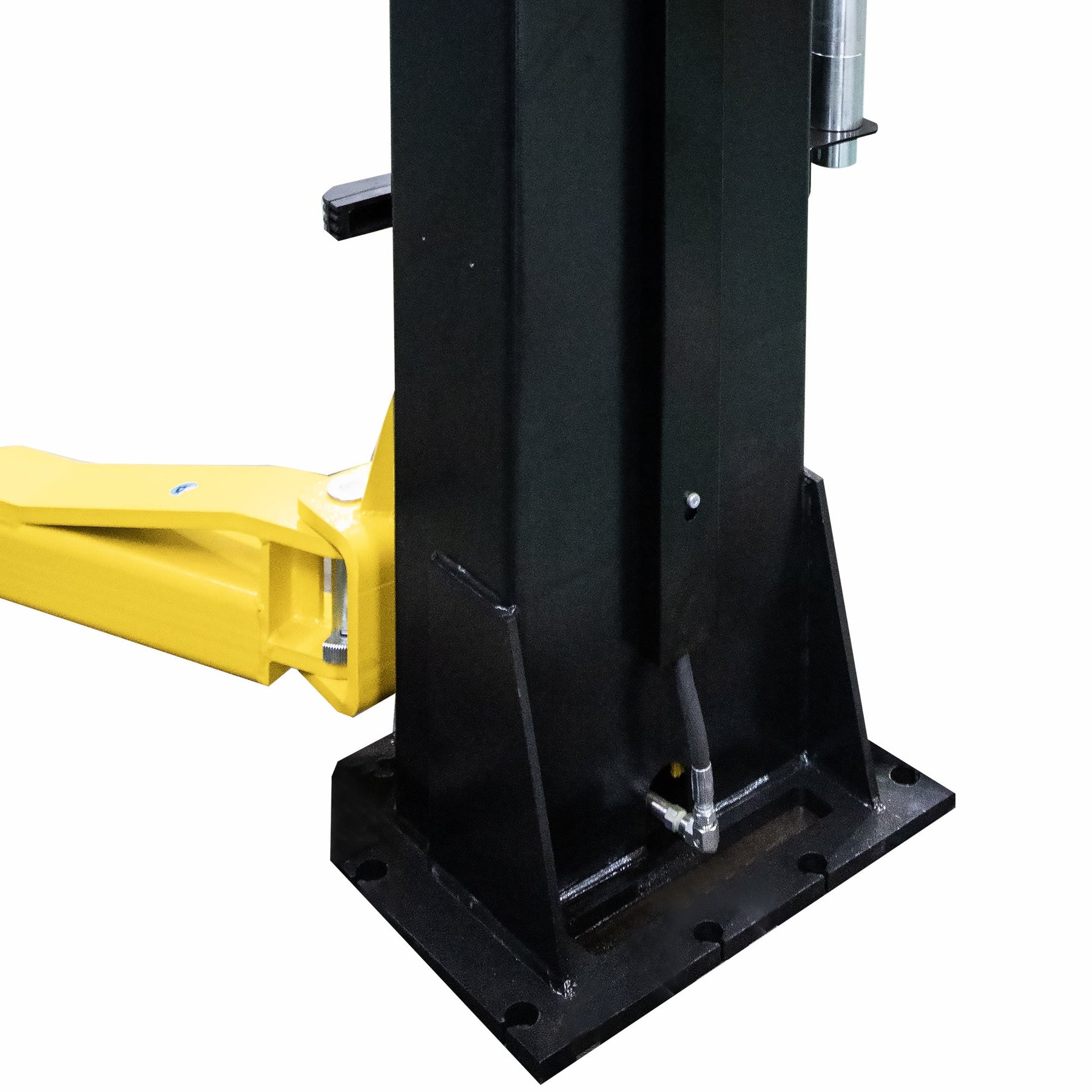

Base Plate Steel Thickness 13/16" 5/8"
Truck Adapters (Height Extensions) Two Sets: 3" Tall and 6" Tall One Set: 4" Tall
Other Parts Included

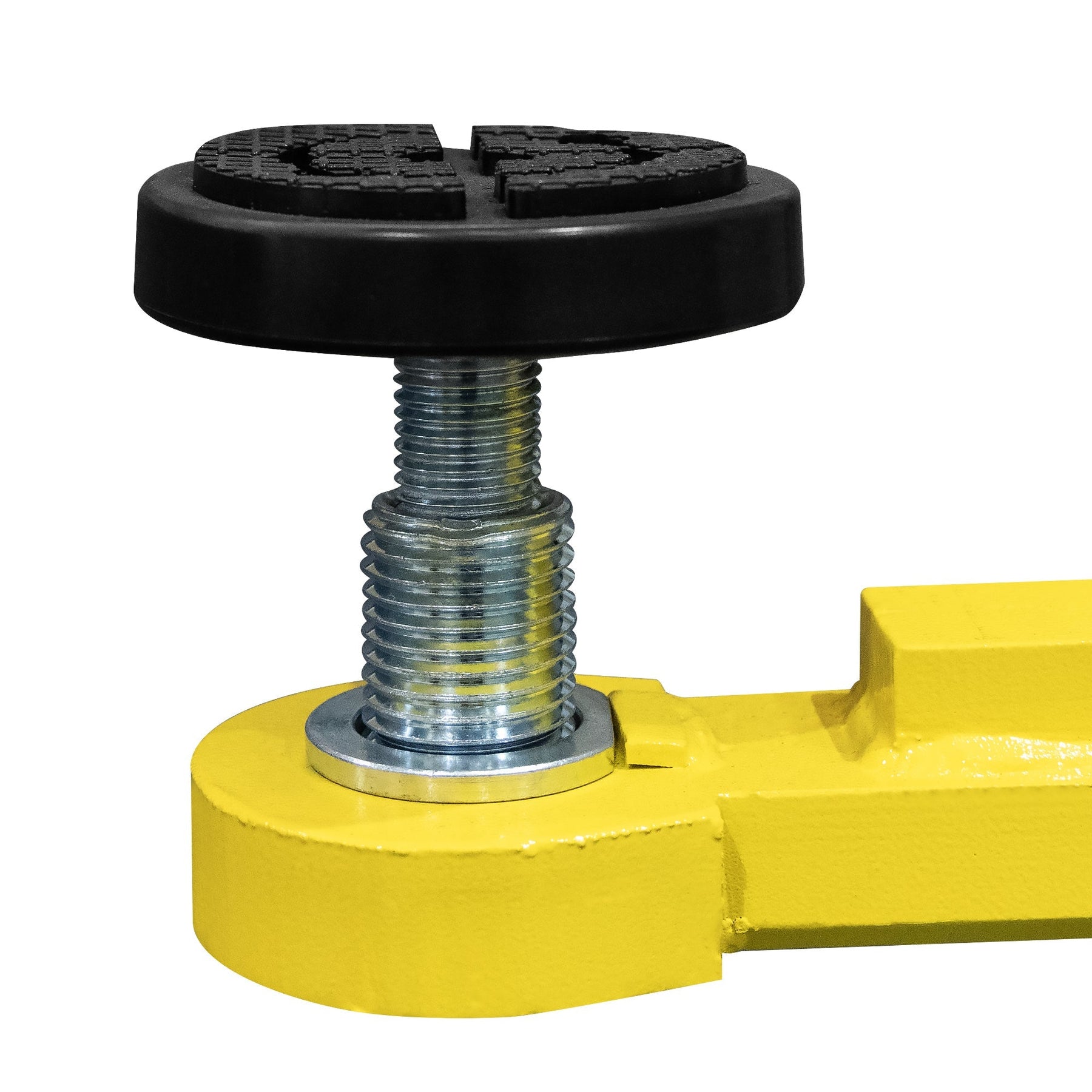

  • 4 adjustable screw pads
  • 10 anchor bolts
  • 10 shims
  • 4 pieces of adjustable screw pads
  • 10 anchor bolts
  • 10 shims
  • 2 tool trays
  • 2 toe guards
Optional Parts 2 3/4" and 6" Tall Truck Adapters
Concrete Requirement 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000LB and below)
Model AP-12SR
(This Model)		 HW-10ASY
(for Comparison)

Features

  • Direct drive mode
  • Durable hydraulic system
  • Easy to operate and maintain

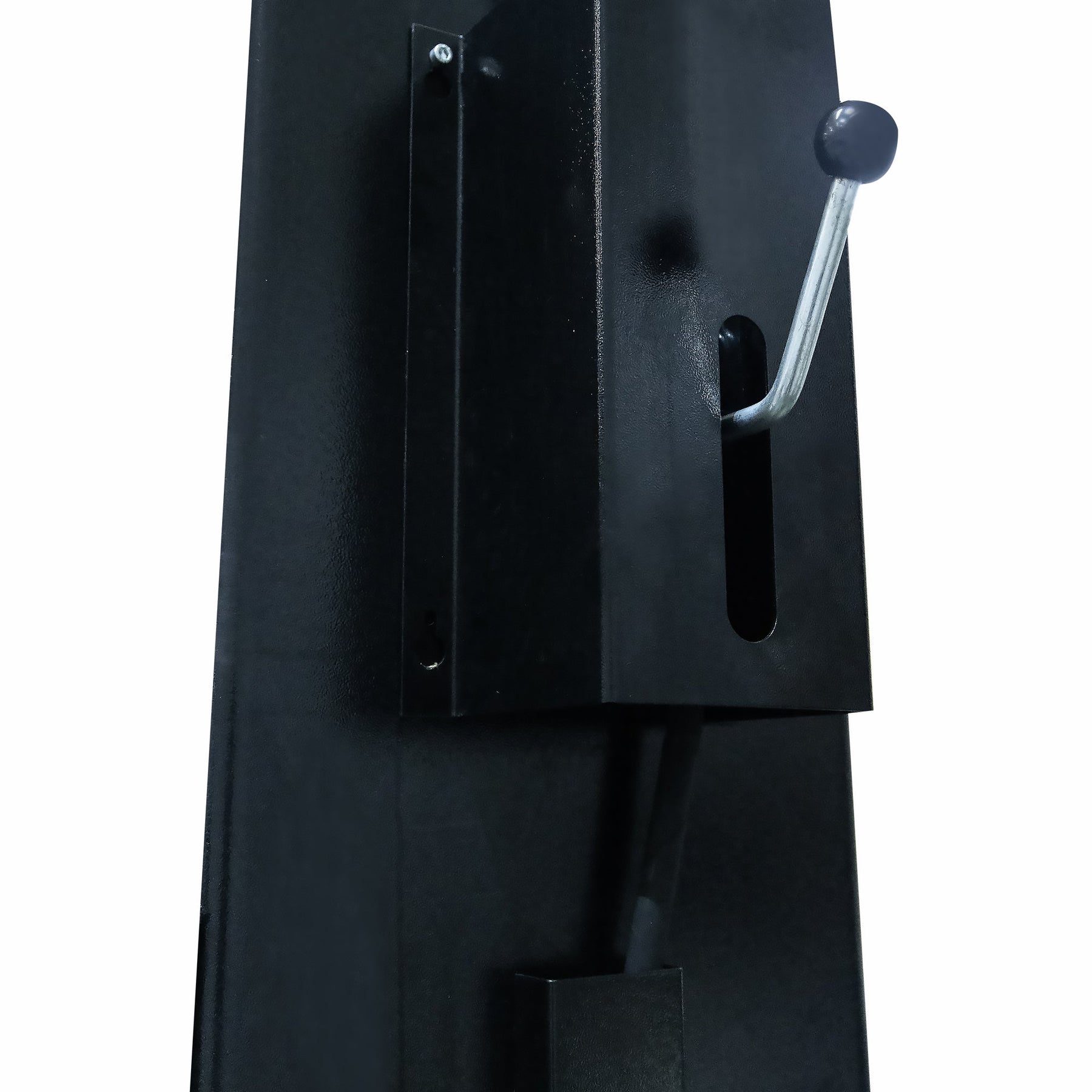

  • Single point safety lock release
  • Double Seal Rings Protecting PU Material
  • Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
  • Lifting operation by pressing "UP" button on motor
  • Manual lowering operation by pressing lever
  • Relief valve built in power pump to prevent overloading

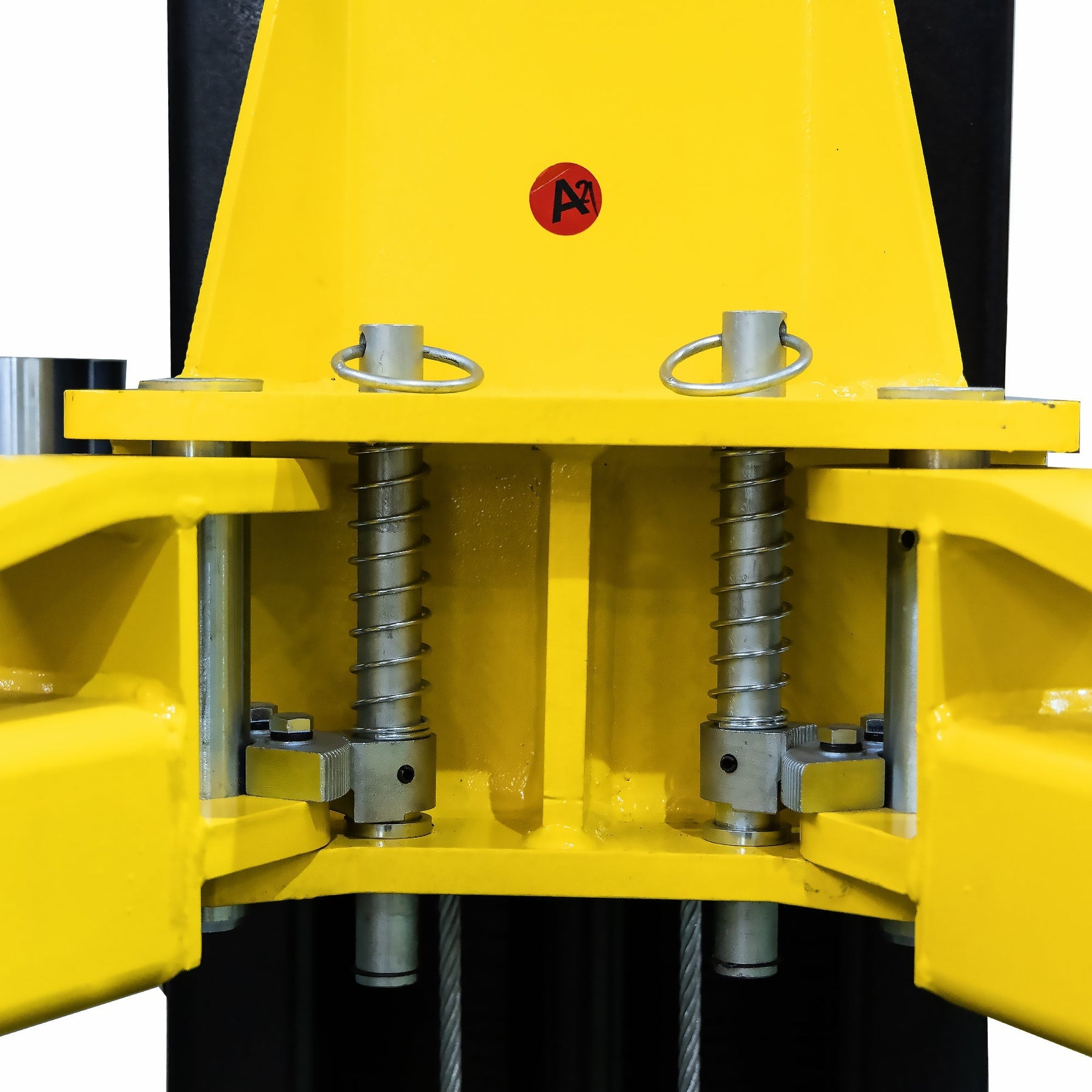

  • Automatic arm lock restraints
  • Relief valve built in power pump to prevent overloading

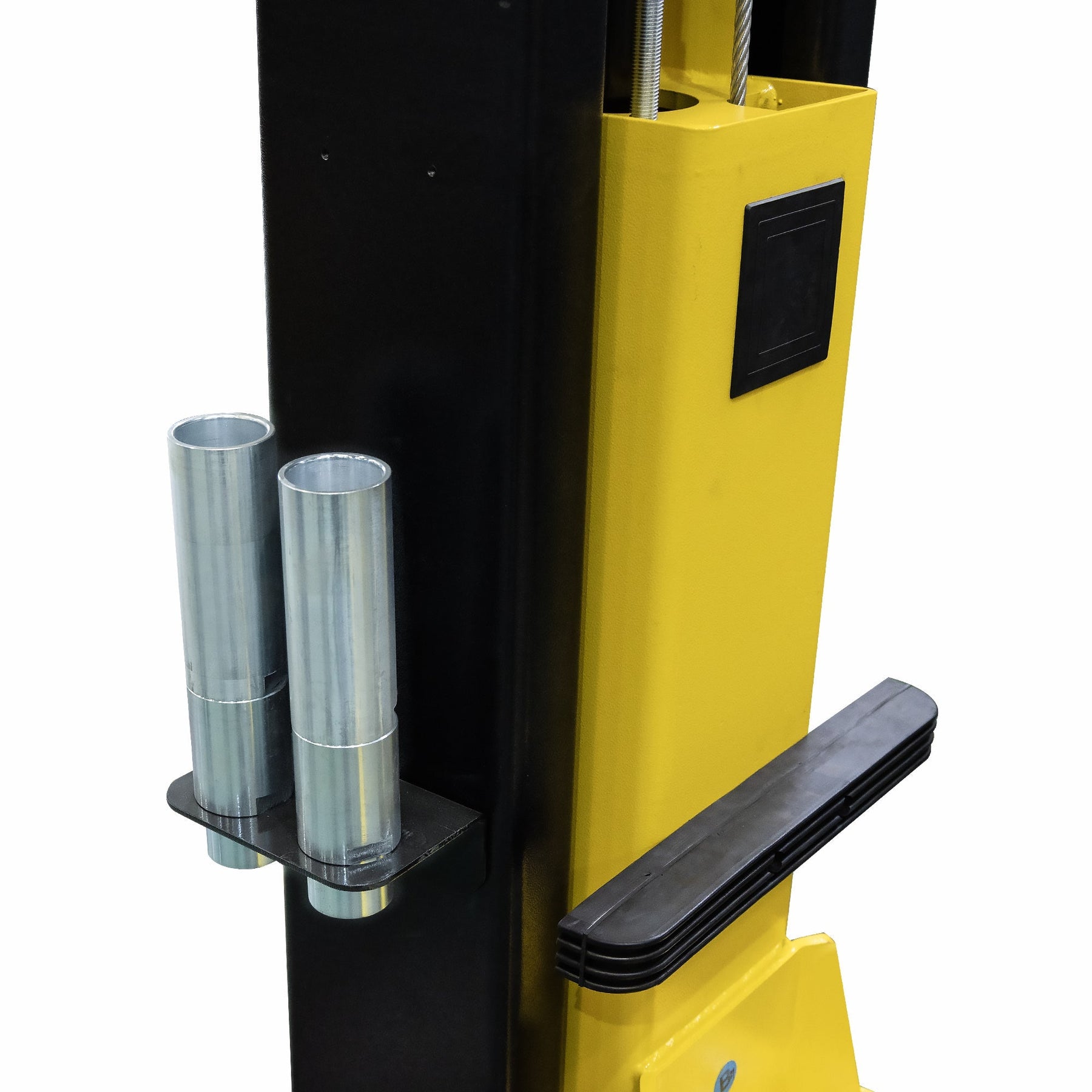

  • Door guards protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope

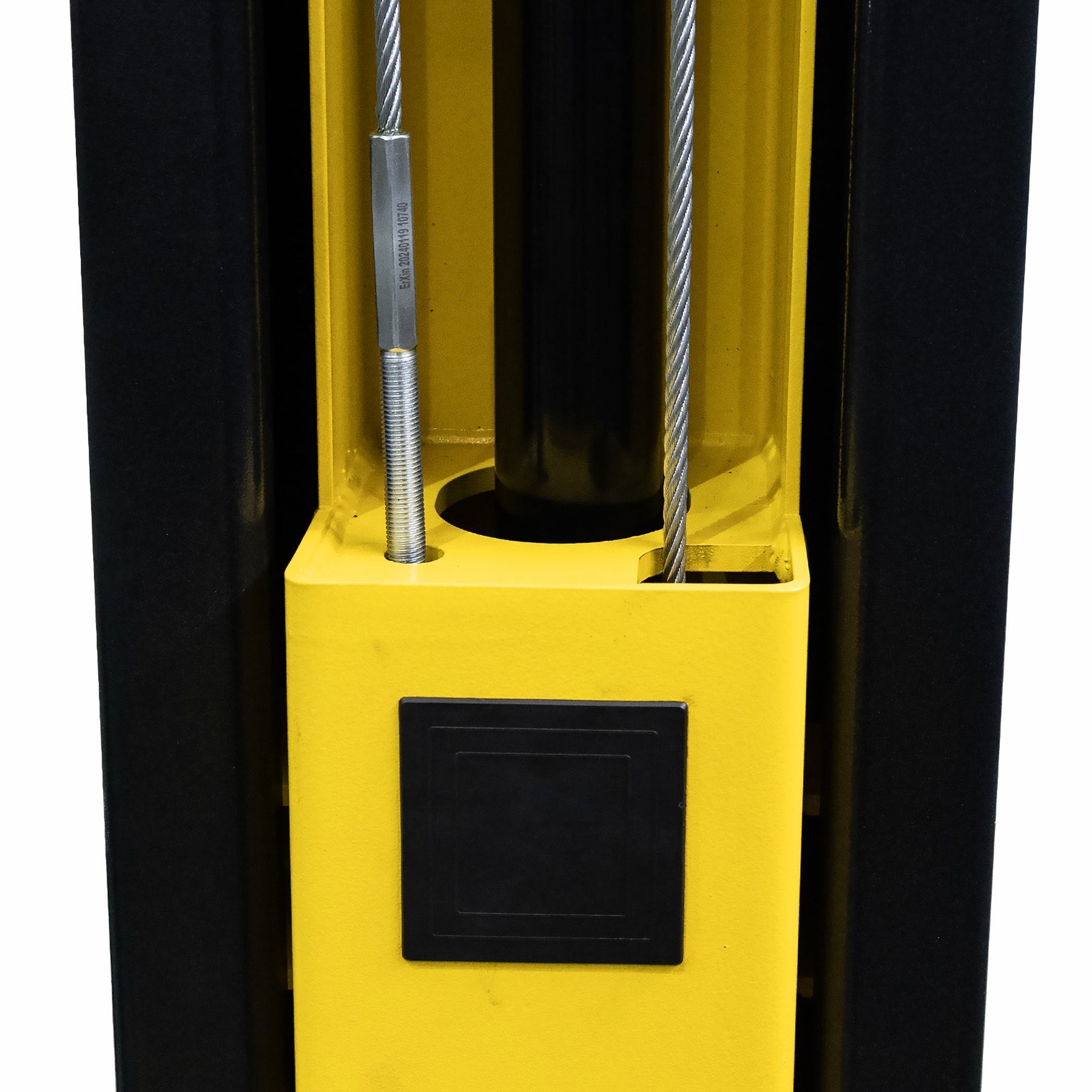

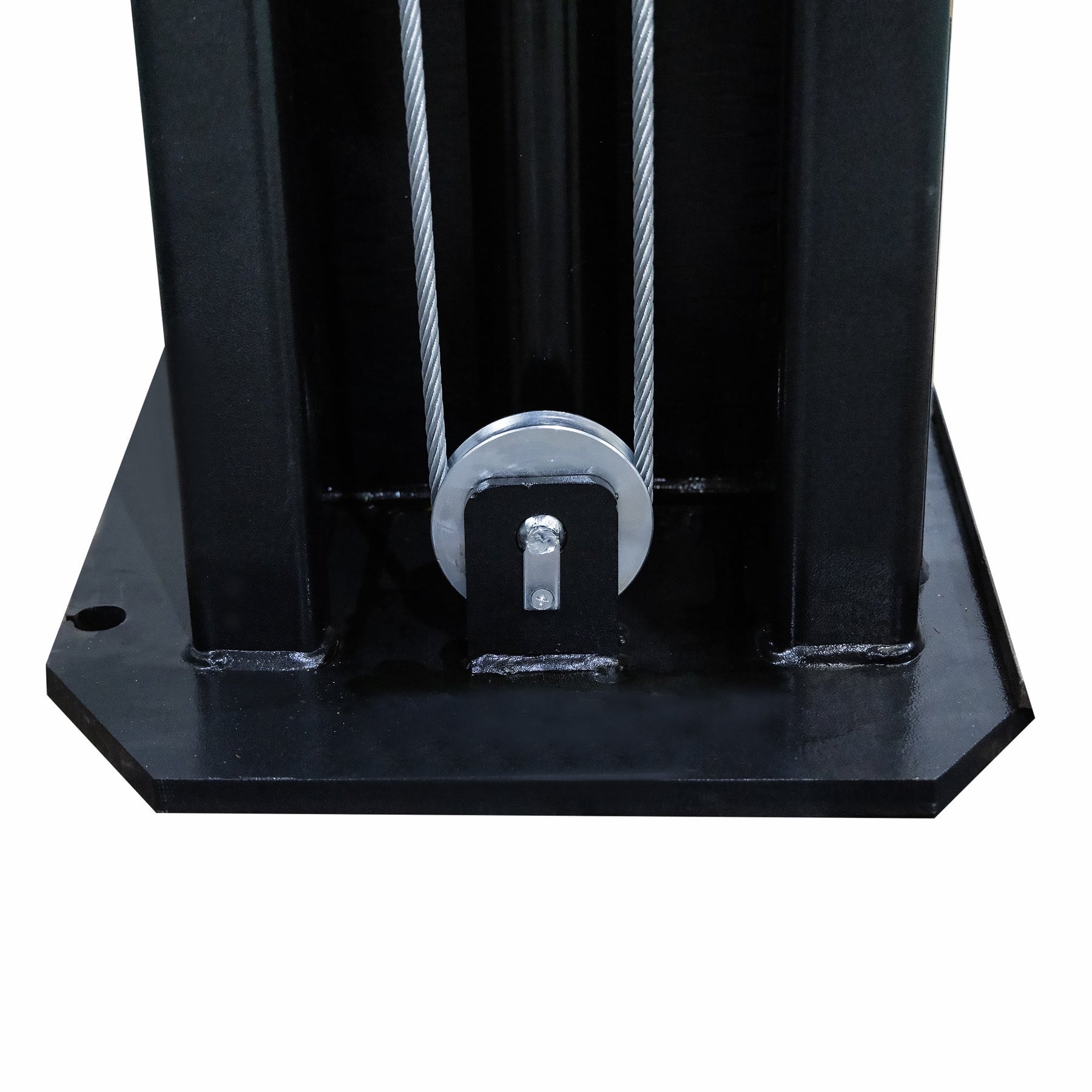

  • Heavy duty 3/8" diameter cable and 4 5/16" pulley that reduce high stress on synchronization process and increase cable life

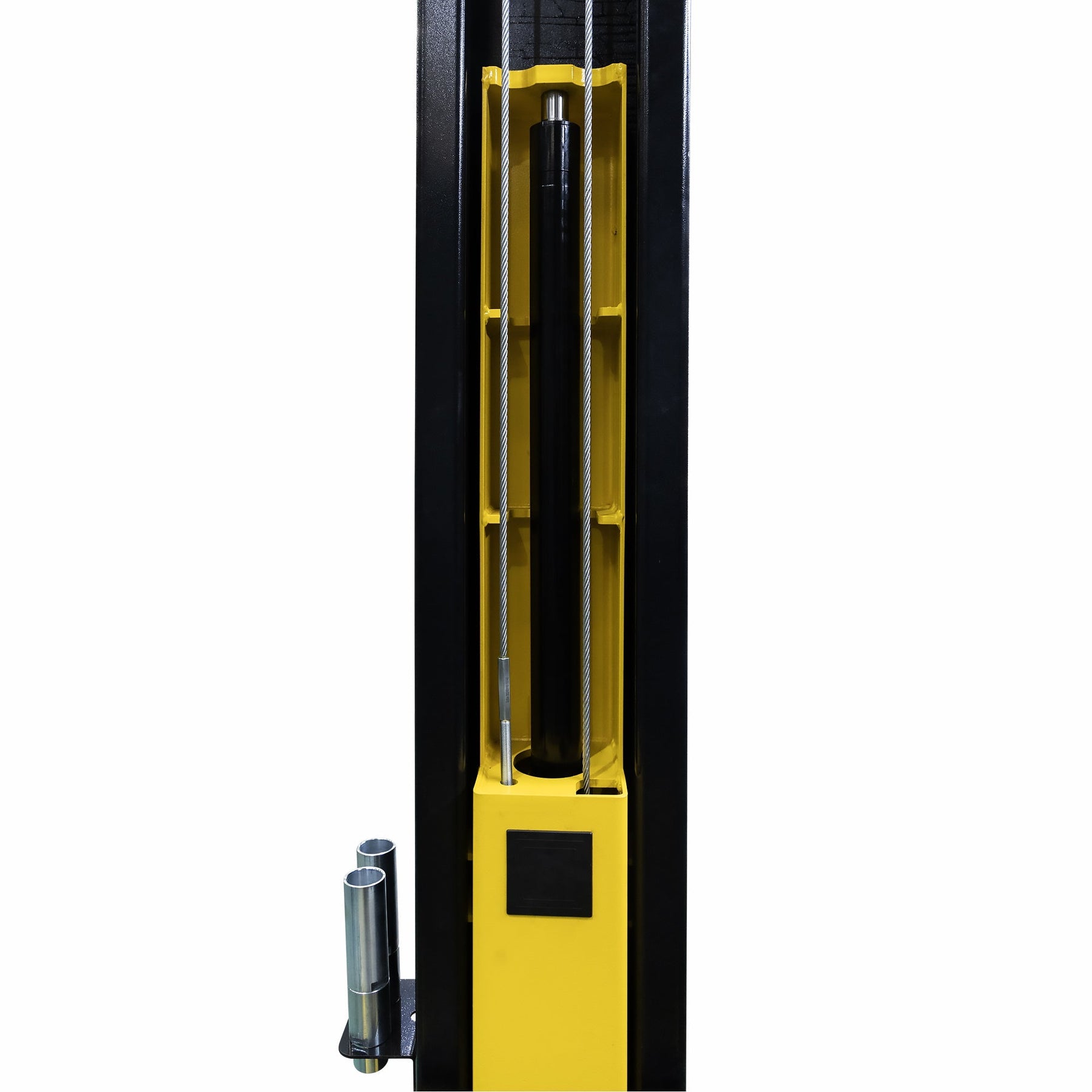

  • Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
