Valor - VP9KAC-TUX 9,000 lb 2 Post Clear Floor - Asymmetric
Regular price $2,375.00 Sale price $1,306.25 Save 45%
Shipping calculated at checkout.

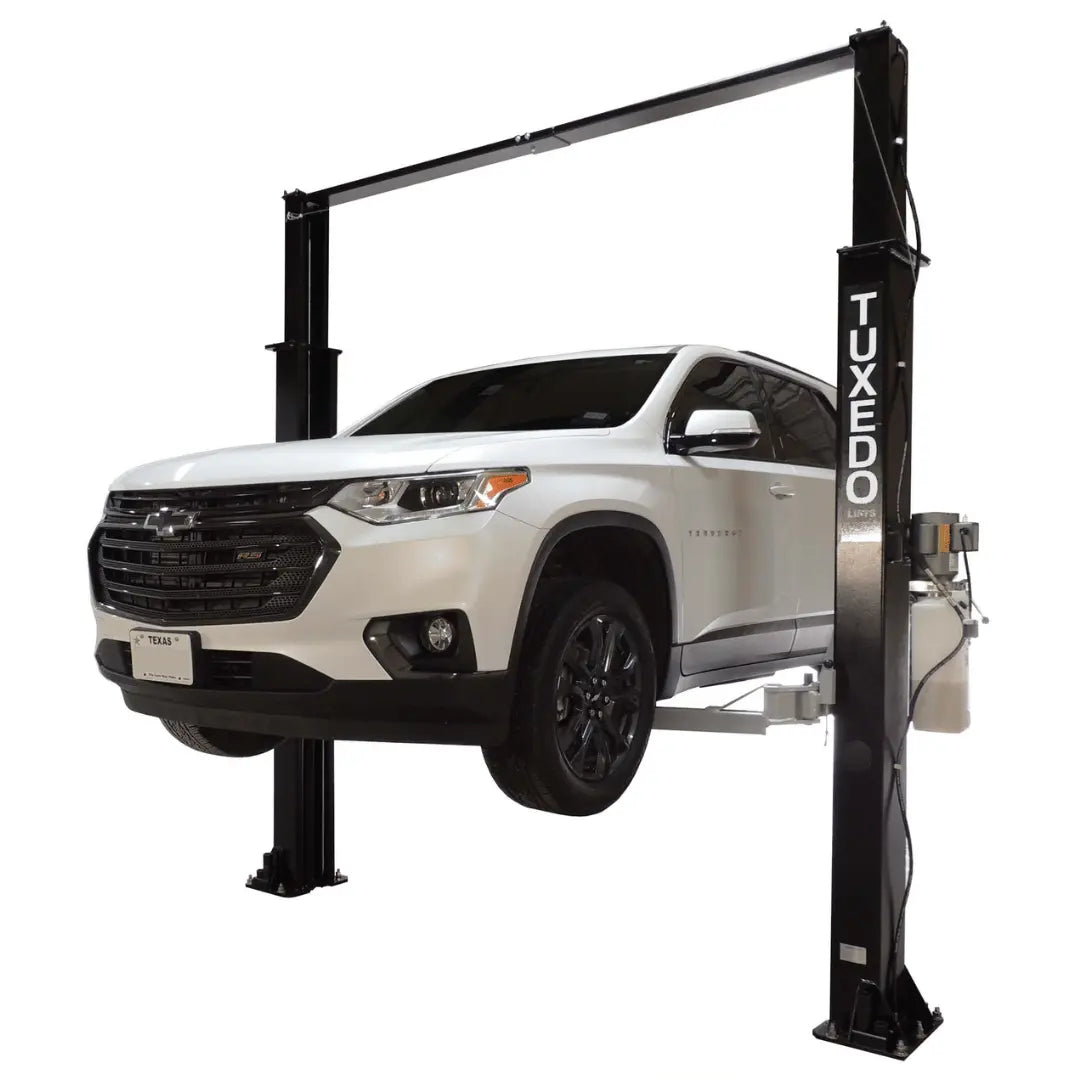

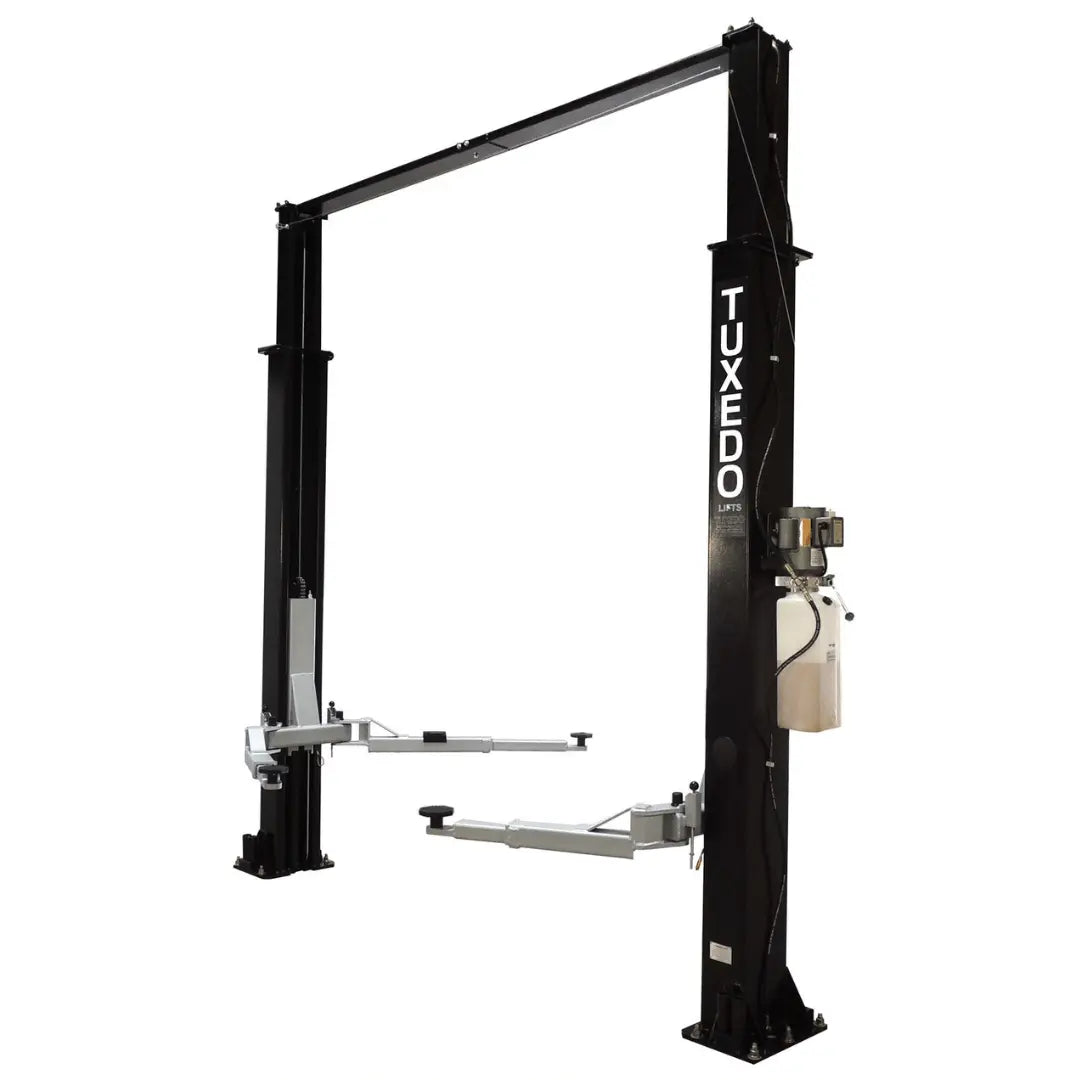

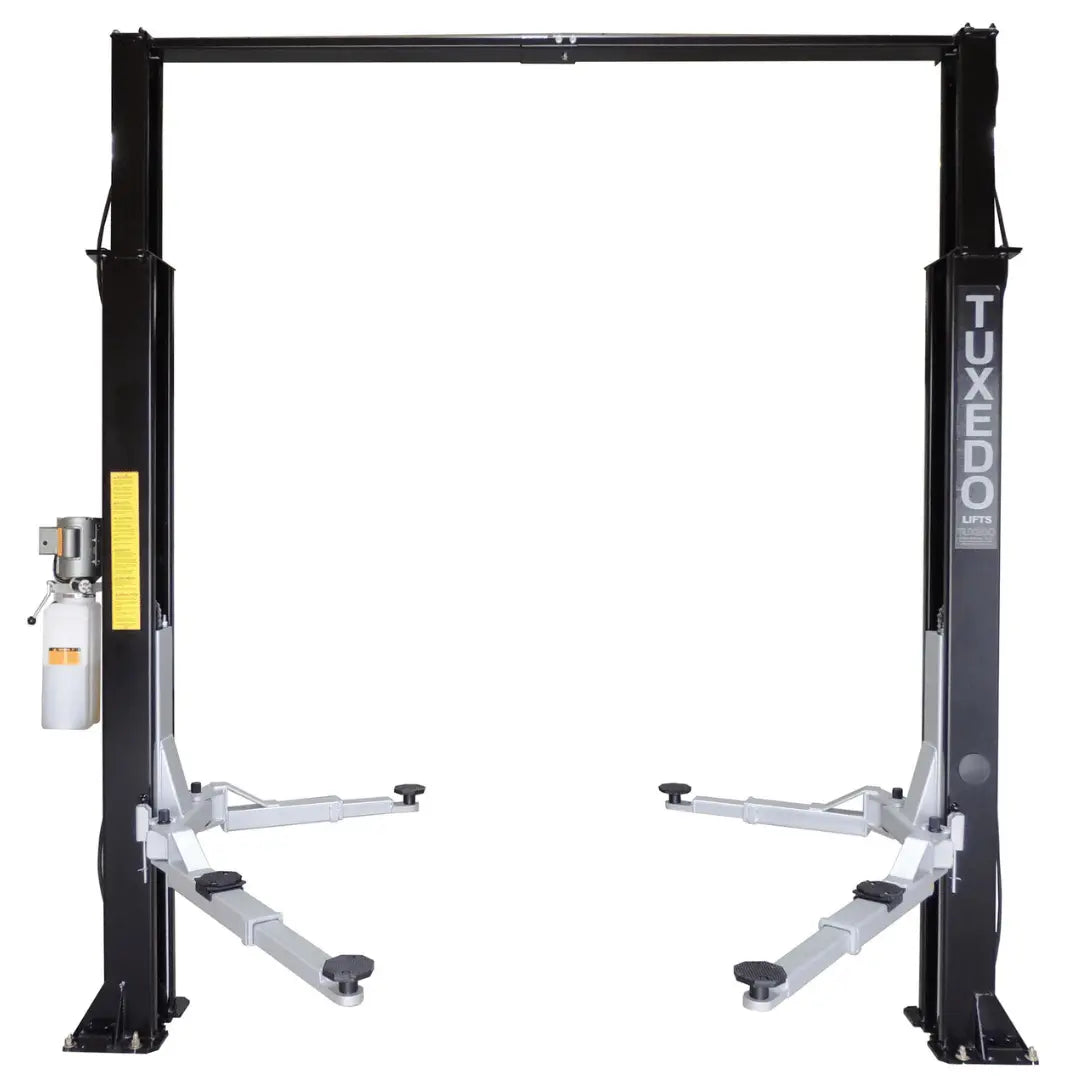

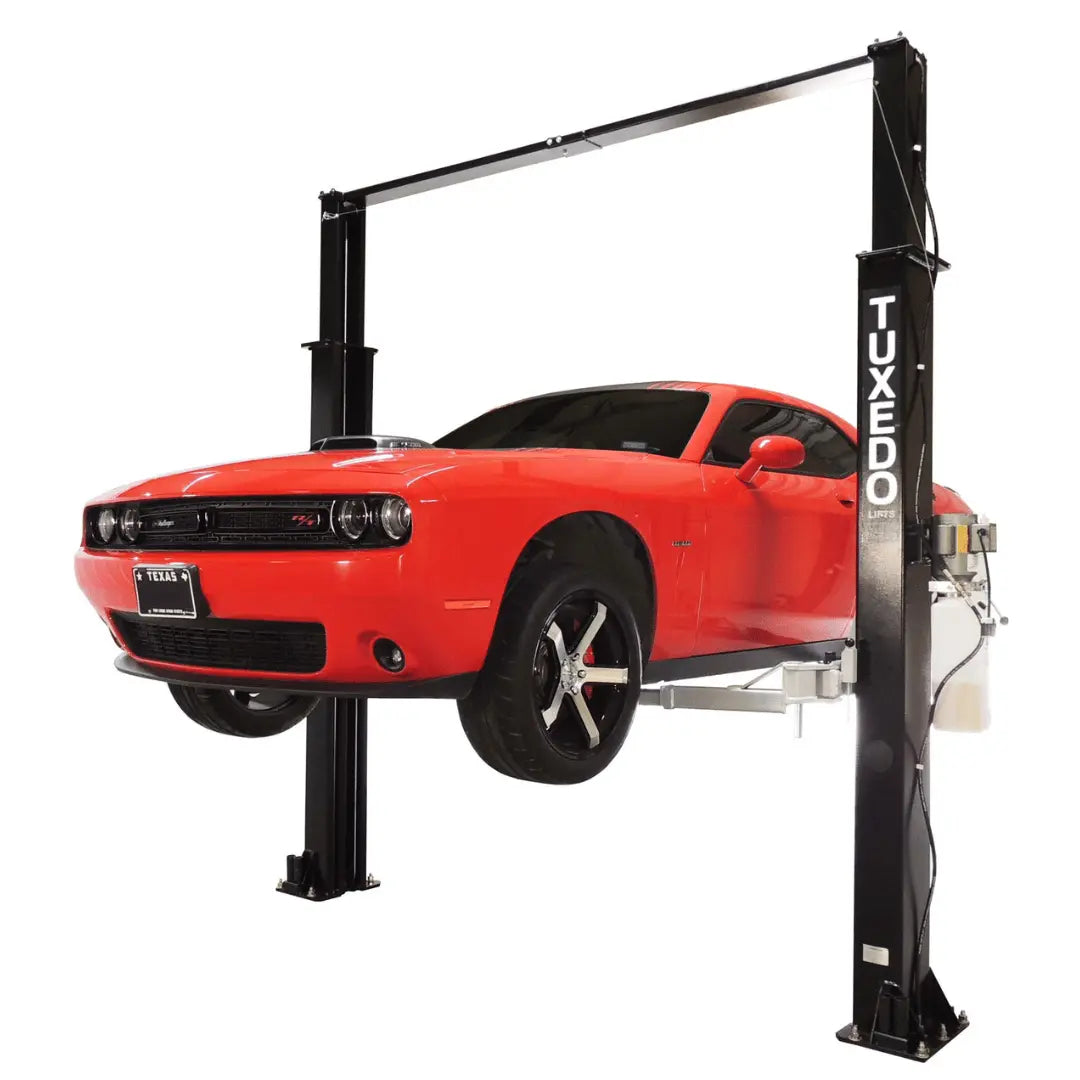

TUXEDO - TP9KAC-TUX Tuxedo Two Post Clear Floor
Product Features
- 9,000 lbs capacity

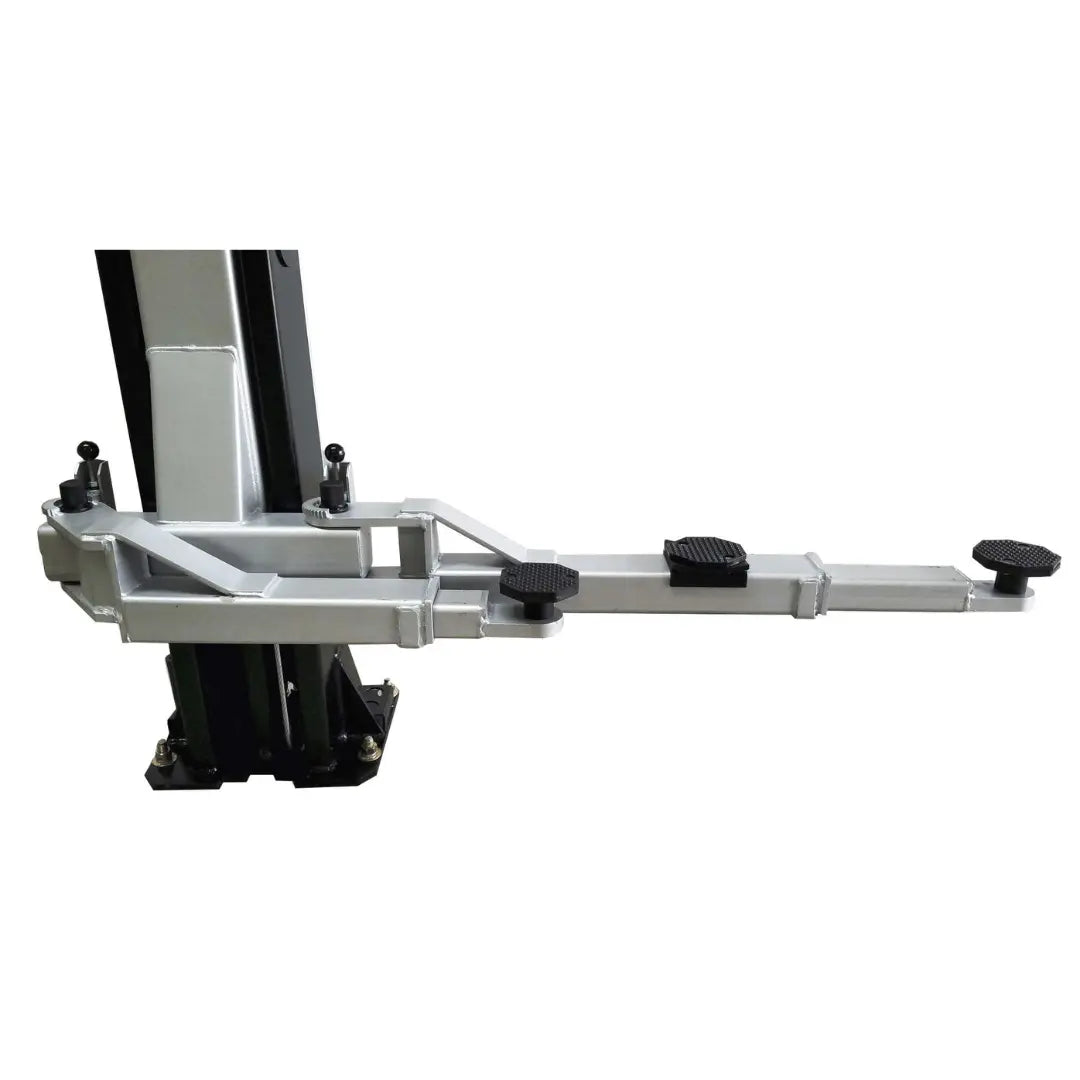

- Asymmetric Arms
- Chain Drive Cylinders
- Dual Point Lock Release

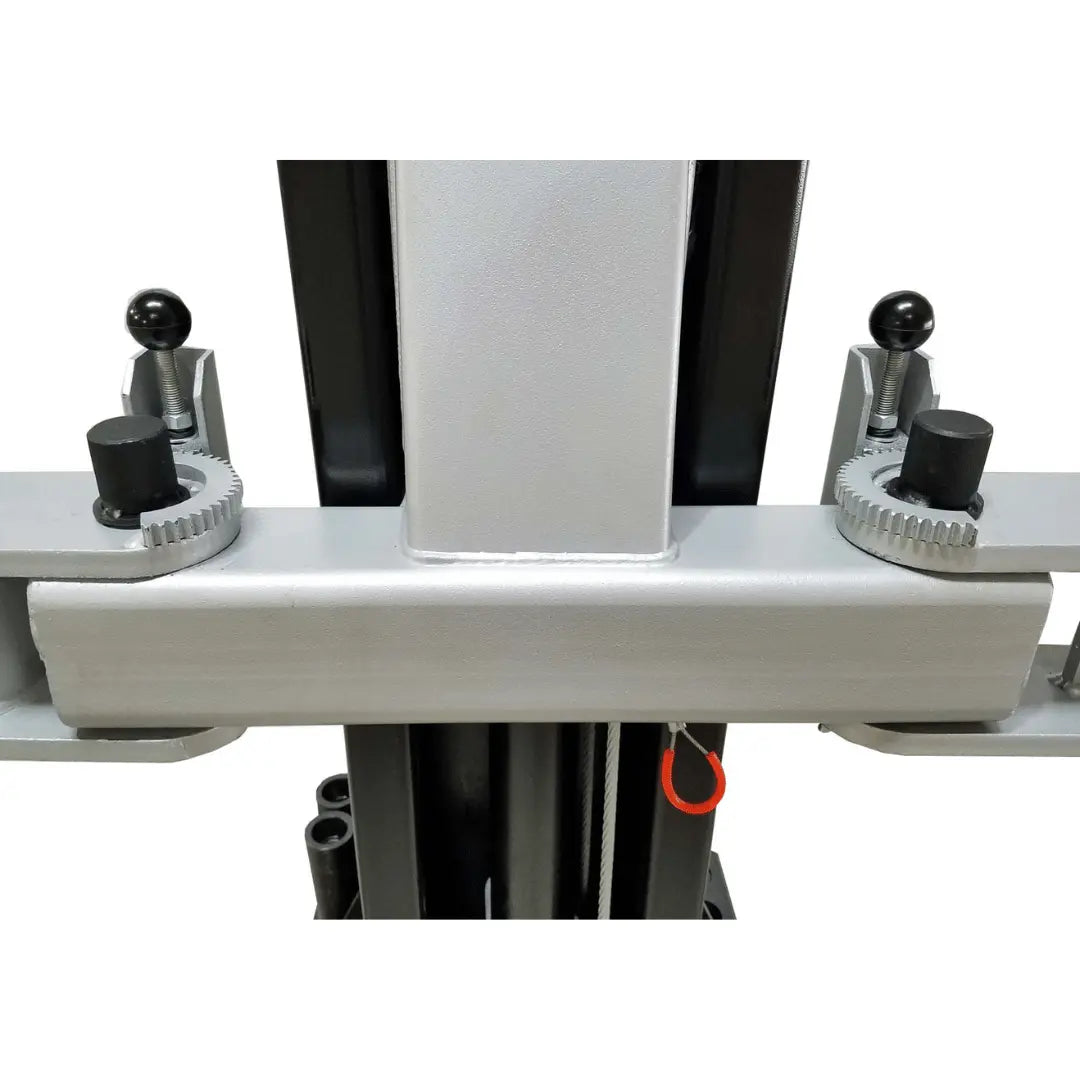

- Auto Arm Restraint System

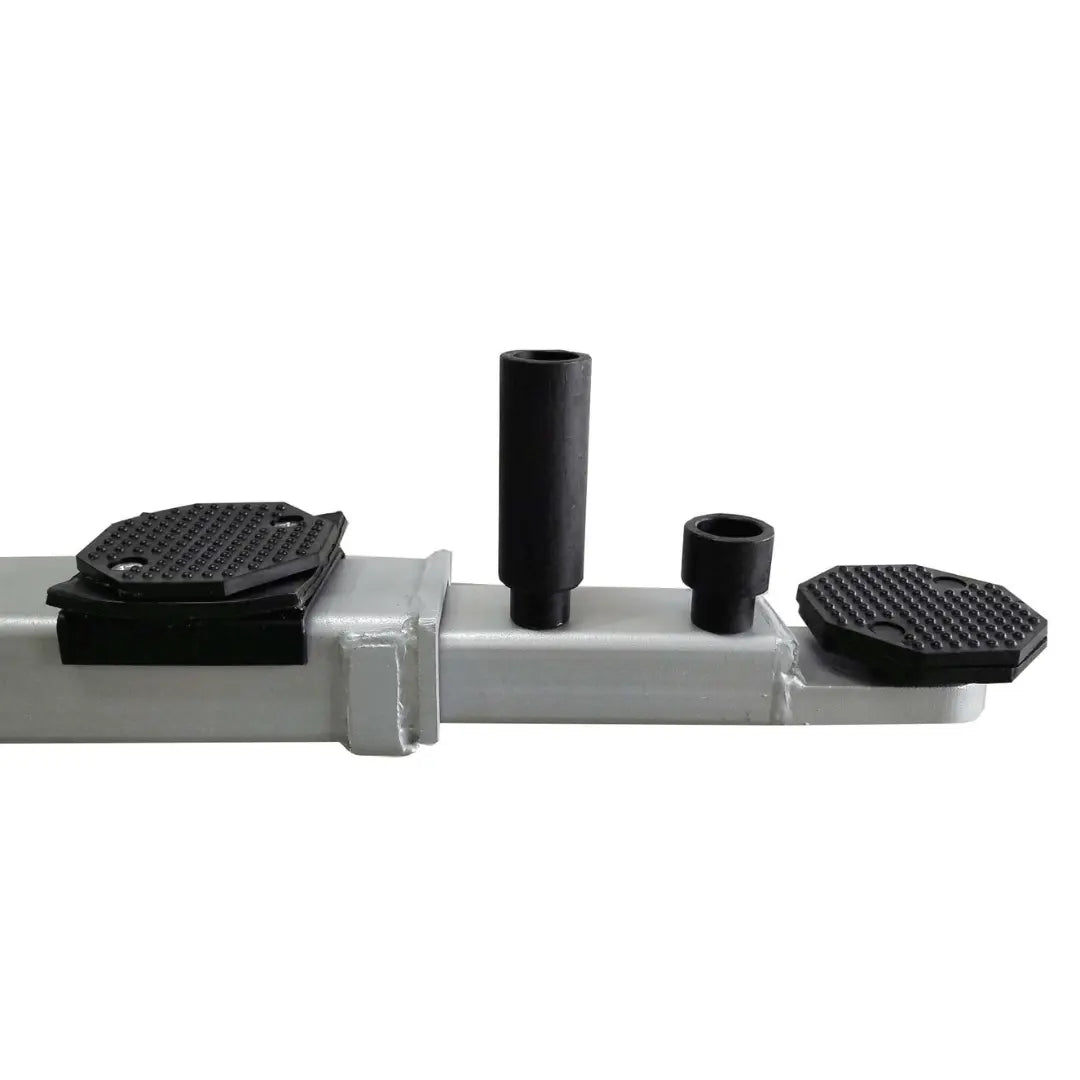

- Low profile drop-in Lift Pads
- SADDLE PAD ADAPTORS (1 Pair)
- Stackable Adapters Included
- Black color standard

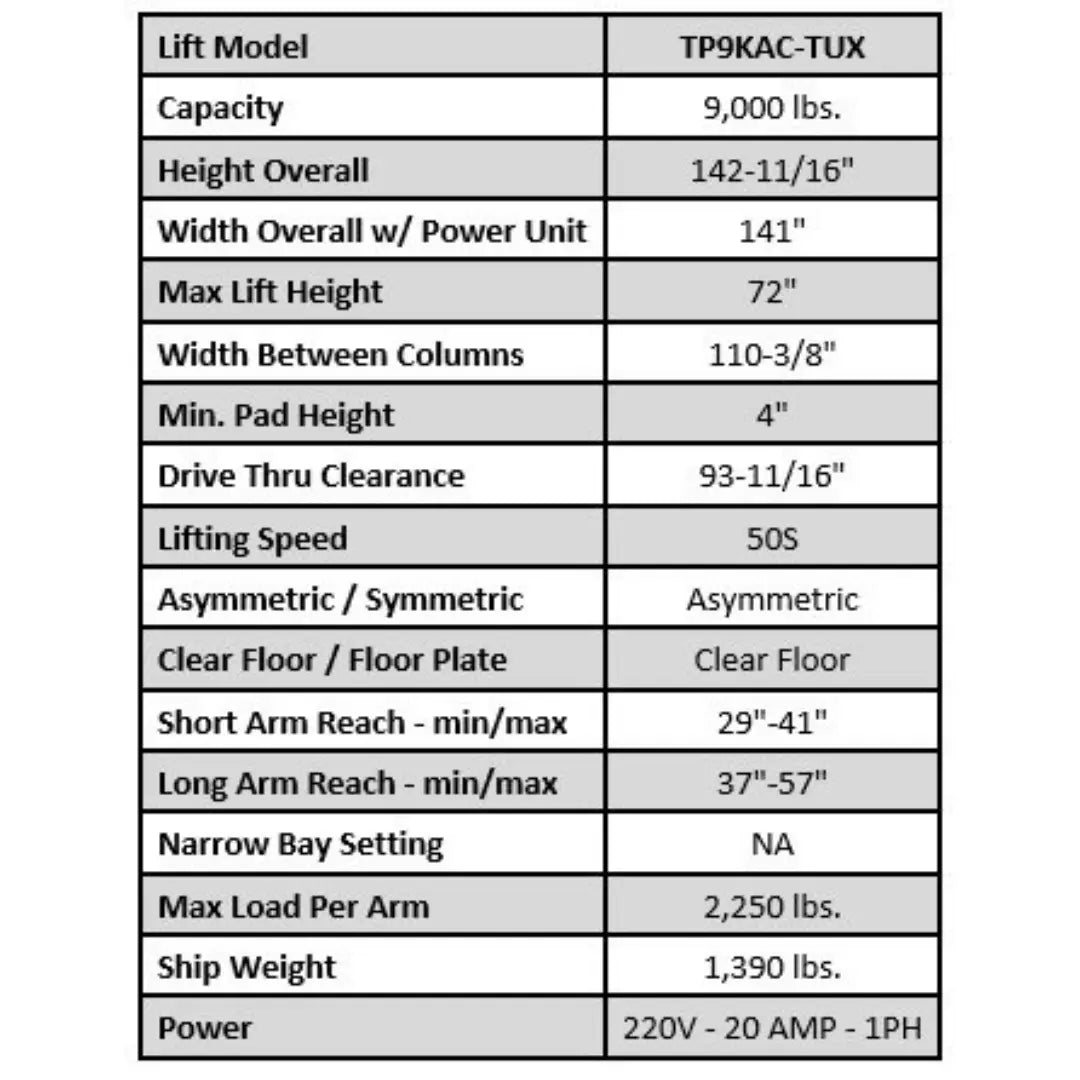

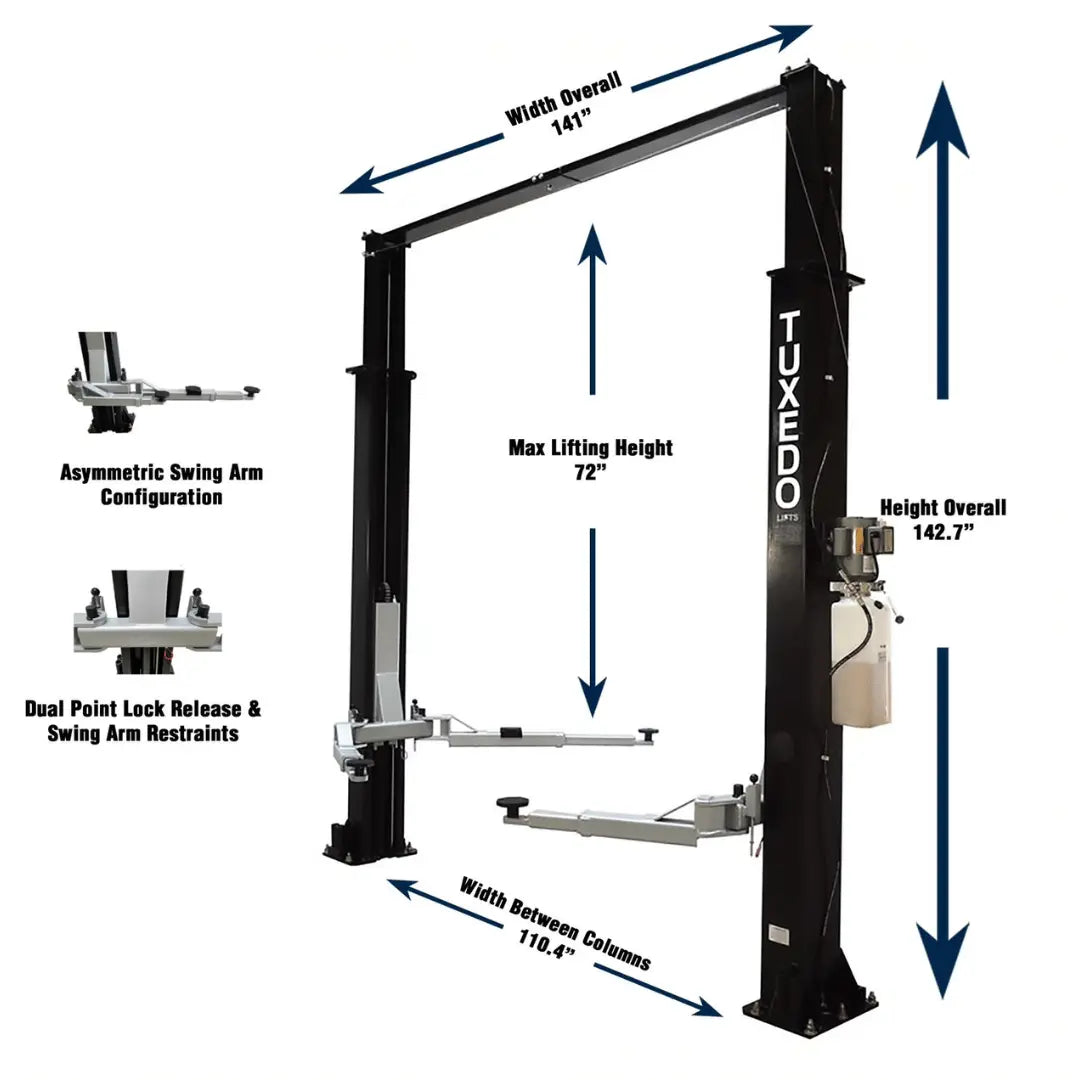

Product Specifications
| Lift Model | TP9KAC-TUX |
|---|---|
| Capacity | 9,000 lbs |
| Height Overall | 142-11/16ā³ |
| Width Overall w/ Power Unit | 141ā³ |
| Max Lift Height | 72ā³ |
| Width Between Columns | 110-3/8ā³ |
| Min. Pad Height | 4ā³ |
| Drive Thru Clearance | 93-11/16ā³ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Asymmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach ā min/max | 29ā³-41ā³ |
| Long Arm Reach ā min/max | 37ā³-57ā³ |
| Max Load Per Arm | 2,250 lbs |
| Ship Weight | 1,390 lbs |
| Power | 220V ā 20 Amp ā 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
Downloads
Brochure
Manual
Warranty
